840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control

840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control

IBR Type Roof Cold Roll Forming Machine

Roof Cold Roll Forming Machine PLC Control

IBR Type Double Layer Forming Machine

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Model Number:

Double Layer

Contact Us
Request A Quote
840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control
840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control
Product Details
Product Name:
New Design 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine
Dimension(L*W*H):
7.5m*1.6m*1.4m
Raw Material:
Galvalume, Galvanized
Production Capacity:
8-15m/min
Weight:
6300 Kg
Material Of Roller:
45# Cr Plated
Pow Supply:
380V 50Hz 3phases(customizable)
Machine Cutter Material:
CR12
Feeding Width:
1200mm
Control System:
PLC Control
Highlight:

IBR Type Roof Cold Roll Forming Machine

,

Roof Cold Roll Forming Machine PLC Control

,

IBR Type Double Layer Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price 2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836 online Video

2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836

Get Best Price
Good price Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price Double Layer Roll Forming Machine PLC Control online Video

Double Layer Roll Forming Machine PLC Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

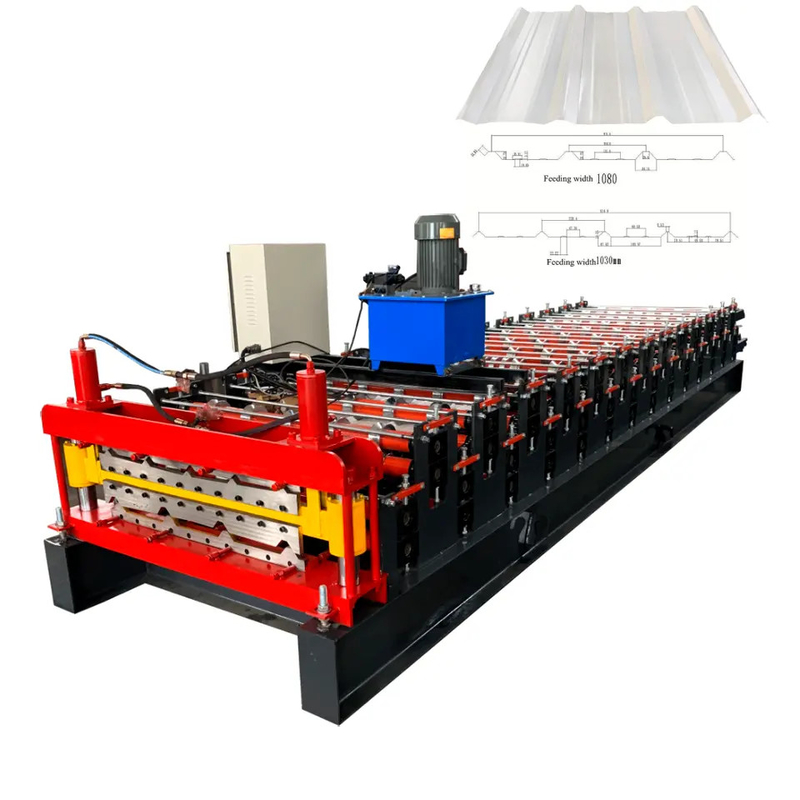

New Design 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine

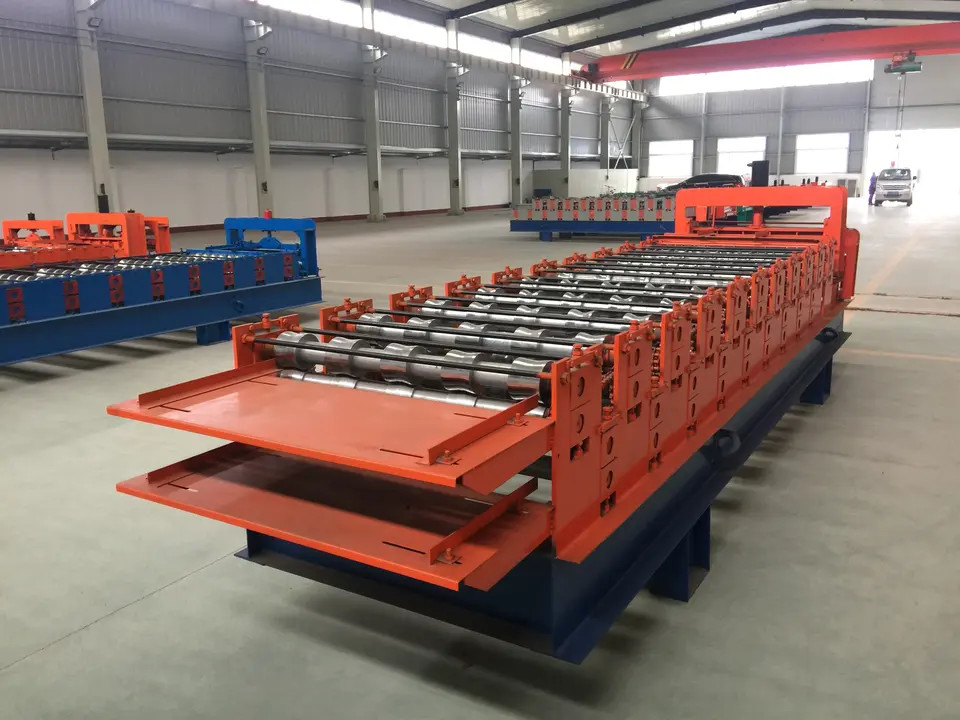

The picture shows the whole process of cold roll forming machine : MOTORIZED UNWINDING --- Feeding guide --- Roll forming --- Leveling --- Cutting --- Run out product stacker

The double deck corrugator was a solution to the problem of limited space in the customers production facility. Two sections produced in a two level over and under configuration gives the opportunity to produce different sections from a single machine.



New Design 840 900 Double Layer IBR Type Roof Cold Roll Forming Machine
1.This roll forming machine can form smooth and beautiful metal roofing sheet without any scratch on surface
2.Roll forming process: uncoiler, roll forming, forming step effect, cut to length.
3.Fully Automatic Control System with PLC.
4.Easy operation: Set length and quantity on the control panel,machine will auto working
5.Customized your own roll forming machine, We can design the machine according to your specification and profile drawing.


Specification

Dimensions
5600mm*1300mm*1500mm
Weight
 6300 kg
Main frame material
300H Steel
Thickness of plate in equipment
14mm
Roll forming row number
high layer:9 row (900), under layer: 11 row (840)
Forming shaft material
45# steel quenching treatment
Molding shaft dimension
Diameter of 70
Roll shape material
45# steel with hard chrome plating
Kind of drive
Chain wheel chain drive/hydraulic motor drive
Shaft Dia
inch 0.6
Power
6kw
Main motor power
4kw
Forming speed
8-10 m/min/hydraulic transmission 15 m/min
Material thickness
0.3-0.8mm



Guarantee



  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


.

Payment terms

  30% in advance as down payment
  70% is paid before the shipment is processed

Delivery

  FOB: Tianjin Xingang Port
  The Delivery Time: 30 days after the down payment is received.840 900 Double Layer IBR Type Roof Cold Roll Forming Machine PLC Control 0
