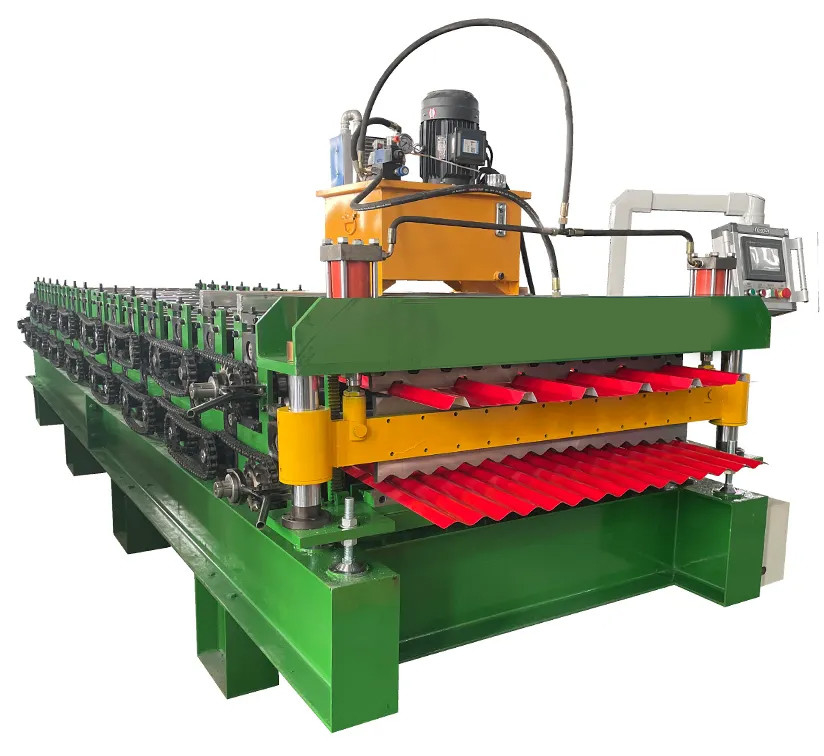

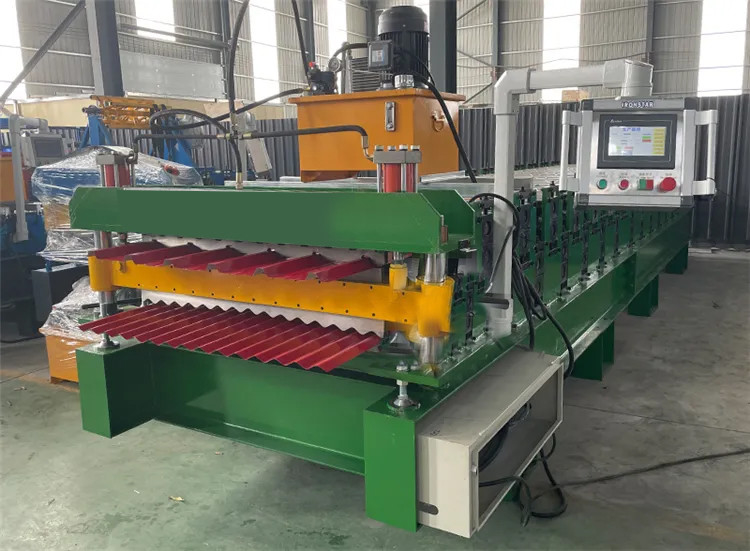

Ibr And Corrugated Double Layer Roll Forming Machine Fully Automated Plc Control

Ibr And Corrugated Double Layer Roll Forming Machine Fully Automated Plc Control

Double Layer Forming Machine Fully Automated

ibr roll forming machine Fully Automated

ibr roll forming machine Plc Control

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Model Number:

Double Layer

Contact Us
Request A Quote
Ibr And Corrugated Double Layer Roll Forming Machine Fully Automated Plc Control
Ibr And Corrugated Double Layer Roll Forming Machine Fully Automated Plc Control Ibr And Corrugated Double Layer Roll Forming Machine Fully Automated Plc Control
Product Details
Product Name:
Ibr And Corrugated Double Layer Roll Forming Machine Full Automatic Plc Control
Dimension(L*W*H):
5000*1500*1800mm
Raw Material:
Galvalume, Galvanized
Production Capacity:
10-20m/min
Weight:
5000 Kg
Material Of Roller:
45# Cr Plated
Hydraulic Power:
4 KW (according To Type)
Pow Supply:
380V 50Hz 3phases(customizable)
Machine Cutter Material:
CR12
Feeding Width:
914mm / 1000mm / 1200mm / 1220mm / 1250mm
Highlight:

Double Layer Forming Machine Fully Automated

,

ibr roll forming machine Fully Automated

,

ibr roll forming machine Plc Control

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price 2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836 online Video

2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836

Get Best Price
Good price Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price Double Layer Roll Forming Machine PLC Control online Video

Double Layer Roll Forming Machine PLC Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

Ibr And Corrugated Double Layer Roll Forming Machine Full Automatic Plc Control ​



Ibr And Corrugated Double Layer Roll Forming Machine Full Automatic Plc Control Main Features

1.This roll forming machine can roll form metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2.Roll forming process: uncoiler, roll forming, cut to length, receive the finished product.
3.Fully Automatic Control System with PLC.
4.Easy operation: Key in the length and quantity on the control panel.
5.Two years warranty.
6.We also can do a customized roll forming machine, We can design the machine according to your specification and profile drawing.

 The production size we can design the machine all as customize,customer just show us the profile drawing material thickness width,Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors.


Specification

Part Details Item Name Specification
Material Raw Material PPGI material
Thickness 0.3-0.6 mm
Machine Roller Station 12-18
Shaft Material 70 mm
Shaft Material 45# steel with 0.05mm chrome
Roller Material 45# steel with 0.05mm chrome
Machine Size About 5.5*1.5*1.8m
Machine Weight About 5 ton
Machine Color As customer request
Working Speed 10-20 m/min
Cutter Hardness 50-65 HRC
Cutting Tolerance ± 1mm
Material CR12
Operate Hydraulic cutting
Power Driving Way Chain 1 inch
Main Power 5.5 KW
Pump Power 4 KW
Voltage 380v 50hz 3P, or Customize as Customer' request
Control System PLC Brand Delta made in Taiwan
Screen Touchable Screen
Language Chinese, English or Add customer' need
Decoiler Operation Manual
Weight Capacity 3 ton
Price Free as gift
Receiving Table Operation Manual
Length 3m



Guarantee



  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


.

Payment terms

  30% in advance as down payment
  70% is paid before the shipment is processed

Delivery

  FOB: Tianjin Xingang Port
  The Delivery Time: 30 days after the down payment is received.Ibr And Corrugated Double Layer Roll Forming Machine Fully Automated Plc Control 0
