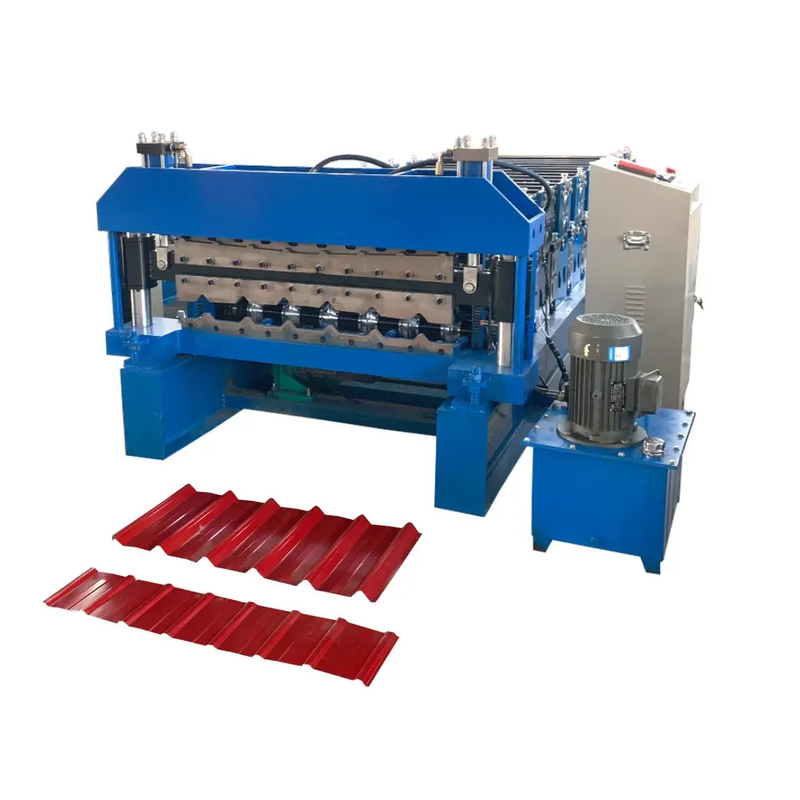

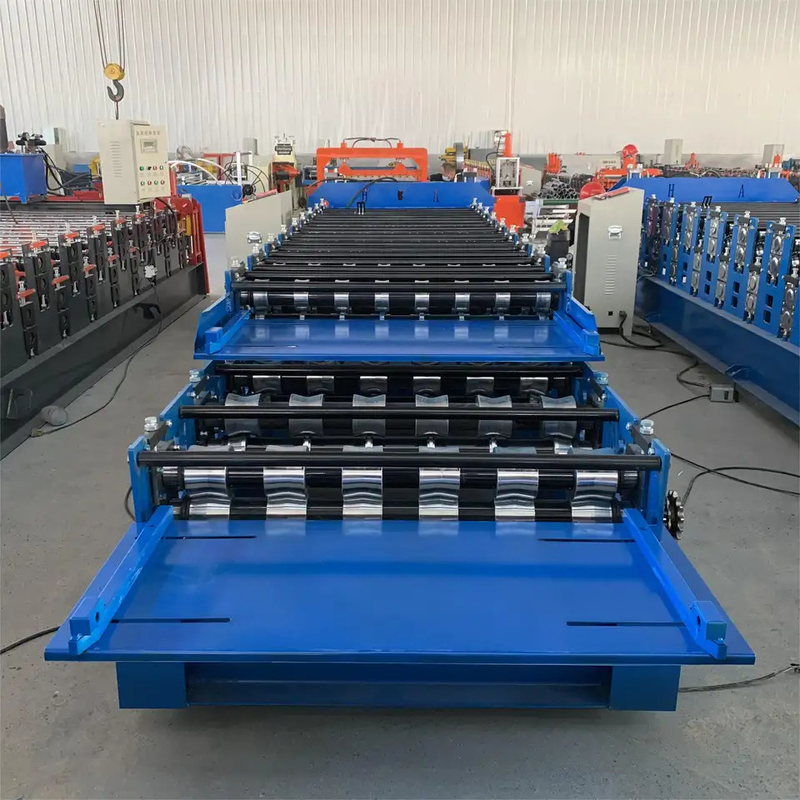

7.5KW Double Layer Roll Forming Machine For Long Span Roof Sheet Multifunctional

7.5KW Double Layer Roll Forming Machine For Long Span Roof Sheet Multifunctional
7.5KW Double Layer Roll Forming Machine For Long Span Roof Sheet Multifunctional 7.5KW Double Layer Roll Forming Machine For Long Span Roof Sheet Multifunctional

Large Image :  7.5KW Double Layer Roll Forming Machine For Long Span Roof Sheet Multifunctional

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Model Number: Double Layer
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: High Quality Double Layer Roll Forming Machine For Long Span Roof Sheet Dimension(L*W*H): 5.75*1.5*1.2m
Raw Material: Galvalume, Galvanized Production Capacity: 8-15m/min
Weight: 5000 Kg Material Of Roller: 45# Cr Plated
Main Motor: 7.5KW Pow Supply: 380v (3 Phase)
Cutting Tool Materail: Cr12Mov Feeding Width: 1000mm
High Light:

7.5KW Double Layer Roll Forming Machine

,

Multifunctional Double Layer Roll Forming Machine

,

double layer roofing sheet machine Multifunctional

High Quality Double Layer Roll Forming Machine For Long Span Roof Sheet
High Quality Double Layer Roll Forming Machine For Long Span Roof Sheet
   Uncoiler → Feed Guide Device → Roll Forming System → Hydraulic Press Stair Device→ Hydraulic Post Cutting Device (Two Pieces Cutting Blades) → Exit Rack*3 → PLC Control System → Hydraulic Station


 Double layer roll forming machine is one of our main products,it is more and more popular in recent years . It is beautiful in appearance &unique in design.We are very professional manufacturer of double layer roll forming machine, with mature technique and professional experience ,our machines have been sent to many countries all around the world and gained a good reputation for us .


Specification

item
value
Forming Speed
8-15m/min
Voltage
380V  220v
Thickness of feeding material
0.3-0.8mm
The Length Of Tolerance
±0.5mm
Warranty
1 Year
Key Selling Points
Automatic
Roller station
12-14 rows.
Material of the roller
High grade No.45 forged steel.
Warranty of core components
1 Year
Core Components
Bearing, Gear, Pump, PLC
Raw material
PPGI
Roller material
45#steel Chrome Plated
Coil width before rolling
1000mm
Cutting blade material
Cr 12 High Grade Steel



Guarantee





  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


.

Payment terms

  30% in advance as down payment
  70% is paid before the shipment is processed

Delivery

  FOB: Tianjin Xingang Port
  The Delivery Time: 30 days after the down payment is received.
