Product Details:
Payment & Shipping Terms:
|
| Product Name: | Factory Prices Double Layer Tile Roof Roll Forming Machine Metal Tile Making Roof Machine | Dimension(L*W*H): | 8.5.*1.2*1.3 |
|---|---|---|---|
| Raw Material: | Galvalume, Galvanized | Product Speed: | 5-6m/ Min |
| Rolling Thinckness: | 0.3-0.8mm | Shaft Material: | 45# Steel |
| Main Motor: | 7.5KW | Pow Supply: | 380v (3 Phase) |
| Cutting Tool Materail: | Cr12Mov | Diameter: | φ75/90mm |
| High Light: | Metal Tile Making Machine 380volt,Tile Roof Roll Forming Machine 380volt,Double Layered Tile Roof Roll Forming Machine |
||

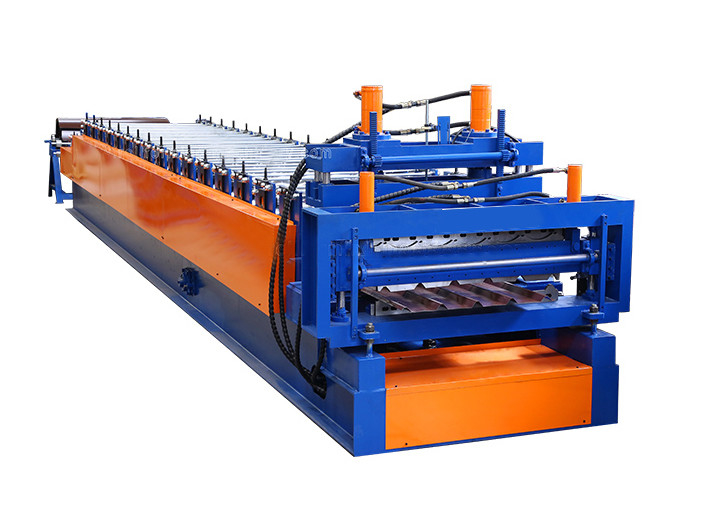

Factory Prices Double Layer Tile Roof Roll Forming Machine Metal Tile Making Roof Machine

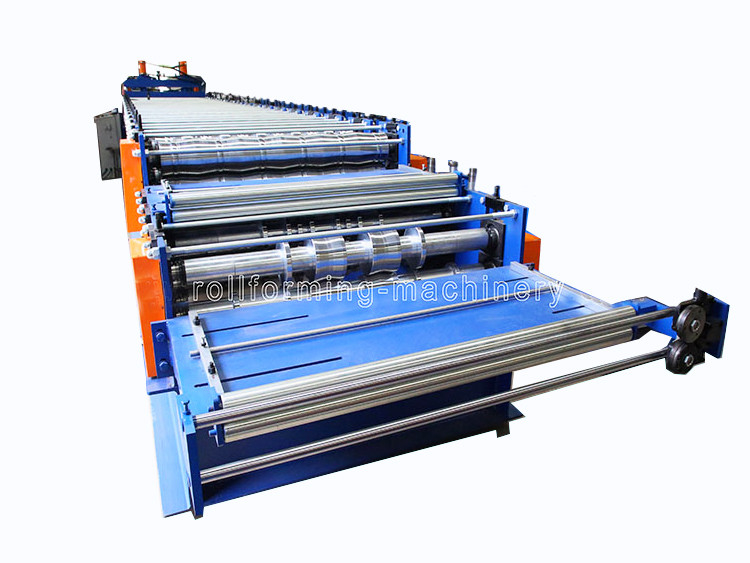

Factory Prices Double Layer Tile Roof Roll Forming Machine Metal Tile Making Roof Machine
Uncoiler → Feed Guide Device → Roll Forming System → Hydraulic Press Stair Device→ Hydraulic Post Cutting Device (Two Pieces Cutting Blades) → Exit Rack*3 → PLC Control System → Hydraulic Station
● The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
● All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
● We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
● It is very easy to install the equipment and suitable for producing in the factory.
● The machine has features of low noise and high efficiency.
Specification
|
item
|
value
|
|
Forming Speed
|
20m/min
|
|
Voltage
|
380V 220v
|
|
Effective Width
|
1219mm
|
|
The Length Of Tolerance
|
±0.5mm
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
Automatic
|
|
Inspection Thickness
|
0.5mm
|
|
Tie rod
|
ф22 Galvanized
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Bearing, Gear, Pump, PLC
|
|
Raw material
|
PPGI
|
|
Roller material
|
45#steel Chrome Plated
|
|
Coil width before rolling
|
1000mm
|
|
Cutting blade material
|
Cr 12 High Grade Steel
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
