Product Details:
Payment & Shipping Terms:
|
| Product Name: | Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836 | Dimension(L*W*H): | 7.5*1.3*1.3 M |
|---|---|---|---|
| Raw Material: | Galvalume, Galvanized | Working Speed: | 8-15 M/min |
| Rolling Thinckness: | 0.3-0.8mm | Shaft Material: | 45# Steel |
| Motor Power: | 7.5 Kw | Pow Supply: | 380V, 60Hz, 3Ph |
| Profile: | As Customer Requested | ||
| High Light: | 840 Trapezoidal Double Layer Roof Roll Forming Machine,3Ph Double Layer Roof Roll Forming Machine,60Hz double roll forming machine |
||

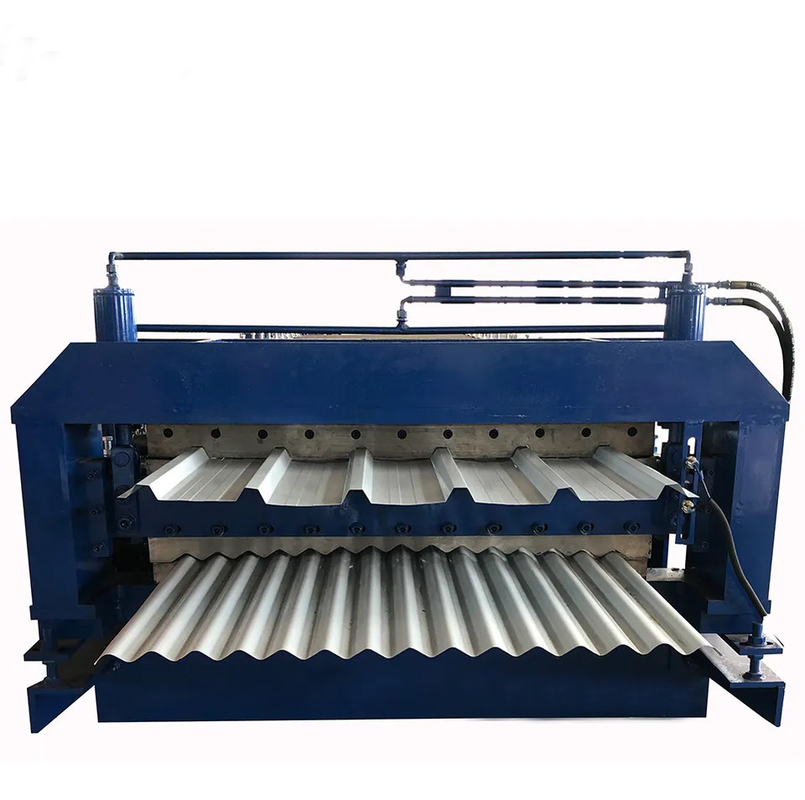

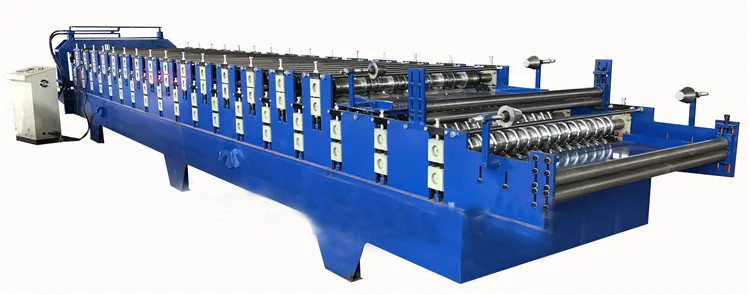

Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836
CANGZHOU FAMOUS CO., LTD roducts mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, etc.
Specification
| art details | Item Name | Specification |
| Manual uncoiler | carrying capacity | tons |
| Stype | Manual | |
| Raw coil | Coil material | steel |
| Coil thickness | 0.3-0.8 mm | |
| Machine body | Roller station | 15 station |
| Roller material | 45# steel | |
| Shaft material | 45# steel | |
| Shaft diameter | 75 mm | |
| Machine weight | About 8.5 tons | |
| Machine size | 5-7.5*1.3*1.3 m | |
| Speed | 8-15 m/min | |
| Cutter | Operate | Hydraulic cutting |
| Blade material | Cr12 | |
| Power | Operate | Chain transmission |
| Chain size | 1 inch chain | |
| Control system | PLC brand | Taiwan delta |
| Motor power | 7.5 kw | |
| Hydraulic pump power | 4 kw | |
| Voltage | 380V 50Hz 3phase | |
| Machine color | As ur need | |
| Machine language | Chinese and English |
Advantage
The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.
Payment terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
