Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Quality Roller Shutter Door Roll Forming Machine Roller Shutter Door Machine | Working Material: | Galvanized Sheet(GI),cold Roll Steel(CRC) |
|---|---|---|---|
| Working Speed: | 14-16m/min | Thickness: | 0.3-0.8mm |
| Voltage: | 380V 50Hz, 380V.50HZ.3Phase | Weight: | 7000 Kg |
| Cutter Material: | Cr12Mov Tool Steel | Shaft: | 50mm |
| Power: | 22Kw | Roll Material: | 45# High Grade Steel |
| High Light: | Fast Speed Roller Shutter Door Forming Machine,Roller Shutter Door Forming Machine 16m/Min,shutter door roll forming machine Power Saving |
||

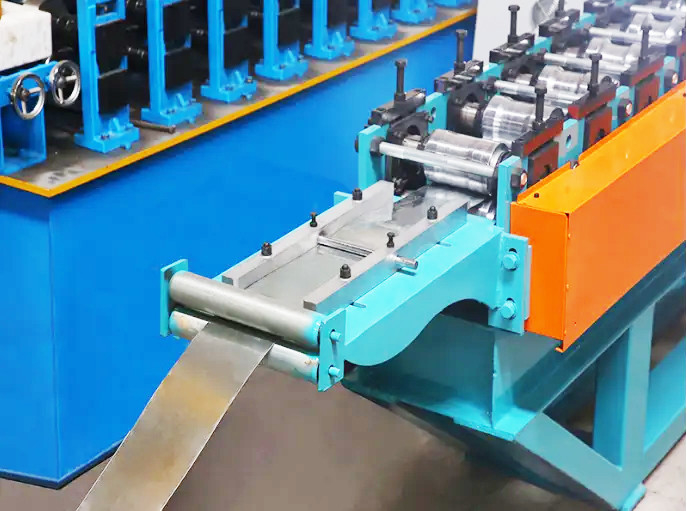

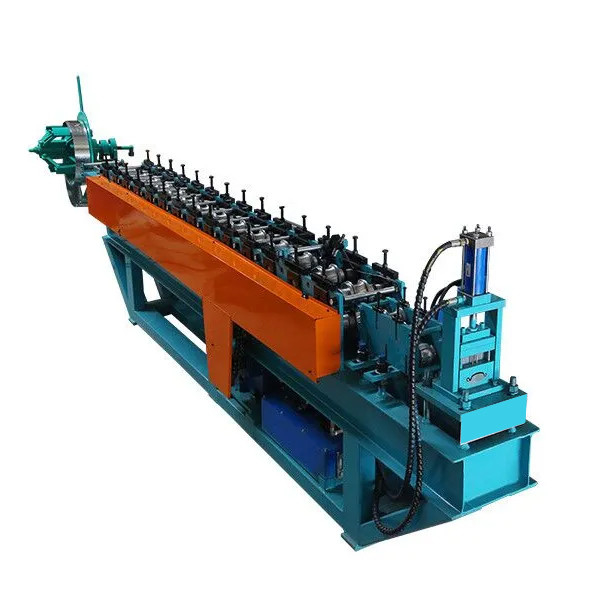

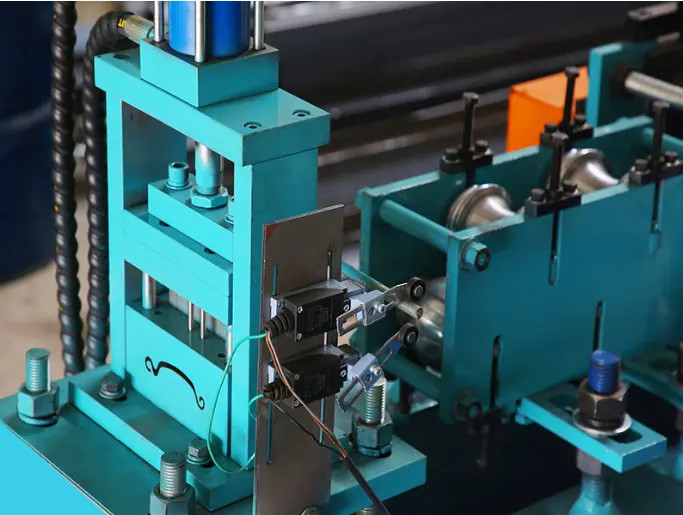

High Quality Roller Shutter Door Roll Forming Machine Roller Shutter Door Machine
High Quality Roller Shutter Door Roll Forming Machine Roller Shutter Door MachineWork Follow:
Roll forming machines have a variety of applications, like steel doors industry. FMS is experienced in the designing and building for various steel door components roll forming machines.
During years of experience in roll forming developing and researching, FMS supplies optimal roll forming machines for the manufacturing of steel doors; the most common door products roll formers that can be found in the markets are like steel rolling shutter panel roll forming machine, rolling shutter slat roll forming machine, door track or guide rail roll forming machine and steel safety door frame roll forming machine etc.
Specification
|
Body frame made
|
400#H type steel by welding
|
|
Voltage
|
380V 50Hz
|
|
Weight
|
7000kg
|
|
Real forming speed
|
14-16m/min
|
|
Power
|
22Kw
|
|
Side wall thickness
|
Q235 t18mm
|
|
Shaft Diameter
|
φ50mm, precision machined
|
|
Main motor
|
5.5KW,frequency speed control
|
|
Chain size
|
one inch with 18 teeth |
|
Roll material
|
45# high grade steel
|
|
Cutting blade material
|
Cr 12 high grade steel
|
|
Hydraulic motor
|
3KW
|
|
Core Components
|
Motor, PLC
|
|
Cutting pressure
|
0-16Mpa,
|
|
Material Thickness
|
0.5-0.8mm;0.8-1.2mm
|
|
Dimension(L*W*H)
|
20*1*12m
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
