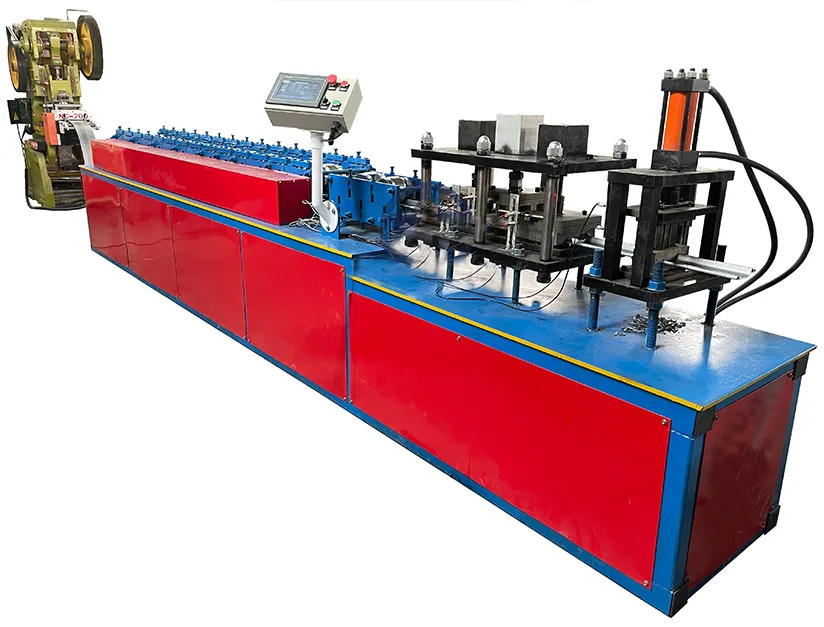

Hydraulic Cutting Galvanized Steel Shutter Door Forming Machine 8-20m/Min

Hydraulic Cutting Galvanized Steel Shutter Door Forming Machine 8-20m/Min

Hydraulic Cutting Shutter Door Forming Machine

Shutter Door Forming Machine 20m/min

shutter door rolling machine 20m/min

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Model Number:

door slat

Contact Us
Request A Quote
Hydraulic Cutting Galvanized Steel Shutter Door Forming Machine 8-20m/Min
Hydraulic Cutting Galvanized Steel Shutter Door Forming Machine 8-20m/Min Hydraulic Cutting Galvanized Steel Shutter Door Forming Machine 8-20m/Min Hydraulic Cutting Galvanized Steel Shutter Door Forming Machine 8-20m/Min Hydraulic Cutting Galvanized Steel Shutter Door Forming Machine 8-20m/Min
Product Details
Product Name:
Hydraulic Cutting Galvanized Steel Shutter Door Forming Machine 3 Kinds Of Holes
Voltage:
380v/50HZ
Dimension(L*W*H):
4.5*0.8*1 M
Production Capacity:
8-20 M/min
Warranty:
18 Month
Roller Material:
45#steel
Weight:
3t
Core Components:
PLC, Engine, Bearing, Motor, Gear
Highlight:

Hydraulic Cutting Shutter Door Forming Machine

,

Shutter Door Forming Machine 20m/min

,

shutter door rolling machine 20m/min

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
25 Sets Per Month
RELATED PRODUCTS
Good price Customized High Speed PU Door Roller Shutter Roll Forming Machine online Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Get Best Price
Good price 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size online Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

Get Best Price
Good price 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System online Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Get Best Price
Good price PLC Control System 3T Shutter Door Roll Forming Machine For Doors online Video

PLC Control System 3T Shutter Door Roll Forming Machine For Doors

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

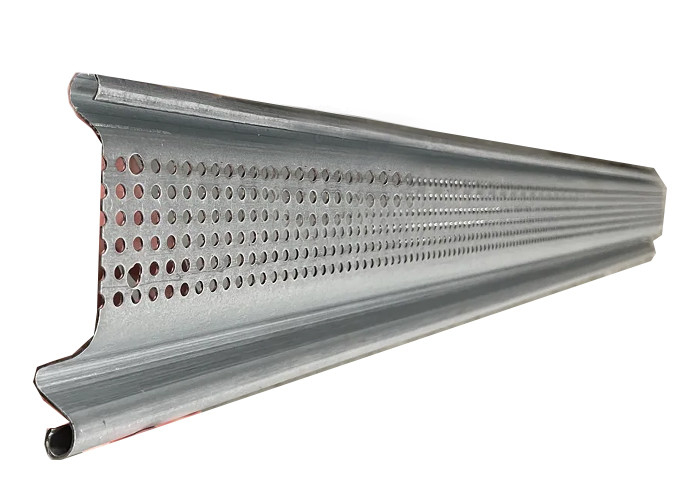

Hydraulic Cutting Galvanized Steel Shutter Door Forming Machine 3 Kinds Of Holes

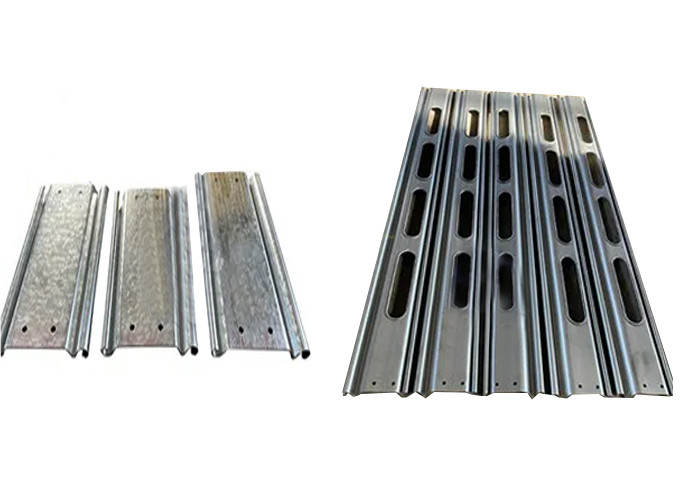

This machine punch 3 kinds of holes:

  1st kind of hole is by puncher, hole punching offline

  2nd kind of hole is by 3 kind of punching mould, hole punching online for big holes

  3rd kind of hole is by cutter punching, cutting and hole punching at same time, for side 2 holes



   We are the professional shutter door roll forming machine manufacturer in China, we ship shutter door roll forming machine all over the world like India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabia, Oman etc. Common shutter door rolling thickness from 0.7-1.2mm, material use PPGI or GI. Size can customize as customer's need.





Specification

Part details Item Name Specification
Material Raw material Galvanized steel
Thickness
0.8-2 mm

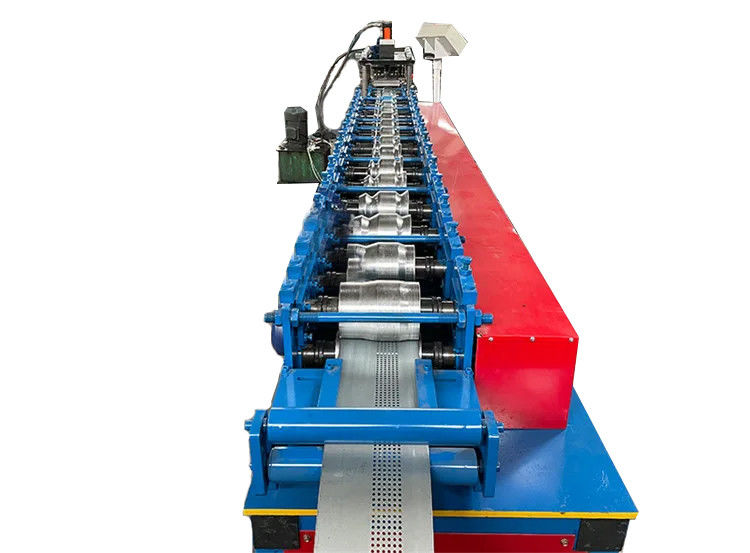

Machine Roller station 14
Shaft diameter 55 mm
Shaft material 45# steel with 0.05mm chrome
Roller material hardness 30-40 HRC Cr 12
Machine size About 4.5*0.8*1 m
Machine weight About 2 ton
Machine color As customer' request
Working speed 8-20 m/min
Cutter Hardness 50-65 HRC
Cutting tolerance ± 1 mm
Material Cr 12
Operate Hydraulic cutting
Power Driving way Chain 1 inch
Main power 4 kw
Pump power 3 kw
Voltage

380v/50HZ,3P or customize

as customer' request
Control system PLC brand Delta made in Twaiwan
Screen Touchable screen
Language Chinese and English or add language as customer need
Decoiler Operation Manual
Weight capicatity 3 ton
Price Free as gift
Receiving table Operation Manual
Length 3 m



Guarantee



  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery



  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
