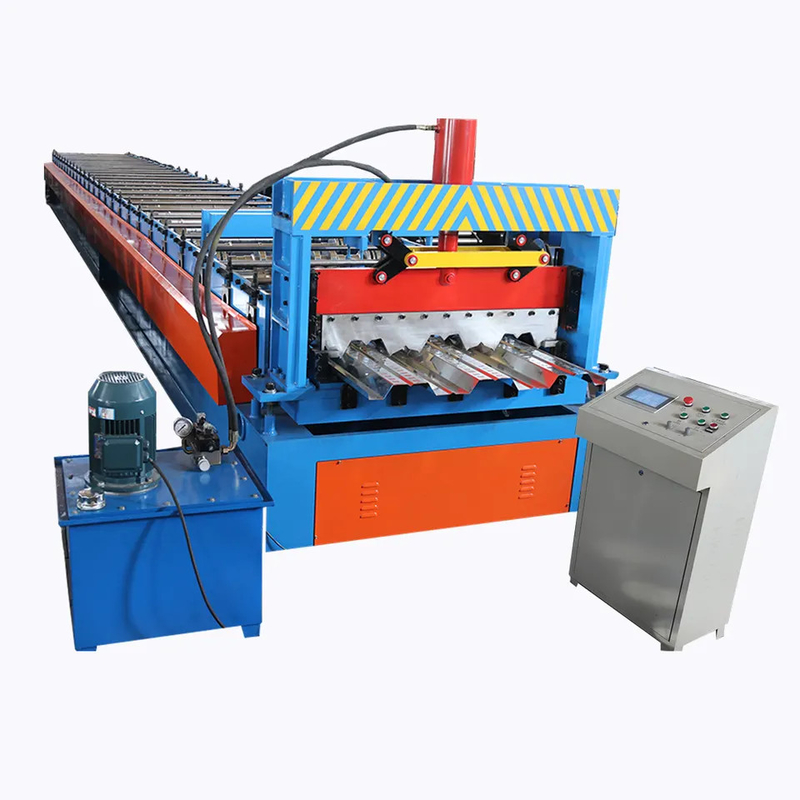

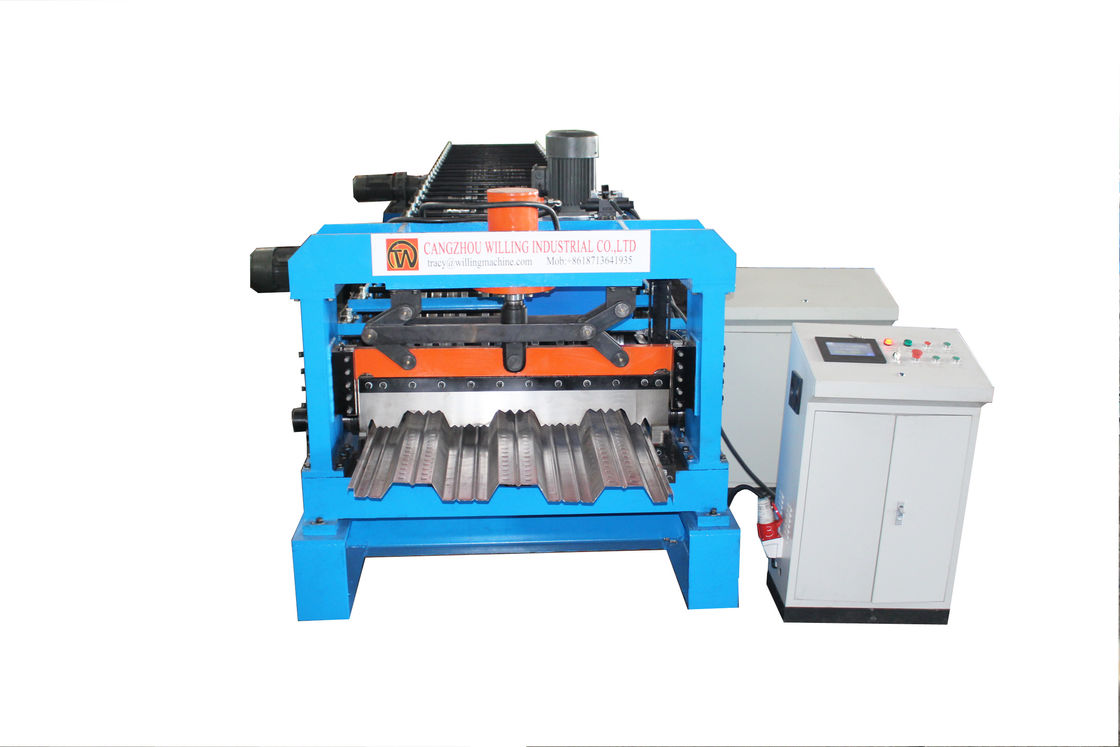

380V 50Hz 3phases Metal Deck Roll Forming Machine With 15 - 20m/Min

380V 50Hz 3phases Metal Deck Roll Forming Machine With 15 - 20m/Min

Metal Deck Roll Forming Machine 20m/Min

3phases Metal Deck Roll Forming Machine

floor deck roll forming machine 20m/Min

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Model Number:

Floor Deck

Contact Us
Request A Quote
Product Details
Product Name:
Customized Metal Deck Roll Forming Machine With 10 - 15m/Min
Dimension(L*W*H):
12.5*1.8*2.0
Cutting Blade Material:
Cr12 Quenched
Control Type:
PLC System
Shaft Material:
High Grade No.45 Forged
Weight:
10500 Kg
Voltage:
380V 50Hz 3phases
Production Capacity:
10-15 M/min
Highlight:

Metal Deck Roll Forming Machine 20m/Min

,

3phases Metal Deck Roll Forming Machine

,

floor deck roll forming machine 20m/Min

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
40' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
Product Description

Customized Metal Deck Roll Forming Machine With 15 - 20m/Min

   Customized Metal Deck Roll Forming Machine With 15 - 20m/Min is mainly used to produce press-formed steel plate to support floor concrete,The main benefit of a composite metal floor deck is strengthening your floor system without adding extra weight. Composite metal floor deck comes in different profile types, gauges and lengths. Each profile type and gauge is engineered for different concrete slabs and yields different values in strength. Not all projects are engineered the same. Some areas may require more strength and that requires a heavier gauge or different profile type.

The floordeck which is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure plants, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, Olympic venues, sports Steel structure buildings such as stadiums.This product has strong durability, is not easy to be damaged, and the speed of rolling the steel plate is fast, which greatly saves time and labor costs. The finished steel plate after rolling is light in weight, good in shape, and not easily deformed.



Specification

Customized Metal Deck Roll Forming Machine With 15 - 20m/Min
Dimensions
12.5*1.8*2.0m
Weight
About 10500kgs

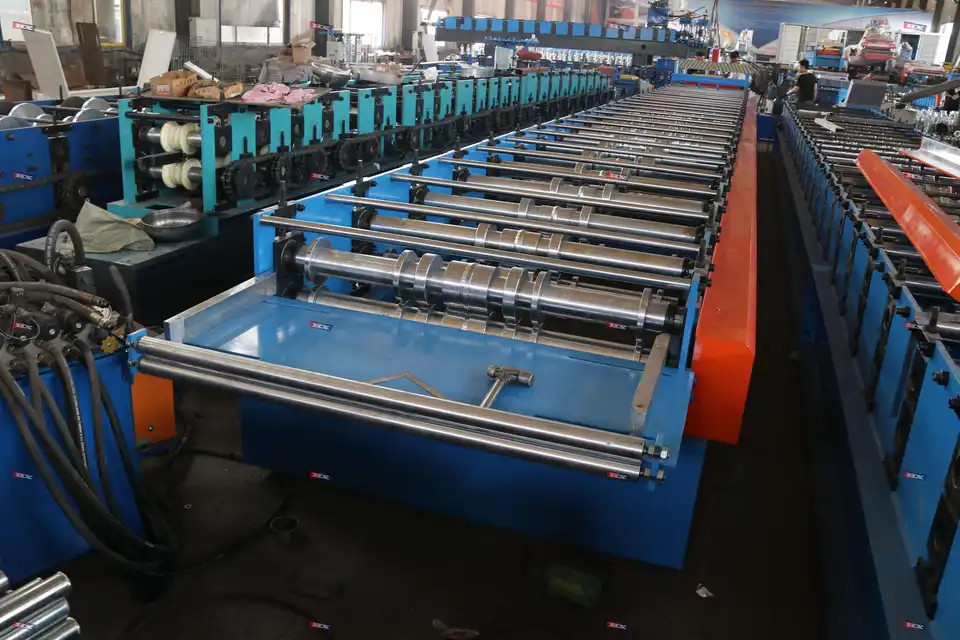

Roller
26 Rows
Material of the Cutting Blade
Cr12, Quenched treatment 58℃-60℃
Rolling Materials
45# forging steel with chromium plate
Diameter of the Roller
Φ90mm
Main Structure of the Machine
450H beams
Side Panel of Machine
20mm
Chain
1 Inch
Motor Power
15Kw*2
Pump Station Motor
4Kw Lichao Brand
Productivity
10-15m/min
Thickness of the Plate
0.5-1.2mm
Length Tolerance
±2mm
Touch Screen
Delta
Voltage
380V 50Hz 3 phases or as customer's need
Drive Mode
Motor driver
Suitable to Process
GI/GL/PPGI/PPGL/Aluminum coils



Guarantee



   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



   40% in advance as down payment

   60% is paid before the shipment is processed



Delivery



   FOB: Tianjin Xingang Port

   The Delivery Time: 30 days after the down payment is received.
