Product Details:
Payment & Shipping Terms:
|
| Product Name: | Corrugated Type Trapezoidal Type Roof Sheeting Roll Forming Machine Double Layer Machine | Raw Material: | GI GL PPGI PPGL |
|---|---|---|---|
| Dimension(L*W*H): | 8.5*1.2*1.5m | Production Capacity: | 15-30 M/min |
| Shaft Material: | 45# Steel Outer Diameter: 80mm | Thickness: | 0.3mm-0.8mm |
| Weight: | 6000 Kg | Cutting Blade Material: | Cr 12 Mov |
| High Light: | 30m/Min Trapezoidal Roll Forming Machine,30m/Min Corrugated Roll Making Machine,ISO Trapezoidal Roll Forming Machine |
||

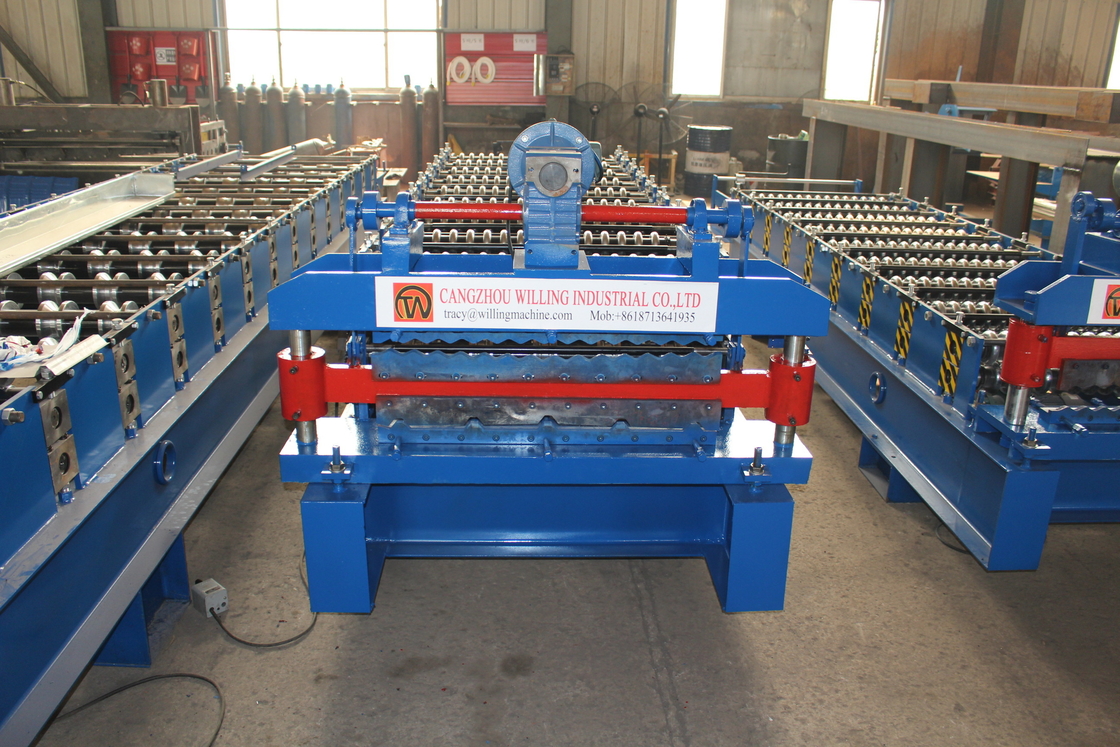

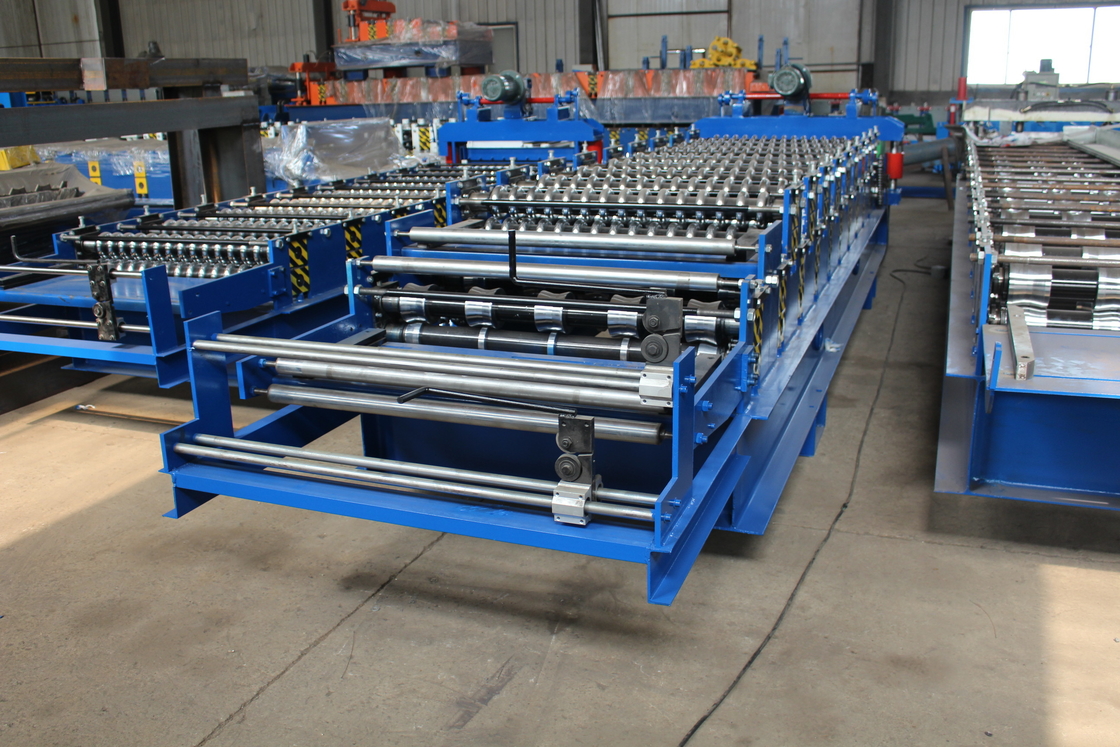

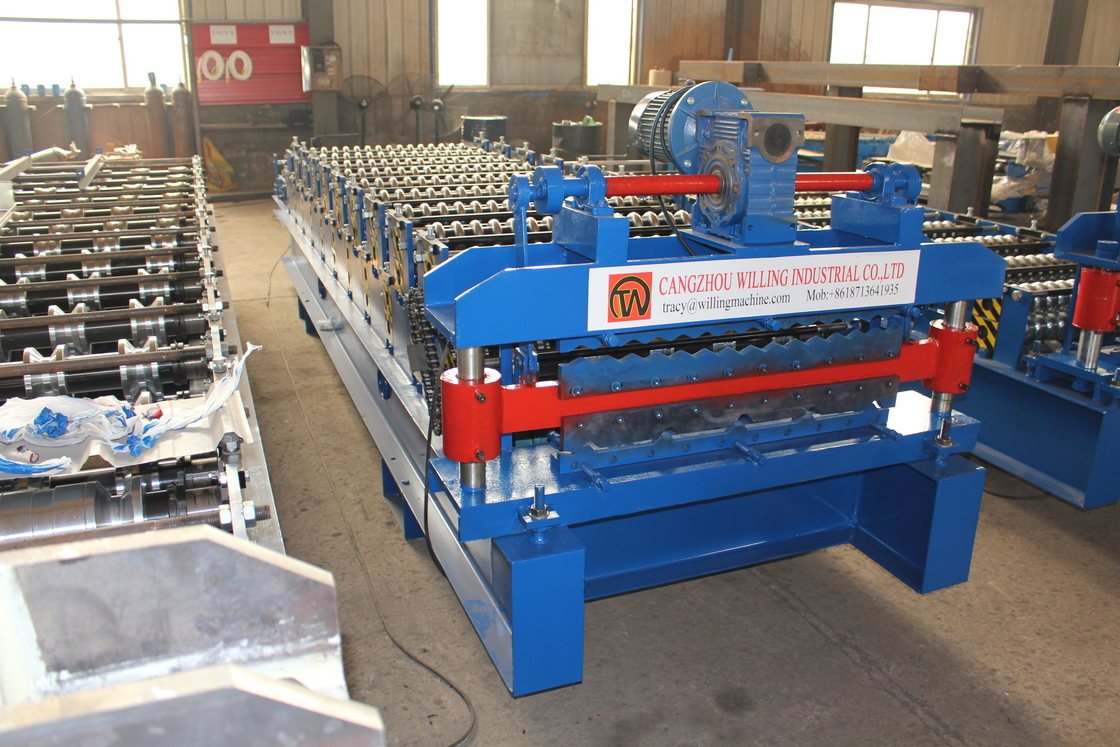

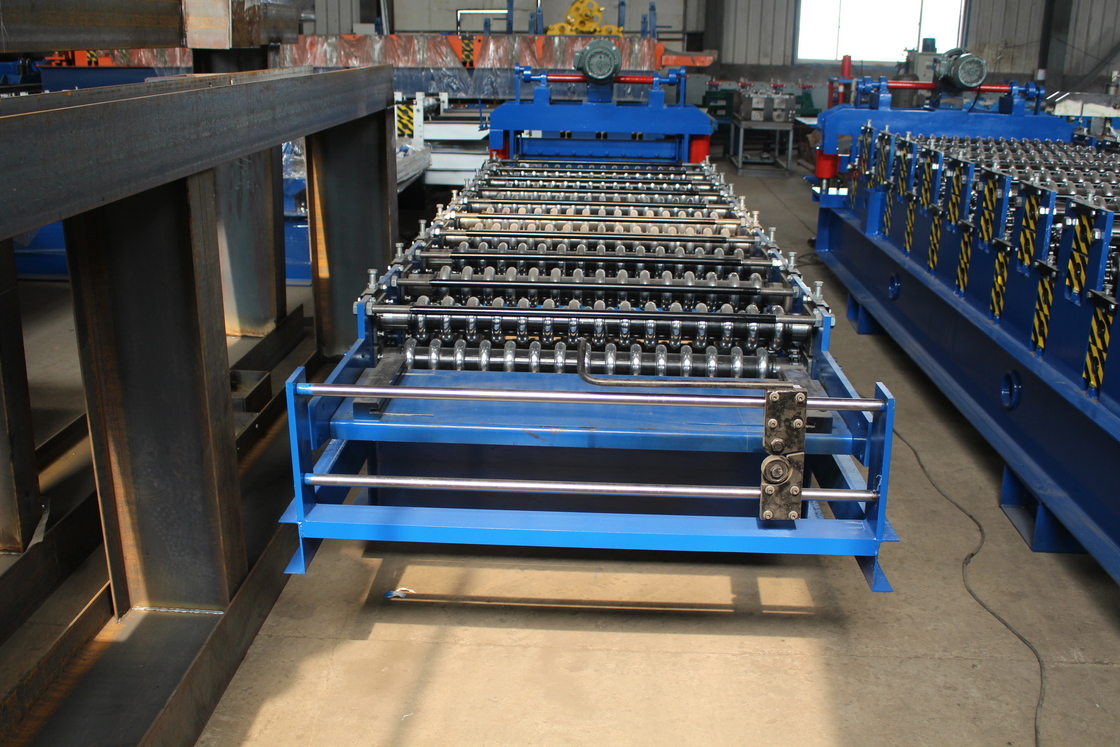

Corrugated Type Trapezoidal Type Roof Sheeting Roll Forming Machine Double Layer Machine
Specification
|
Specifications for reference
|
|
| Dimension(L*W*H) |
7.5*1.2*1.5m
|
|
Rolling thinckness
|
0.3-.08 m/min
|
|
Feeding width
|
as per drawing
|
|
finished width
|
as per drawing |
| Shaft material | 45# Steel Outer Diameter: 70mm |
|
Cutting blade material
|
Cr 12 Mov
|
Guarantee
In correct operation and maintenance, the machines are 12 months quality guarantee from time of loading, life guarantee repair; within quality guarantee period, except for failures caused by human error, spare parts will be provided freely; after the quality guarantee period, only charge the cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.
Payment terms
30% in advance by TT as down payment ,70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
