4kw Metal Galvanized Downspout Roll Forming Machine 8-12m/Min

4kw Metal Galvanized Downspout Roll Forming Machine 8-12m/Min

Downspout Roll Forming Machine 12m/Min

downspout making machine 12m/Min

4kw Downspout Roll Forming Machine

Place of Origin:

CHINA

Brand Name:

CANGZHOU FMS

Certification:

ISO CE

Model Number:

Downspout Roll Forming Machine

Contact Us
Request A Quote
Product Details
Product Name:
Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine
Production Capacity:
8-12m/min
Cutting Blade Material:
Cr 12 Mov
Rolling Thinckness:
0.3-0.8mm
Dimension(L*W*H):
7800*1200*1400MM
Gross Weight Per Unit Product:
6500kg
Voltage:
380V 50Hz 3phases Or As Your Requirement
Control System:
PCL
Feeding Width:
As Requested
Highlight:

Downspout Roll Forming Machine 12m/Min

,

downspout making machine 12m/Min

,

4kw Downspout Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
35 Sets Per Month
Product Description

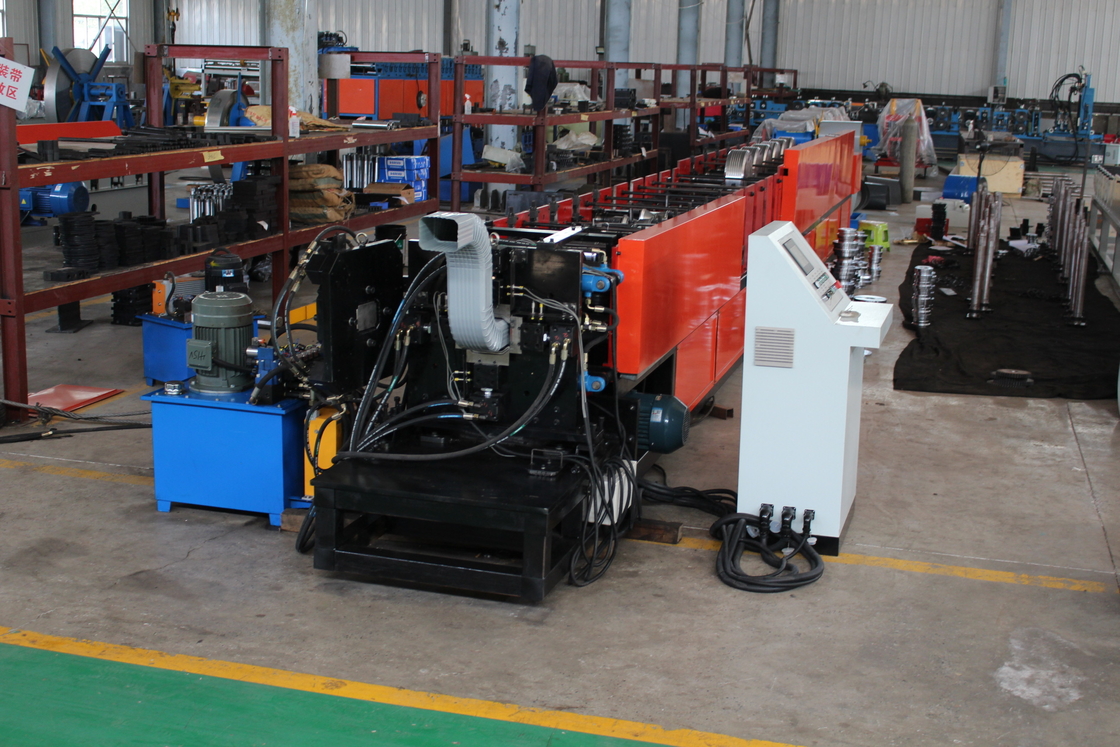

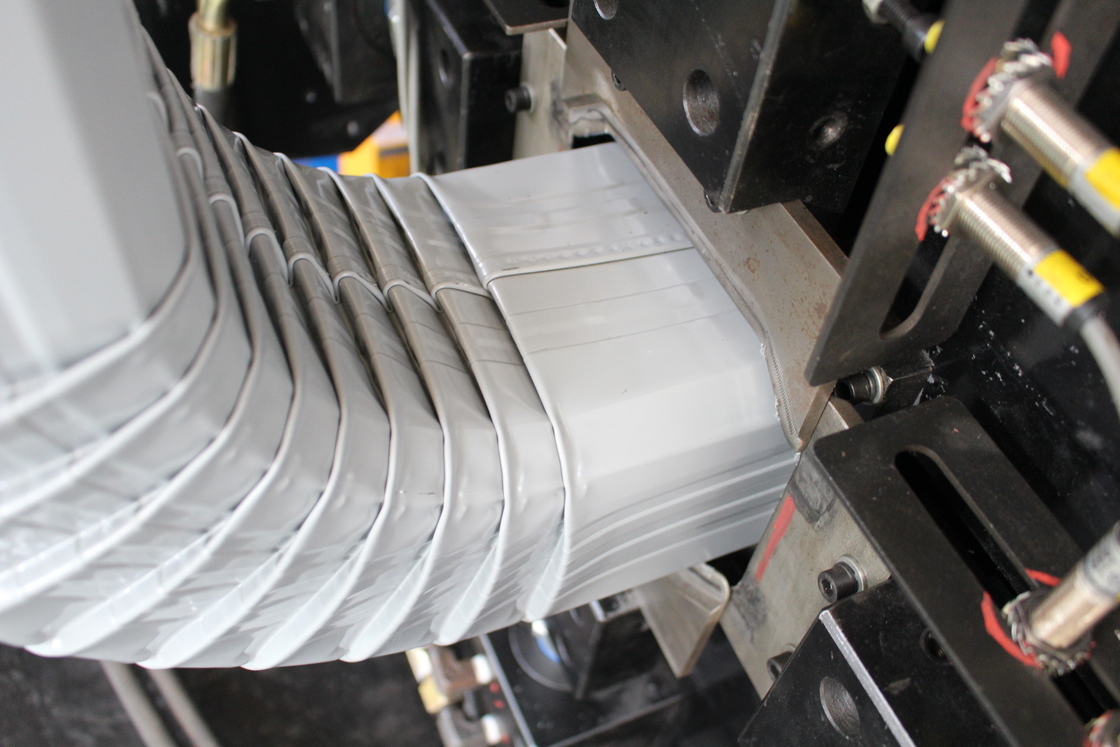

Metal Galvanized Downspout Roll Forming Machine Downspout Bending Machine



The galvanized drop -type metal drainage ditch molding machine can bend the rolling pipe and allow the drain pipe to connect to the whole. The working hours of rolling products are longer than plastic tubes, not aging. It can make the project more integrated and help enhance the image of all projects. The device is controlled by PLC, the frequency of AC and adjusting speed technology, and aware of the continuous production of continuous production. Therefore, it is indeed a new type of energy saving and efficient production equipment for steel structures.



Specification



Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine
Processing material aluzinc/galvanized steel/colored steel coil
Material thickness 0.3-0.8mm
Frame design According to customer requested
Main motor power 4 kw
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ75mm
Main motor power 7.5KW
Max. Line speed of roll former 15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power 4KW
Material of cutting blade Cr12, hear treatment
Electric Standard 380V /50Hz/3PH or as per customer's requirements
Main frame 300H steel




Installation


During the installation and debugging of the device, our engineers should provide the buyer's personal request to provide training and maintenance of the equipment. Including basic buildings, electrical engineering, hydraulic oil, safety operations and non -standard safety items, test materials, etc.



Guarantee

The warranty will be maintained and during the delivery period during the delivery period. Due to the quality of the equipment during the guarantee period, we will provide parts for free, which is the correct operating condition. (Natural disasters or factors that humans cannot force are excluded).



Payment terms



  40% in advance, 60% is paid before shipping after pass the inspection
