Product Details:
Payment & Shipping Terms:
|
| Product Name: | Standing Seam Roofing Panel Roll Forming Machine With Hydraulic Cutting | Use: | Standing Seam |
|---|---|---|---|
| Dimension(L*W*H): | 8.5M X 1.5M X 1.2M | Rolling Thinckness: | 0.5-0.8 |
| Weight: | 5000 Kg | Condition: | New |
| Voltage: | 380V/415V/220V,50/60Hz,3Ph | Production Capacity: | 18-20 |
| High Light: | Hydraulic Cutting Standing Seam Roll Former,ISO Roofing Panel Roll Forming Machine,Hydraulic Roofing Panel Roll Forming Machine |
||

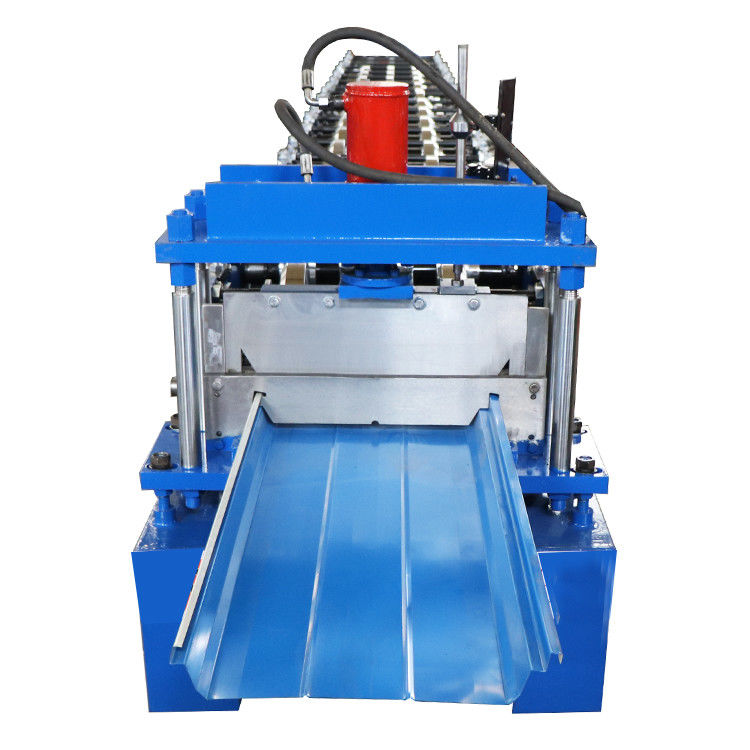

Standing Seam Roofing Panel Roll Forming Machine With Hydraulic Cutting
The advantages of Standing Seam Roofing Panel Roll Forming Machine Portable Full Automatic are as follows: 1.Low cost, light weight but high strength, short building period, and re-cycle use. 2.Easy operation, low maintenance cost. Rollers manufactured from high quality 40Cr steel, CNC lathes, Heat Treatment.with black treatment or Hard-Chrome Coating for options. Body frame made from 350# H type steel by welding. Made by high quality mold steel Cr12 with heat treatment.Cutter frame made from high quality 20mm steel plate by welding.hydraulic motor: 4KW, Hydraulic pressure range: 0-16Mpa
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Main motor | 5.5KW*2 |
| 3 | Forming speed | 15-18m/min |
| 4 | Cut-to-length tolerance | ≤±2 mm |
| 5 |
Dimension (L*W*H) |
5.5M x 1.5M x 1.2M |
| 6 | Machine Weight | 8310 kg |
| 7 |
Electrical Control System |
Panasonic PLC (can be customized) |
| 8 |
Drive Motor Power |
5 KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Cutting Accuracy |
±2 mm |
Guarantee
1. We guarantee that there will be no failure due to manufacturing defects within one year from the date of purchase, except for electrical parts.
2. Under the following circumstances, maintenance will not be carried out even within the warranty period
-Damage caused by natural disasters
-Failure due to user error
-Failure due to modification
-Failure due to further movement or transportation after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
