Hydraulic Crimping Arch Roofing Forming Machine With PLC Control

Hydraulic Crimping Arch Roofing Forming Machine With PLC Control

Hydraulic Roofing Forming Machine

Arch Roofing Forming Machine

PLC Control Roofing Forming Machine

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Model Number:

Hydraulic Crimping

Contact Us
Request A Quote
Hydraulic Crimping Arch Roofing Forming Machine With PLC Control
Hydraulic Crimping Arch Roofing Forming Machine With PLC Control Hydraulic Crimping Arch Roofing Forming Machine With PLC Control Hydraulic Crimping Arch Roofing Forming Machine With PLC Control Hydraulic Crimping Arch Roofing Forming Machine With PLC Control
Product Details
Product Name:
Hydraulic Crimping Arch Roofing Forming Machine With PLC Control
Raw Material:
PPGL
Dimension(L*W*H):
2050*1500*1300
Rolling Thinckness:
0.3-0.8mm
Shaft Material:
70mm
Main Frame:
350H Steel
Control System:
PLC
Voltage:
220V/380V/440V As Per Request
Highlight:

Hydraulic Roofing Forming Machine

,

Arch Roofing Forming Machine

,

PLC Control Roofing Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
30 Sets Per Month
RELATED PRODUCTS
Good price crimping bending Roofing Sheets Roll Forming Machine Hydraulic online Video

crimping bending Roofing Sheets Roll Forming Machine Hydraulic

Get Best Price
Good price IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation online Video

IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation

Get Best Price
Good price high speed Roofing Sheets crimping bending Roll Forming Machine online Video

high speed Roofing Sheets crimping bending Roll Forming Machine

Get Best Price
Good price 1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control online Video

1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

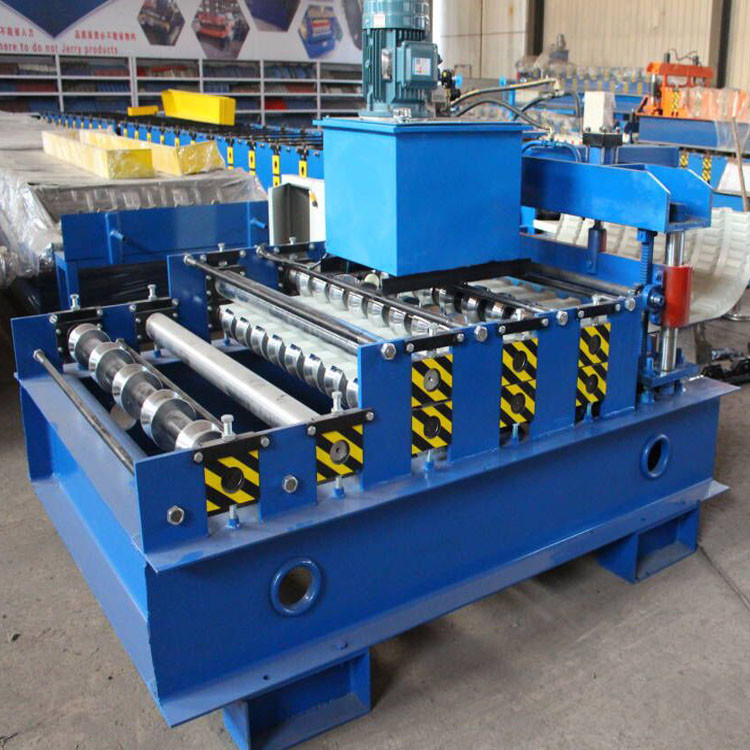

Hydraulic Crimping Arch Roofing Forming Machine with PLC Control



The vertical stitching roof bending machine is used to curved the vertical stitching roof truss into concave and convex shapes, rolling in three steps, and then selecting gear transmission. It can bend the aluminum plate and metal plate. The vertical roof can be used to build more beautiful steel houses and large sports halls. With such a small design, you can bring this machine to anywhere in the steel building project.



Specification

Product name
Color Steel Roof Curving Machine
Size
1500*850*2000mm
Weight
1200KGS
Voltage
380V/50HZ/3PH
Motor Power
4KW
Hydraulic Power
3KW
Curved Thickness for Aluminum
0.8-1.2mm
Curved Thickness for Steel
0.7-1.0mm
Width of straight roofing to curve
300mm to 600mm
Min.Width of Tapered Roofing to Curved
250mm
Max.Width of Tapered Roofing to Curved
500mm
Working Speed
10-16m/min



Application

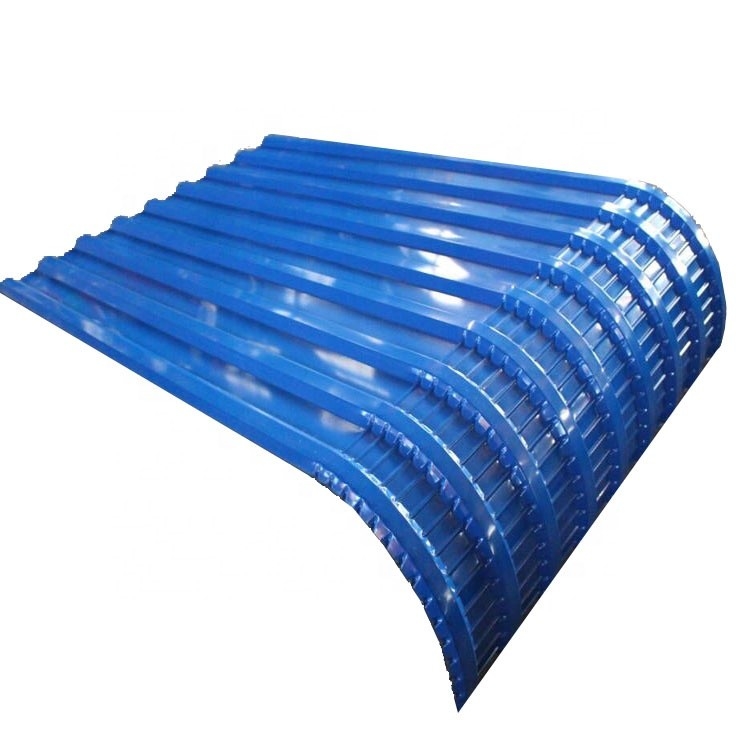

This curved roof arched plate manufacturer will be very smooth and beautiful without any scratches on the surface. Control the length and quantity on the panel.



Payment terms



30% in advance.

70% before the shipment is processed.



Delivery



FOB Tianjin Xingang Port or CNF Designated port

The Delivery Time: 30 days after the down payment is received

Hydraulic Crimping Arch Roofing Forming Machine With PLC Control 0
