Name: Automatic Control Touch Screen IBR Roof Roll Forming Machine Width 840mm
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: IBR840
Price: 28,000.00 USD
Availability: InStock

Home > products > Roof Roll Forming Machine >

Automatic Control Touch Screen IBR Roof Roll Forming Machine Width 840mm

IBR Type Roof Roll Forming Machine

Touch Screen Roof Roll Forming Machine

Width 840mm Roof Roll Forming Machine

Place of Origin:

China

Brand Name:

FMS

Certification:

Model Number:

IBR840

Request A Quote

Automatic Control Touch Screen IBR Roof Roll Forming Machine Width 840mm

Product Details

Tile Type:

IBR Type

Product Name:

Automatic Running IBR Roof Roll Forming Machine With Tiles Effective Width 840mm

Raw Material:

PPGI/Galvanized Sheet

Thickness:

0.2-0.8MM

Shaft Material:

Material Is 45# Forge Steel

Dimension(l*w*h):

5500*1200*1200mm

Highlight:

IBR Type Roof Roll Forming Machine

Touch Screen Roof Roll Forming Machine

Width 840mm Roof Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

30 sets per month

Metal Steel Sheets Steel Plate Diamond Checker Pattern Leveling Embossing Machine

Get Best Price

Video

Corrugated Three Layer Color Steel Roll Forming Machine Full Automatic

Get Best Price

Video

crimping bending Roofing Sheets Roll Forming Machine Hydraulic

Get Best Price

Video

IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation

Get Best Price

86-317-2016816

Contact Now

Product Description

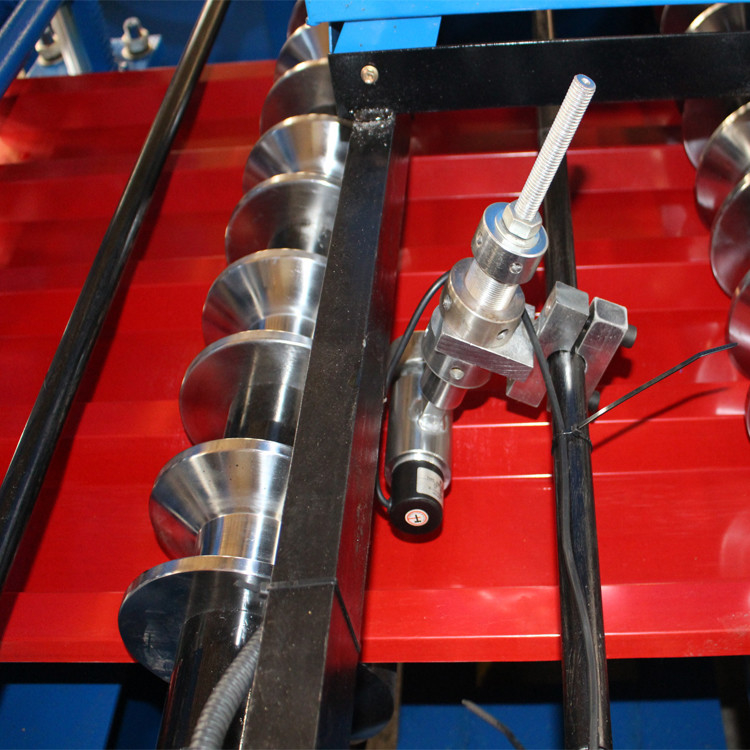

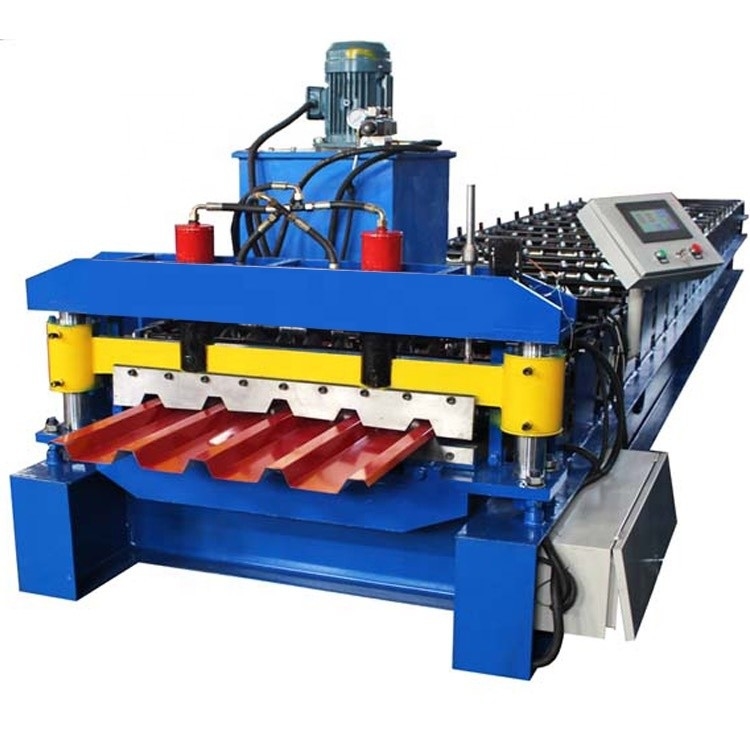

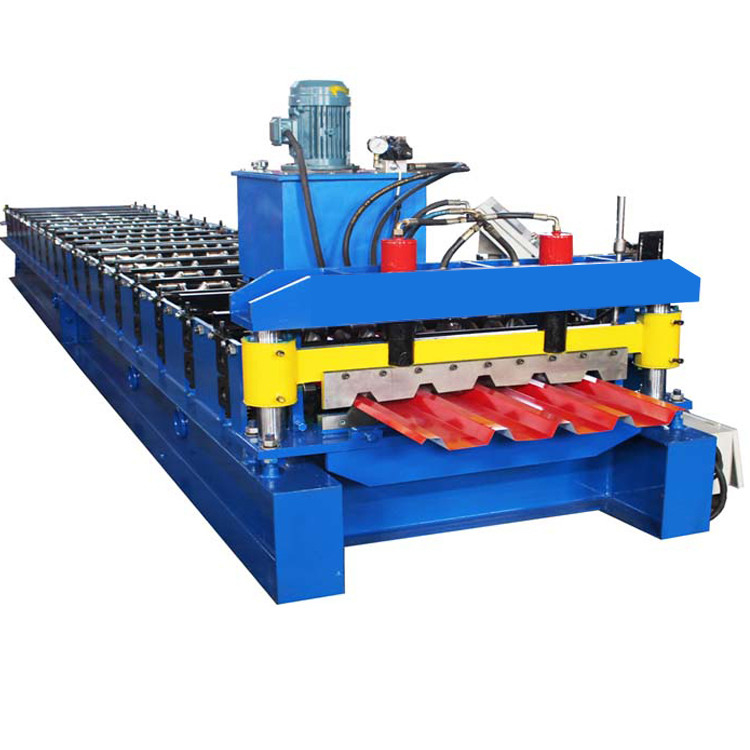

Automatic Cotrol Touch Screen IBR Roof Roll Forming Machine Effective Width 840mm

1) Linear structure, easy to install and maintain.
2) High -quality materials of the drum and axis.
3) Two -way column -type cutting system with two straight lines
4) Adopt advanced world -renowned brand components for pneumatic, electrical and operating components.
5) Run in a highly automated and intelligent environment

Equipment Detailed Parameters:

No
1	Suitable Material	PPGI
2	Width of the raw material	1000 mm
3	Rows of rollers	11 rows
4	Appearance size	550012001200mm
5	Total power	Main motor 3kw+3Kw
6	Thickness of raw material	0.3-0.6mm
7	Speed	8-15m/min
8	Diameter of shaft	￠75mm
9	Voltage	380V 50Hz 3phases
10	Big frame	350H steel
11	Middle plate	16mm

Application

It is suitable for industrial and civilian buildings, warehouses, special buildings, large-span steel structured roofs, wall surfaces, and interior and exterior wall decorations.

Advantage

As a result of its light quality, high strength, rich color, convenient construction, earthquake resistance, fire prevention, rainproof, and life span, the attributes of long, exempt maintenance have been widely promoted and applied.
