Steel Metal Rain Gutter Roll Forming Machine Automatic Control

Steel Metal Rain Gutter Roll Forming Machine Automatic Control
Steel Metal Rain Gutter Roll Forming Machine Automatic Control

Large Image :  Steel Metal Rain Gutter Roll Forming Machine Automatic Control

Product Details:
Place of Origin: CHINA
Brand Name: CANGZHOU FMS
Certification: ISO CE
Model Number: Gutter Roll Forming Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Automatic Metal Water Gutter Roll Forming Machine Steel Roofing Metal Water Gutter Speed: 15m/min
Cutting Blade Material: Cr 12 Mov Rolling Thinckness: 0.3-0.8mm
Feeding Width: 330mm Gross Weight Per Unit Product: 2.5T
Voltage: 380V 50Hz 3phases Or As Your Requirement Control System: PCL
Key Selling Points: High-accuracy
High Light:

Steel Rain Gutter Roll Forming Machine

,

Metal Rain Gutter Roll Forming Machine

,

Automatic Control Rain Gutter Making Machine

Steel Metal Rain Gutter Roll Forming Machine Automatic Control

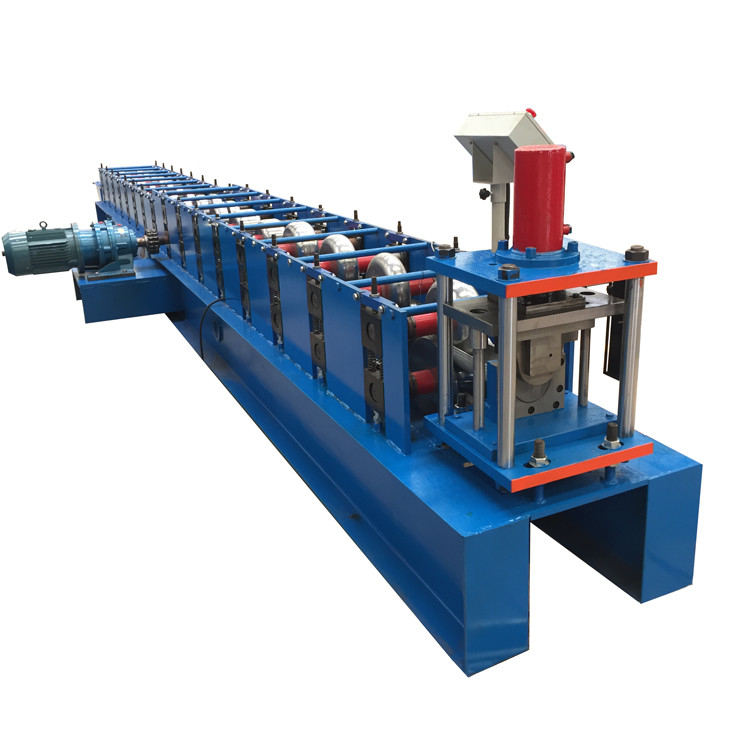

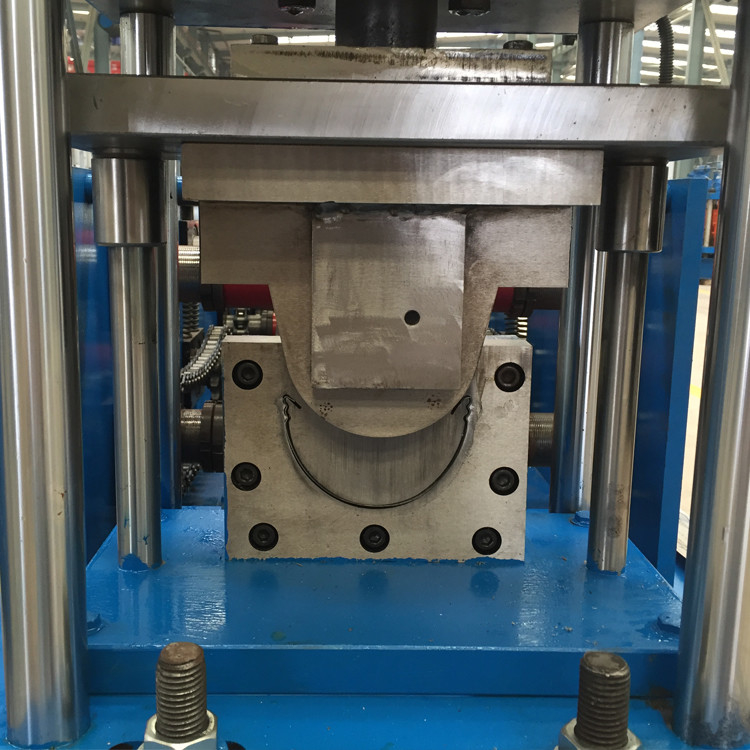

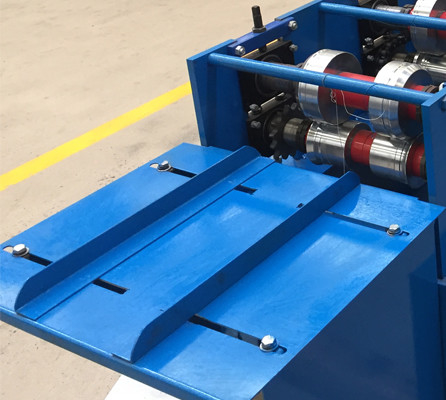

Seamless rain gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.



Specification



Suitable material
PPGI GI AL
Thickness
0.3-0.5mm as per requested.
Power
380V 50Hz 3Phase as per requested.
Main motor
5.5KW
Hydraulic motor
4 KW
Speed
15m/min
Forming stations
12 rows
Roller material
Cr12 steel with vacuum heat treatment HRC57°-60°
Shaft material
45# steel quenched and tempered
Shaft diameter
50mm
Drive
Gear
Screem HMI
Delta , Touch Screen
PLC
Delta , Siemens
Processing precision
Within 1mm
Size
4.6m×1.5m×1.2m
Weight
2.5T





Installation

During the installation and adjustment of the device, our engineers should provide the buyer's personal request to provide training and maintenance of the equipment. Including basic buildings, electrical engineering, hydraulic oil, safety operations and non -standard safety items, test materials, etc.



Guarantee



The warranty will be maintained and during the delivery period during the delivery period. Due to the quality of the equipment during the guarantee period, we will provide parts for free, which is the correct operating condition.



Payment terms



  30% in advance

  70% is paid before shipping
