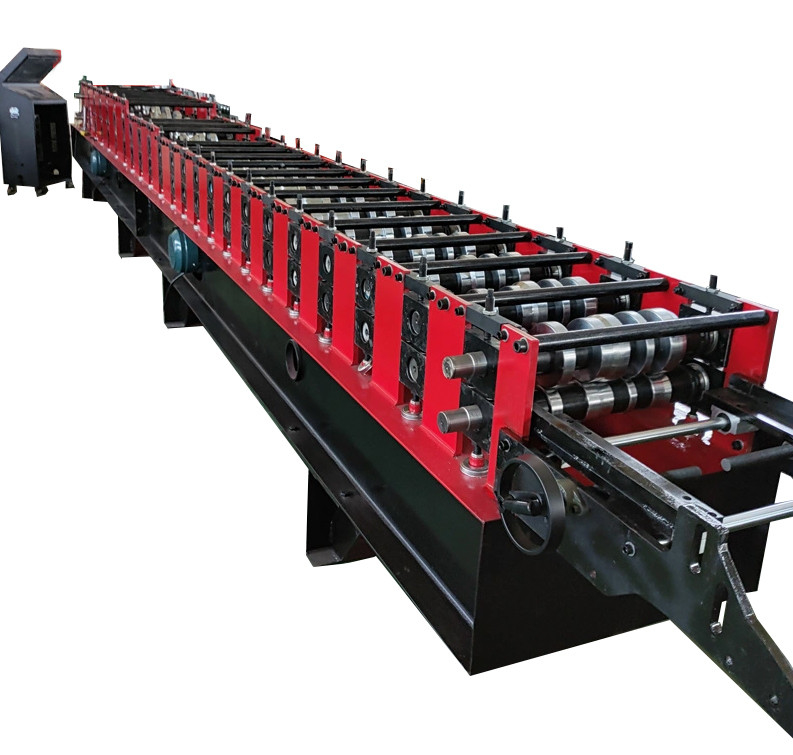

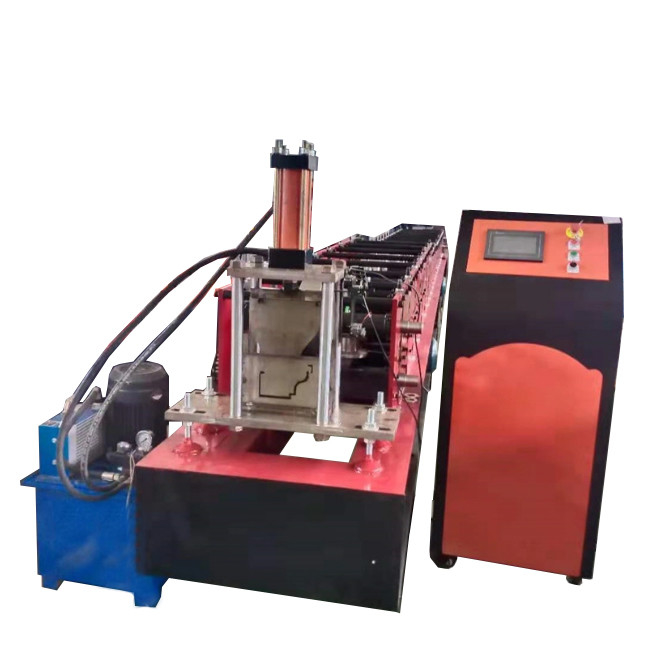

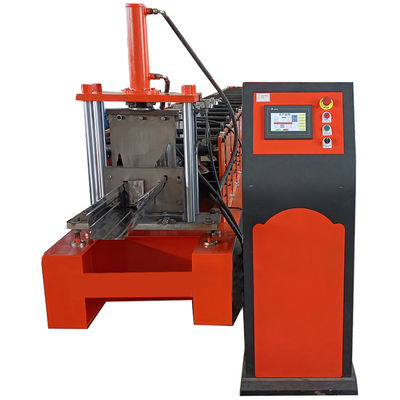

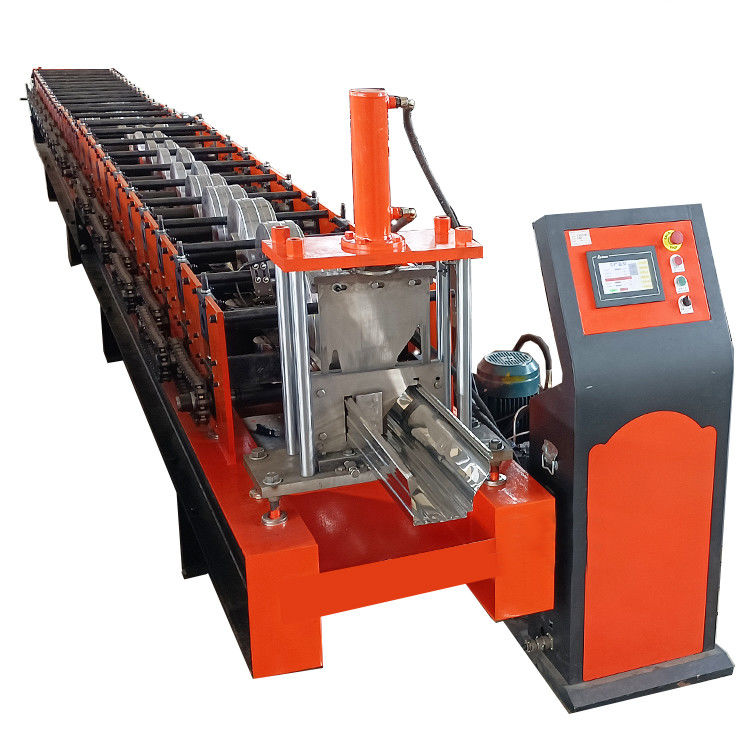

Hydraulic Cutting Rain Collect Gutter Downspout Roll Forming Machine PCL Control

Hydraulic Cutting Rain Collect Gutter Downspout Roll Forming Machine PCL Control
Hydraulic Cutting Rain Collect Gutter Downspout Roll Forming Machine PCL Control

Large Image :  Hydraulic Cutting Rain Collect Gutter Downspout Roll Forming Machine PCL Control

Product Details:
Place of Origin: CHINA
Brand Name: CANGZHOU FMS
Certification: ISO CE
Model Number: Gutter Roll Forming Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Hydraulic Cutting Rain Collect Gutter Downspout Roll Forming Machine PCL Control Production Capacity: 8-12m/min
Cutting Blade Material: Cr 12 Mov Rolling Thinckness: 0.3-0.8mm
Dimension(L*W*H): 7800*1200*1400MM Gross Weight Per Unit Product: 4500kg
Voltage: 380V 50Hz 3phases Or As Your Requirement
High Light:

Steel Rain Gutter Roll Forming Machine

,

Downspout Roll Forming Machine PCL Control

,

Hydraulic Downspout Roll Forming Machine

Hydraulic Cutting Rain Collect Gutter Downspout Roll Forming Machine PCL Control​



Steel Rain Gutter Roll forming machine . After the establishment of the roll, the product is longer than the non -aging -feet PPC pipe. It can make the project more integrated and help enhance the image of all projects. The device is controlled by PLC, the frequency of AC, and adjusting speed technology, and realizes the continuous production of continuous production. Therefore, it is indeed a new type of energy saving and efficient production equipment for steel structures.



Specification



Galvanized Gutter Making Machine Downspout Metal Gutter Roll Forming Machine
Processing material colored steel coil
Material thickness 0.3-0.8mm
Frame design according to design drawing
Main motor power 4 kw
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ70mm
Main motor power 7.5 KW
Max. Line speed of roll former 15m/min
Hydraulic group power 4KW
Material of cutting blade Cr12, hear treatment
Electric Standard 380V /50Hz/3PH or as per customer's requirements
Main frame 300H steel




Installation



During the installation and adjustment of the device, our engineers should provide the buyer's personal request to provide training and maintenance of the equipment. Including basic buildings, electrical engineering, hydraulic oil, safety operations and non -standard safety items, test materials, etc.



Guarantee



The warranty will be maintained and during the delivery period during the delivery period. Due to the quality of the equipment during the guarantee period, we will provide parts for free, which is the correct operating condition. (Natural disasters or factors that humans cannot force are excluded).



Payment terms



  40% in advance

  60% is paid before shipping
