Roof Tile Wall Panel Double Layer Roll Forming Machine Color Steel Galvanized

10m/min Double Roll Forming Machine

Galvanized Double Roll Forming Machine

Cr12 Quenched Double Layer Forming Machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Request A Quote

Product Details

Product Description:

Roof Tile Wall Panel Double Layer Roll Forming Machine Color Steel Galvanized

Tile Type:

Colored Steel

Production Speed:

10-15m/min

Dimension(l*w*h):

7300mm*1500mm*1200mm

Voltage:

380V 50HZ 3Phase Or As Customer Request

Weight:

5000 Kg

Cutting Blade Material:

Cr12 Quenched

Rolling Thinckness:

0.4-0.8 Mm

Highlight:

10m/min Double Roll Forming Machine

Galvanized Double Roll Forming Machine

Cr12 Quenched Double Layer Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

35 sets per month

IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price

Video

2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836

Get Best Price

Video

Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price

Video

Double Layer Roll Forming Machine PLC Control

Get Best Price

86-317-2016816

Contact Now

Product Description

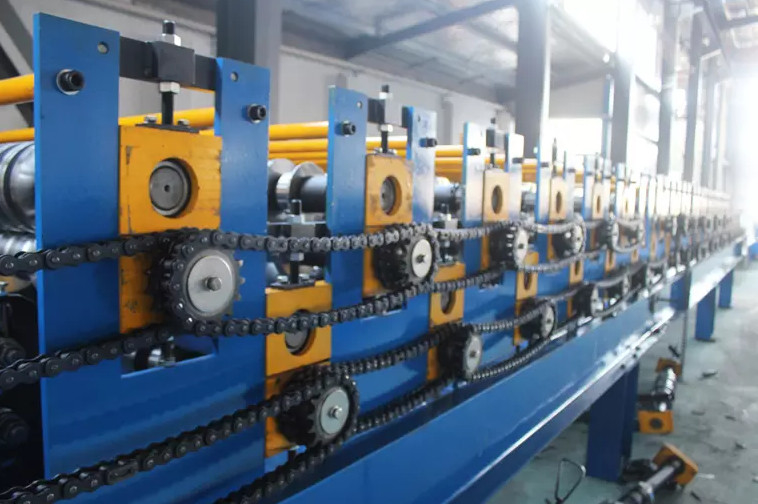

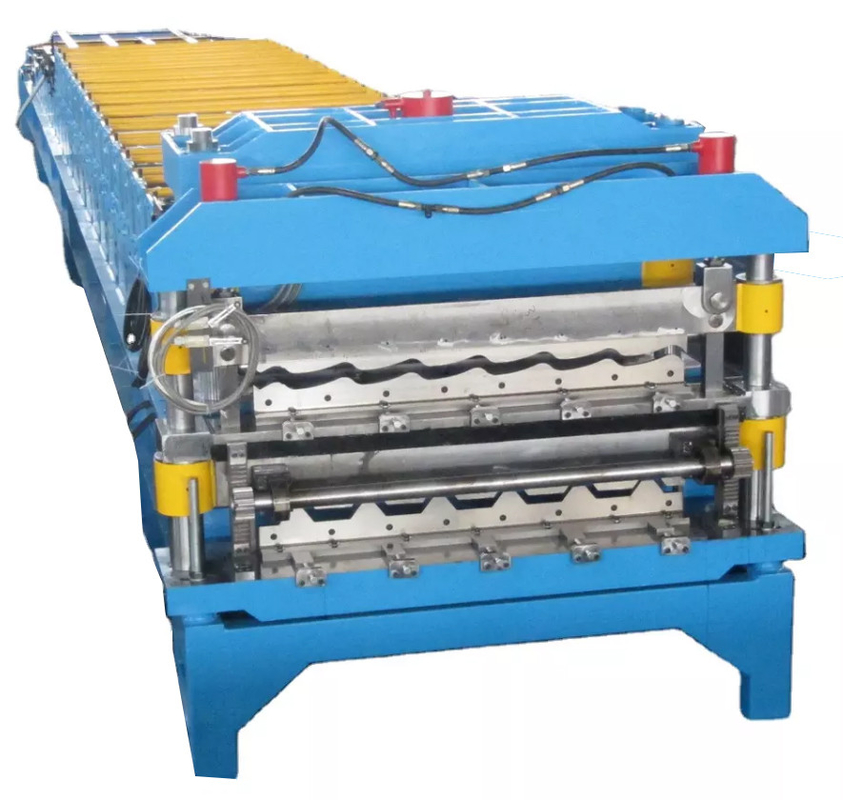

Roof Tile Wall Panel Double Layer Roll Forming Machine Color Steel Galvanized

Company specializing in the productian of Dagong machines, foor plate machine, guardrail plate machine, corrugated tie machine , shearing machine, sub-board machine , highway guardrail , tile machine equipment , automatic tile press , iron Piva machine, iron tile machine, all automatic C-shaped steel machine. glazed tile machine

Detailed Parameters:

Material of the profile	up to 235Mpa, GI or color steel
Thickness range	0.3-0.7mm
Main motor power	5.5kw, AC motor, motor inside of main machine
Roll station	Top layer: about 18 stations Bottom layer: about 20 stations
Shaft diameter	￠70mm
Machine roll forming speed	0-15m/min
Working pressure	12-16Mpa adjustable
Hydraulic power	4kw
Wheel material	45# steel hard chrome plating

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Roof Tile Wall Panel Double Layer Roll Forming Machine Color Steel Galvanized 0
