Metal Roof Tile Roll Forming Machines Double Layer 10 - 18 M/Min

Metal Roof Tile Roll Forming Machines

Double Layer Roof Tile Roll Former

18m/Min Roof Tile Roll Former

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Request A Quote

Product Details

Product Description:

Metal Roof Tile Roll Forming Machines Double Layer Making Machine

Tile Type:

Colored Steel

Production Speed:

10--18 M/min

Dimension(l*w*h):

7300mm*1500mm*1200mm

Voltage:

380V 50HZ 3Phase Or As Customer Request

Weight:

6000 Kg

Cutting Blade Material:

Cr 12 High Grade Steel

Rolling Thinckness:

0.3-0.8mm

Highlight:

Metal Roof Tile Roll Forming Machines

Double Layer Roof Tile Roll Former

18m/Min Roof Tile Roll Former

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

35 sets per month

IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price

Video

2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836

Get Best Price

Video

Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price

Video

Double Layer Roll Forming Machine PLC Control

Get Best Price

86-317-2016816

Contact Now

Product Description

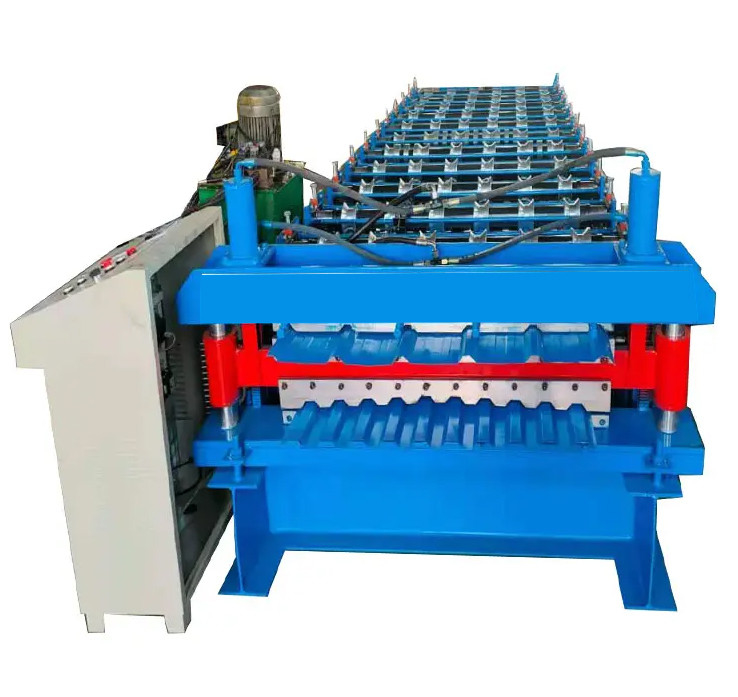

Metal Roof Tile Roll Forming Machines Double Layer Making Machine

Metal Roof Tile Roll Forming Machines Double Layer Making Machine, sharing the same decoiler, drive trains and motors, but using different rolls and different cut offs.The double layer machine is particularly useful where operating or storage space is a problem.For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine,

Detailed Parameters:

The total length of the equipment	Length 7300mm width 1500mm height 1200mm
Equipment weight	53 tons
The motor power	Motor 5.5Kw pump station 5.5Kw working voltage 380V or customized
Production speed	10--18 m/min
The transmission way	1 inch chain drive
rack	Large frame: 350H section steel
shaft	1064:14 row axis 1100:16row axis diameter 70 mm solid shaft
The thickness of the plate	14 mm
Set of	Galvanized pipe finishing, electrostatic spraying
Wheel material	45# steel hard chrome plating
The molding part	Divided into precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient, fast.
Numerical control system	Easy control king, letter letter press button screen, counter,
shear	Iron plate welding frame, hydraulic cylinder automatic shear, hydraulic cylinder automatic pressure
In the thickness of the plate	0.3 mm - 0.8 mm
Into the plate width	1250 mm
accessories	Two sets of feeding rack, vulnerable parts
Warranty period	12 months

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

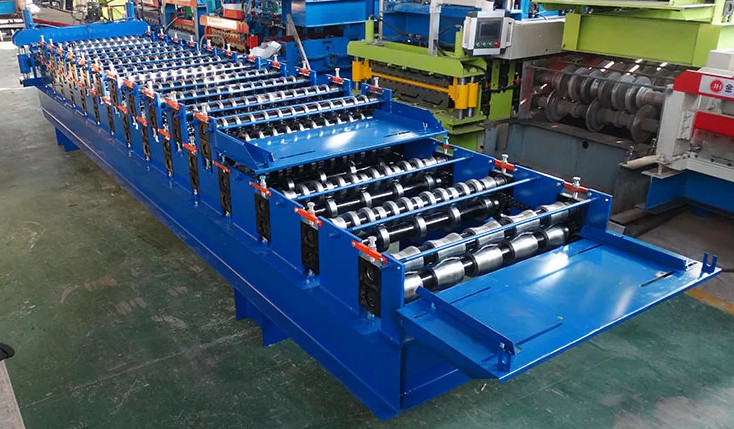

Metal Roof Tile Roll Forming Machines Double Layer 10 - 18 M/Min 0
