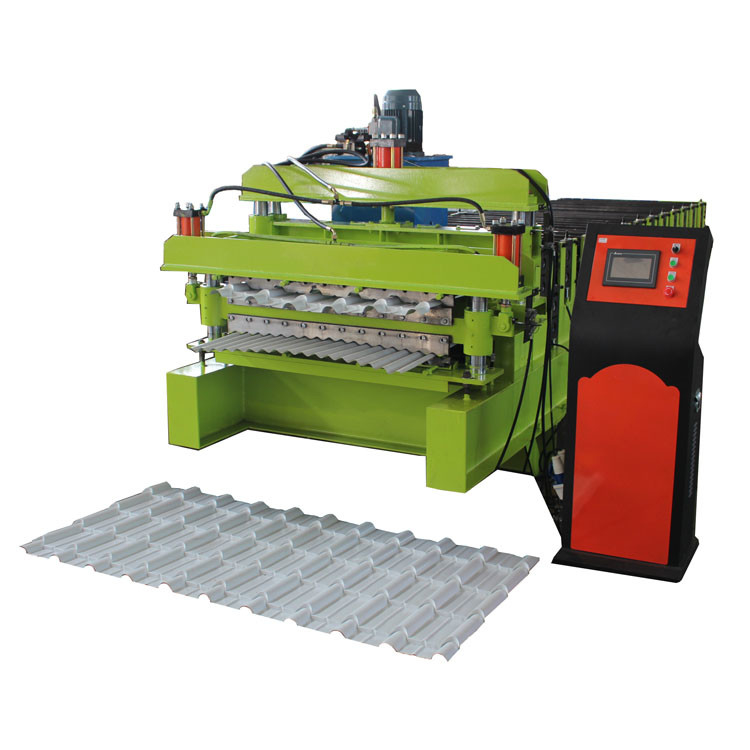

Glazed Tile Wall Panel Double Layer Roll Forming Machine For Building Material

15m/min double roll forming machine

building material double layer forming machine

5.5kw double roll forming machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Request A Quote

Product Details

Product Description:

Building Material Shops Glazed Tile Wall Panel Double Layer Roll Forming Machine

Tile Type:

Colored Steel

Production Capacity:

15 M/min

Dimension(l*w*h):

8.5*1.5*1.7m

Voltage:

380V 50HZ 3Phase Or As Customer Request

Weight:

6500 Kg

Feeding Width:

1000mm-1200mm

Rolling Thinckness:

0.3-0.8mm

Highlight:

15m/min double roll forming machine

building material double layer forming machine

5.5kw double roll forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

35 sets per month

IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price

Video

2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836

Get Best Price

Video

Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price

Video

Double Layer Roll Forming Machine PLC Control

Get Best Price

86-317-2016816

Contact Now

Product Description

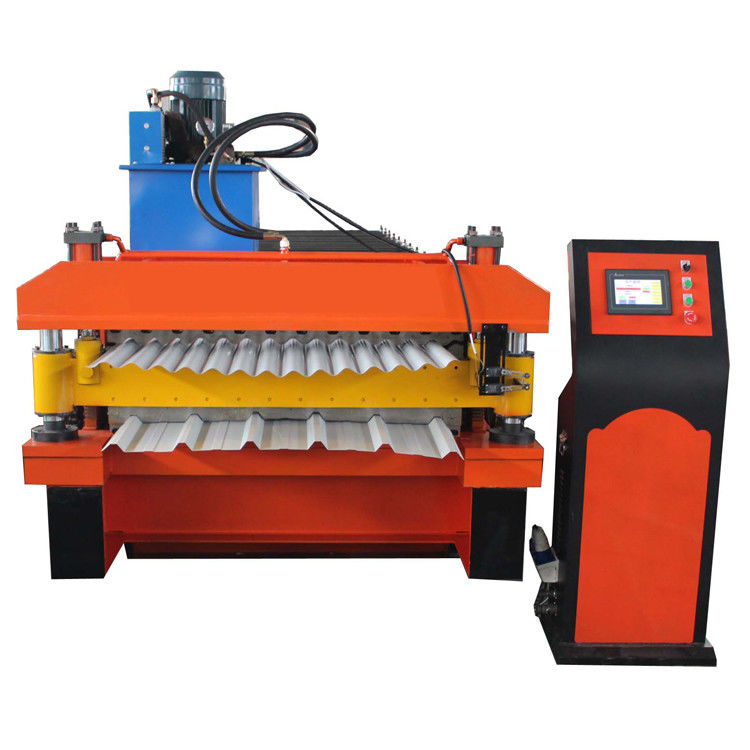

Building Material Shops Glazed Tile Wall Panel Double Layer Roll Forming Machine

Customized 0.3-0.8mm Metal Sheet 8 Rib Trapezoidal And 1035 Glazed Tile Double Layer Roll Forming Machine For Africa

Double layer roll forming machine popular sell in many countries, common roofing sheet rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material

We sell lots of double layer roll forming machine to Guyana, Brazil, Colombia, South Africa, Nigeria etc. We can assure finished products overlap accuracy control in ±1 mm. Size can customize can your need size

Double layer roll forming machine | double deck machine | 2 layer roll forming machine

Detailed Parameters:

No	Item	Parameter
1	Decoiler	5tons electric decoiler (Hydraulic decoiler optional), manual one free
2	Forming speed	12-18m/min
3	Material	G235grade steel or galvanized coil
6	Shaft	Diameter 75mm, all solid
7	Rollers	High grade 45# steel with heat treatment and hard chrome coating 0.04-0.05
8	Main frame system	H350 steel. By blasting
10	Main forming power	5.5kw.
11	Pump Station Power	4Kw, or electric cutting for 3kw
12	Cutting Type	hydraulic cutting or electric cutting
13	Cutting Blade	Cr12Mov with hard treatment, HRC52-68
14	Control System	Delta PLC, Touch screen, Frequency converter
15	Measuring accuracy	Precision +/-1.5mm,with frequency converter
16	Transmission	By single chain 1’
18	Machine weight	About 6500 kg
19	Voltage	380V,50hz, 3phase, as per request

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
