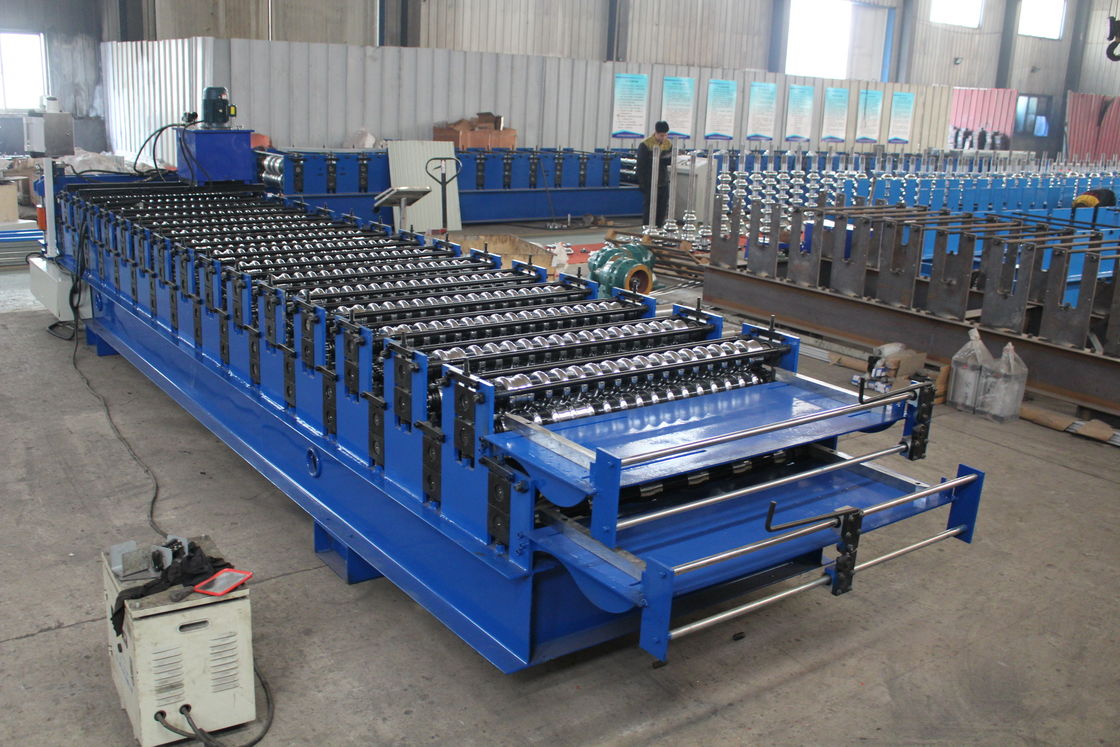

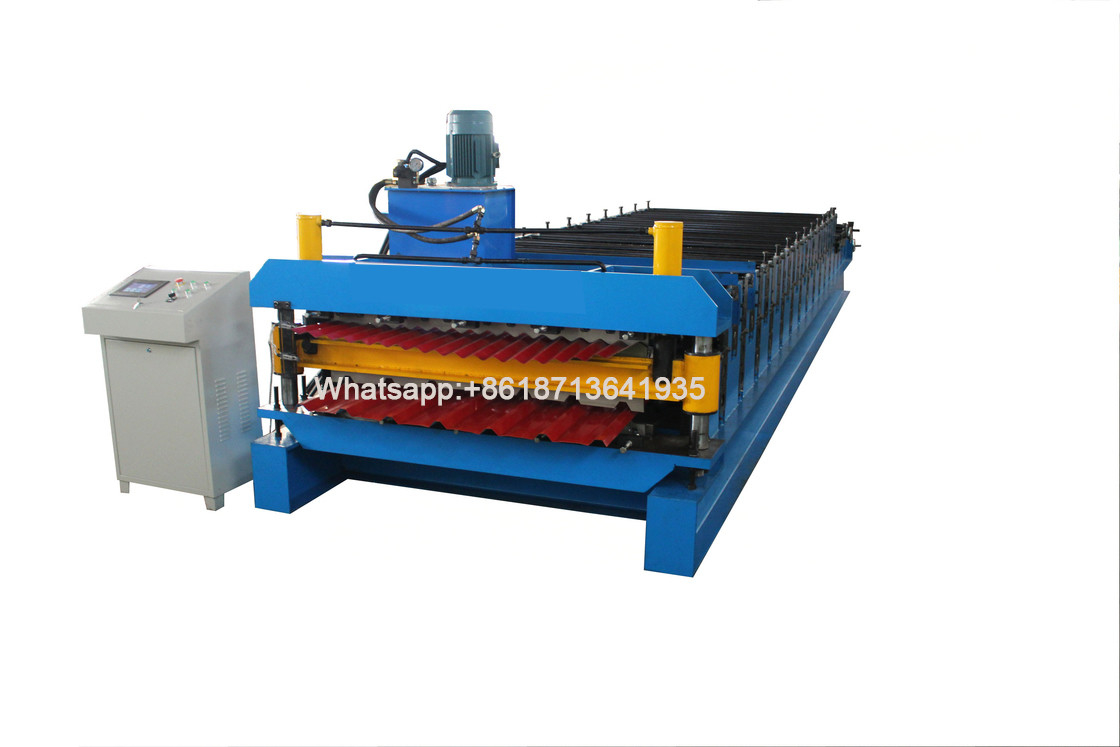

Name: 7.5kw Double Layer Roll Forming Machine GI PPGI 25m/ Min Anti Rusty
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 840-850
Price: 15000.00 USD
Availability: InStock

Home > products > Double Layer Roll Forming Machine >

7.5kw Double Layer Roll Forming Machine GI PPGI 25m/ Min Anti Rusty

7.5kw Double Layer Roll Forming Machine

Double Layer Forming Machine 25m/Min

Anti Rusty Double Layer Forming Machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Model Number:

840-850

Request A Quote

Product Details

Product Description:

7.5kw Double Layer Roll Forming Machine GI PPGI 25m/ Min Anti Rusty

Tile Type:

Colored Steel

Model NO:

840+850

Dimension(l*w*h):

6500*1500*1500

Shaft Diameter:

80mm

Shaft Material:

40Cr Steel

Voltage:

380V 50HZ 3PH

Weight:

3.5 T

Hydraulic Power:

3kw

Material Of Blades:

Gcr12 Quenched

Highlight:

7.5kw Double Layer Roll Forming Machine

Double Layer Forming Machine 25m/Min

Anti Rusty Double Layer Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

35 sets per month

IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price

Video

2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836

Get Best Price

Video

Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price

Video

Double Layer Roll Forming Machine PLC Control

Get Best Price

86-317-2016816

Contact Now

Product Description

7.5kw Double Layer Roll Forming Machine GI PPGI 25m/ Min Anti Rusty

7.5kw Double Layer Roll Forming Machine GI PPGI 25m/ Min Anti Rusty :Decoiler--Feeding--Roll Forming--Cutting--Output Table

Decoiler

Capacity: 5000kg

Width: 1250mm

Type: Hydraulic Or Manual (Optional)

Inner Diameter: 450-550mm

Outter Diameter: 1500mm

Roll Forming Machine

Power: 3kw

Frame panel thickness: 14mm

Bottom Frame: 360H steel

Weight: 5t

Cutting Device

Type: Hydraulic

Driven; 1 inch chain

Power; 3kw

Cutting Blade: Cr12 steel

Hardness for Heat Treatment:HRC55 – 60°

Hydraulic Pump

Power: 3kw

Oil Type: 46# hydraulic oil

Pump Brand: China Brand

Control System

Type: PLC Frequency Control System with touch screen
PLC Brand:Delta
Encoder Brand: Omron

Length Error: ±2mm

Language: English and Chinese

Output Table

Length: 6m

It is simple and used to load finished product.

Detailed Parameters:

Shaft Material	No.45 steel with treatment
Roller Station	up 16 steps down 18 steps
Main Shaft Dimension	70mm
Material Thickness	0.3-0.8mm
Roller Material	No.45 steel with treatment
Working Speed	8-12m/min
Material	PPGI/GI

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
