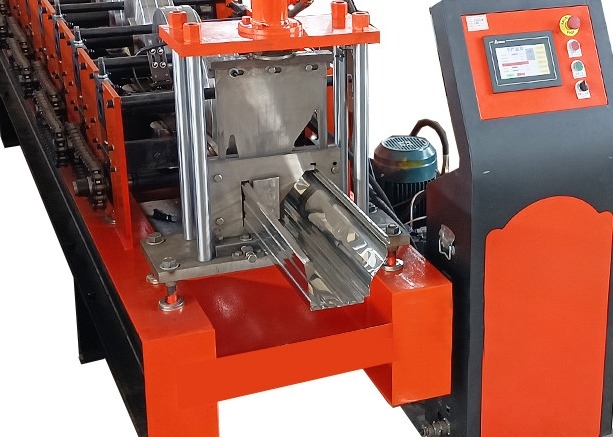

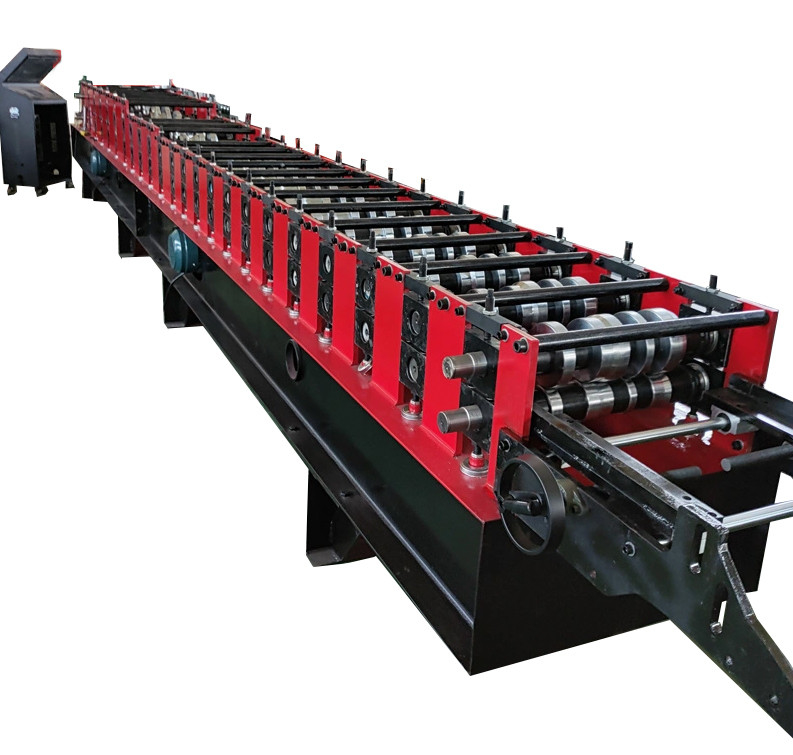

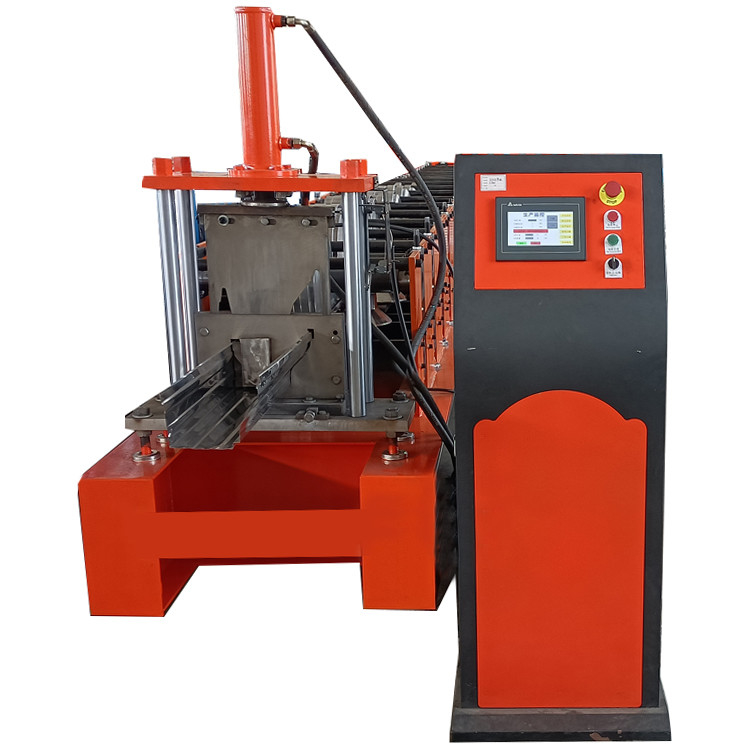

Metal Material Rain Gutter Downspout Cold Forming Machine 15m/Min

Metal Material Rain Gutter Downspout Cold Forming Machine 15m/Min
Metal Material Rain Gutter Downspout Cold Forming Machine 15m/Min

Large Image :  Metal Material Rain Gutter Downspout Cold Forming Machine 15m/Min

Product Details:
Place of Origin: CHINA
Brand Name: CANGZHOU FMS
Certification: ISO CE
Model Number: Down Pipe Roll Forming Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Metal Material Rain Gutter Downspout Cold Forming Machine Low Price Speed: 0-15m/Min
Cutting Blade Material: Cr 12 Mov Hydraulic System: 4.0kw Motor With Cooling Fan
Power: 11kw Side Plate: 18/20/22mm Thickness
Base Frame: 350h/400h/500h Steel Beam Weld Control System: PCL
Raw Material: PPGI/PPGL/Gi/Gl/Alumunium
High Light:

15m/Min Downspout Roll Forming Machine

,

Downspout Cold Forming Machine

,

15m/Min Cold Forming Machine

Metal Material Rain Gutter Downspout Cold Forming Machine Low Price​




   Water gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

Water gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.

   Metal Material Rain Gutter Downspout Cold Forming Machine Low Price is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.



Specification




Details Parameter
ProducT Raw material PPGI /PPGL
Material thickness 0.25-0.8mm
Product cutting length Adjustable
Coil ID 508 mm
Coil width 1250 mm
Coil weight 5T
Decoiler Work type hand type
Structure Steel channel for basic frame
Loading capacity 5 Tons
Coil inner diameter 550-610 mm(adjustable)
Max coil width 1250 mm
Roll
forming
machine
Feeding device Platform, the width is adjustable
Roller stations 22 stages
The distance between 2 stages is 443mm
Roller shaft Shaft material: 45# steel
Shaft diameter: φ70 mm
Roller Roller material: 45# steel
Roller spacer Anti rusty treatment
Work speed 25m/min
Main structure Middle plate weld with structure
Motor power 5.5KW ,SHANGHAI LICHAO BRAND
Transmission 1.0INCH CHAINS
Machine basic frame 400# H steel welded with diagonal bracing inside
Bearing Chinese famous brand: Harbin
PLC
control
system
Frequency brand Delta (original)
PLC brand PLC Delta (original)
Screen type Touch screen also have button
Screen language English / Chinese/Arabic
Low voltage apparatus TAIWAN DELTA
Encoder Omron
Function Cutting to length, quantity and work speed control.
Hydraulic
system
Work type Hydraulic cutting
Driving type By pillar type cylinder
Hydraulic motor power 4.0KW
Cutter material Cr12
Cutting length tolerance ±1-3mm
Product
collect
table
Length 3m
Width 1.3m
Structure Shaped steel welded
Machine weight Around 4Tons





Installation


   During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.



Guarantee



  The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).



Payment terms



  40% in advance

  60% is paid before shipping
