| Product Name: | Full Automatic Downspout Pipe Roll Forming Machine High Efficiency | Production Capacity: | 15 M/min |
|---|---|---|---|
| Weight: | 8500 Kg | Feeding Width: | 500mm |
| Dimension(L*W*H): | 11m*1m*1.2m | Main Power Of Machine: | 5.5kw |
| Voltage: | 380V 50Hz 3phases Or As Requirements | Automation: | Full-Automatic |
| Rolling Thinckness: | 0.3-0.8mm | ||
| High Light: | 15m/min Downspout Pipe Roll Forming Machine,Full Automatic Downspout Pipe Forming Machine |
||

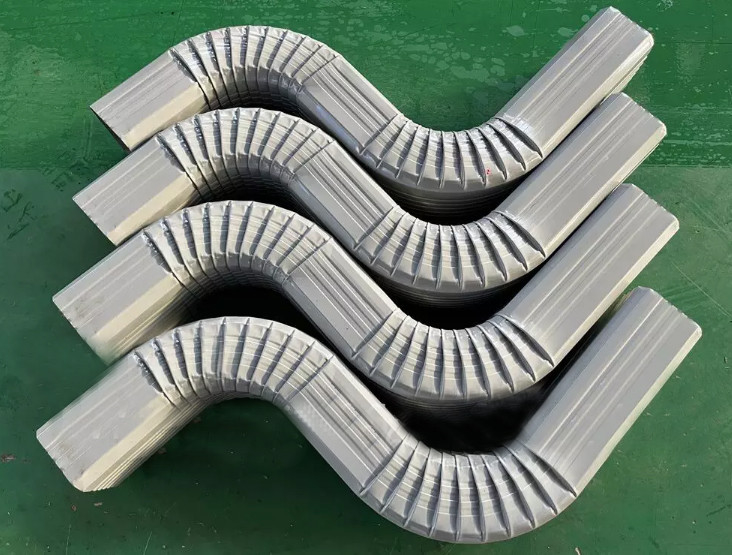

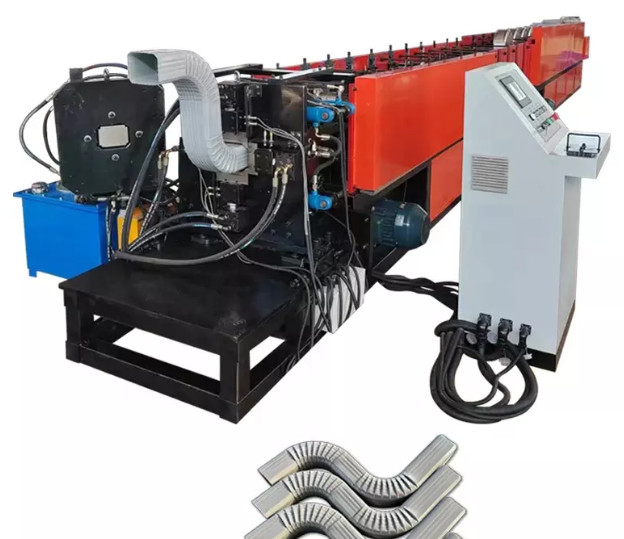

Full Automatic Downspout Pipe Roll Forming Machine High Efficiency
Full Automatic Downspout Pipe Roll Forming Machine High Efficiency Work Flow
Decoiler→Manual Pre-Cutter→Guide Feeding →Roll Forming System→Hydraulic Post Cutter →Exit Rack

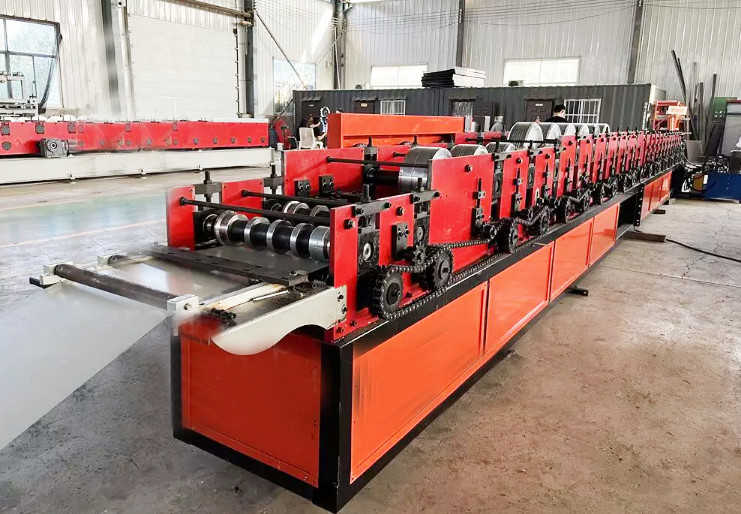

Main Machine
1) Feeding Guide Device
2)Machine Machine
body frame made from H450 type steel by welding Side wall thickness: Q235 T18mm Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust) Shafts Diameter=ф75mm,precision machined Gear/Sprocket driving,about 14-step to form
3)Post hydraulic cutting device
Post to cut,stop to cutting, three pieces type of cutting blade design
Specification
|
Production Capacity
|
15 m/min
|
|
Voltage
|
380V 50Hz 3phases or as requirements
|
|
Dimension(L*W*H)
|
11m*1m*1.2m
|
|
Weight
|
8500
|
|
Warranty
|
2 years
|
|
Key Selling Points
|
Automatic
|
|
Rolling thinckness
|
0.3-0.8mm
|
|
Feeding width
|
500mm
|
|
Warranty of core components
|
2 years
|
|
Core Components
|
Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
|
|
After-sales Service Provided
|
Online Support Video Technical Support
|
|
Machine Color
|
Client's Requriment
|
|
Control box language
|
Add Customer Request Language
|
|
Advantage
|
Long Working Life
|
|
Material of rollers
|
45#steel Hard Chrome Coated
|
|
Cutting type
|
Automatic Hydraulic Cutting
|
|
Length and piece measure
|
Omron Encoder
|
|
Main motor power
|
15kw
|
|
Export port
|
Tiannjin Port
|
|
Need container
|
1*40 Feet
|
Installation
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
Guarantee
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).
Payment terms
40% in advance
60% is paid before shipping
