Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Speed Steel Floor Deck Machine 0.8-1.5mm Thickness Customized | Dimension(L*W*H): | About 12.5mx1.5mx1.4m |
|---|---|---|---|
| Cutting Blade Material: | Cr12 Quenched | Control Type: | PLC System |
| Shaft Material: | High Grade No.45 Forged | Weight: | 6000 Kg |
| Voltage: | 380V 50Hz 3phases | Production Capacity: | 15-20m/min |
| Material Thickness: | 0.8-1.5 Mm | Coil Width: | 1200mm /1220mm / 1250mm |
| High Light: | 1.5mm Steel Deck Roll Forming Machine,0.8mm Deck Floor Roll Forming Machine |
||

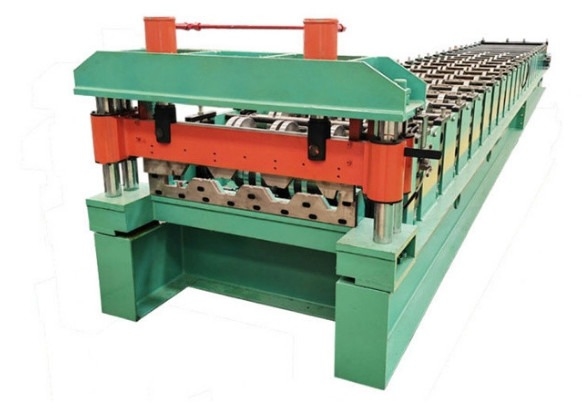

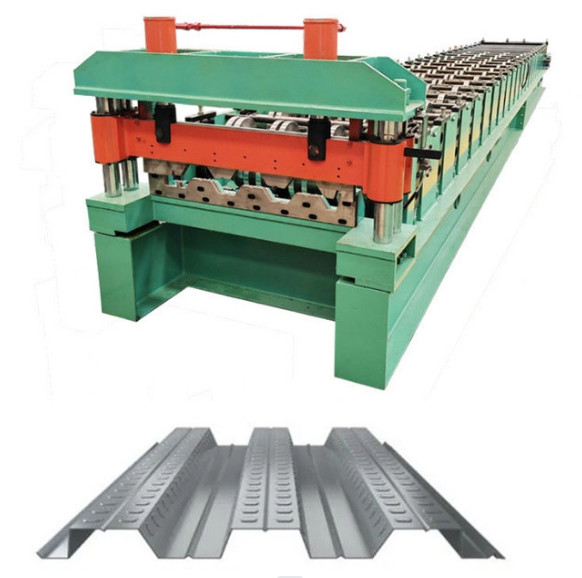

High Speed Steel Floor Deck Machine 0.8-1.5mm Thickness Customized
The floor deck roll forming machine can form the flat sheet into a customized shape, the raw amterial is gi,ppgi,color steel.
The steel floor deck is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops,
cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets,
logistics centers, Olympic venues and gymnasium Steel structures.
Specification
| High Speed Steel Floor Deck Machine 0.8-1.5mm Thickness Customized | |
| Weight | About 3tons |
| Size | About 12.5mx1.5mx1.4m(length x width x height) |
| Color | Machine Main color: blue or can as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.8-1.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 24stations |
| Diameter of forming rollers shafts | 95mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 18.5kw+18.5kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customer’s requirement |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
