| Product Name: | Automation Gutter Roll Forming Rolling Machine With High Quality | Material Thickness: | 0.4-0.5mm |
|---|---|---|---|
| Motor: | 11+4kw | Cutting Material: | Cr12MOV |
| Shaft Diameter: | 75mm | Speed: | 12-15m/Miin |
| Voltage: | 380V 50Hz 3phases Or As Your Requirement | Control System: | PCL |
| Key Selling Points: | High-accuracy | ||
| High Light: | Automation Gutter Roll Forming Machine,15m/Miin Gutter Roll Forming Machine,Automation Gutter Roll Forming Machine |
||

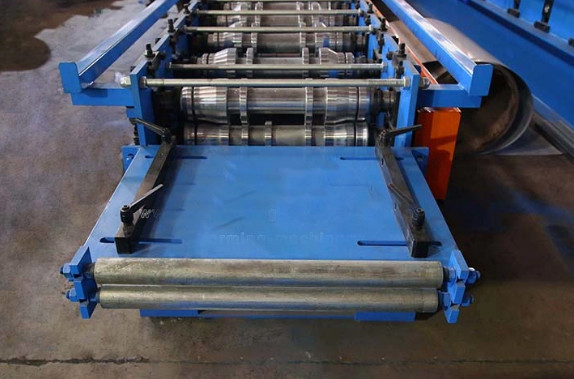

Automation Gutter Roll Forming Rolling Machine With High Quality
Post Hydraulic Cutting Device
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 4KW ;
Cutting tool material:Cr12MoV, Heat treatment to HRC58-62 degree

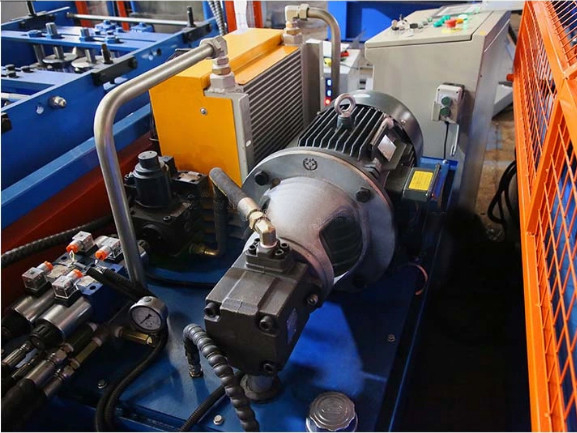

The cutting power is provided by the main engine hydraulic station
Specification
|
Use
|
Automation Gutter Roll Forming Rolling Machine With High Quality
|
|
Effective width
|
152.4mm
|
|
Voltage
|
380V 50Hz 3phases
|
|
Material Thickness
|
0.4-0.5mm
|
|
Applicable material
|
PPGI
|
|
Real forming speed
|
12-15 m/min(Not include cutting time)
|
|
Main Motor
|
11KW
|
|
Shafts Diameter
|
ф75mm
|
|
thickness
|
0.04mm
|
|
Core Components
|
Motor, Pump, PLC
|
|
Machine Control System
|
PLC(Touch Screen)
|
Installation
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
Guarantee
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).
Payment terms
40% in advance
60% is paid before shipping
