Product Details:
Payment & Shipping Terms:
|
| Product Name: | Metal K Type Rain Gutter Roll Forming Machine Long Service Life | Production Capacity: | 0-15m/min |
|---|---|---|---|
| Cutting Blade Material: | Cr 12 Mov | Dimension(L*W*H): | 8000*1100*1500mm |
| Feeding Width: | 305mm | Gross Weight Per Unit Product: | 2.5T |
| Voltage: | 380V 50Hz 3phases Or As Your Requirement | Control System: | PCL |
| Key Selling Points: | High-accuracy | ||
| High Light: | Metal Rain Gutter Roll Forming Machine,K Type Rain Gutter Making Machine,15m/min Rain Gutter Making Machine |
||

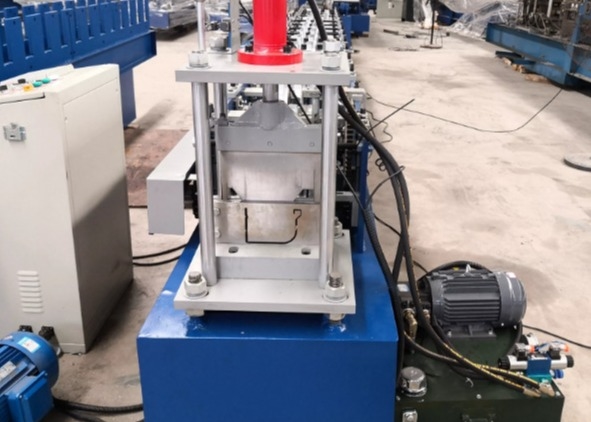

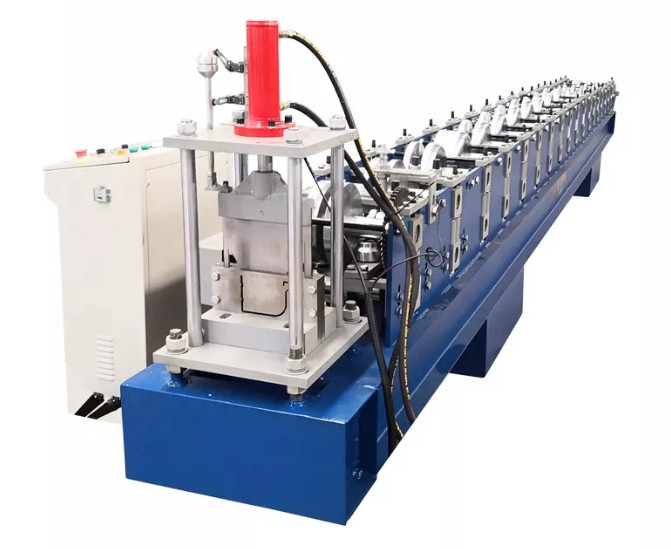

Metal K Type Rain Gutter Roll Forming Machine Long Service Life

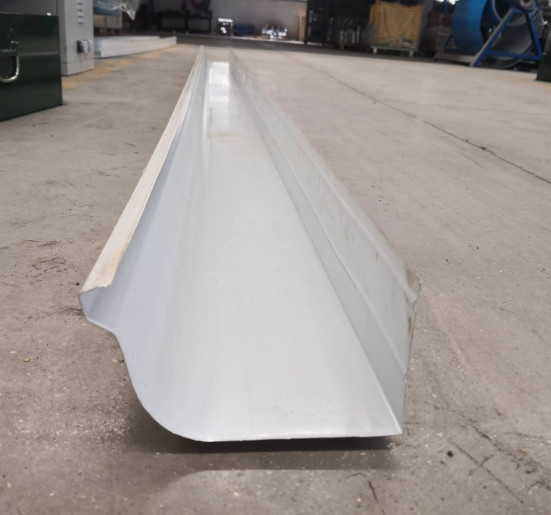

Metal K Type Rain Gutter Roll Forming Machine Long Service Life can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.
Rain gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.
The machine's features
1. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.
3. We can make and design will kinds of roll forming machine according to customer's request.
Specification
|
Use
|
Metal Steel Rain Gutter Roll Forming Machine for Roof
|
|
Production Capacity
|
0-15m/min
|
|
Voltage
|
380V 50Hz 3phases
|
|
Dimension(L*W*H)
|
8000*1100*1500mm
|
|
Weight
|
2800kg
|
|
Key Selling Points
|
Long Service Life
|
|
Rolling thinckness
|
0.5mm
|
|
Feeding width
|
305mm
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Motor, Pump, PLC
|
|
Forming Speed
|
0-15m/min
|
|

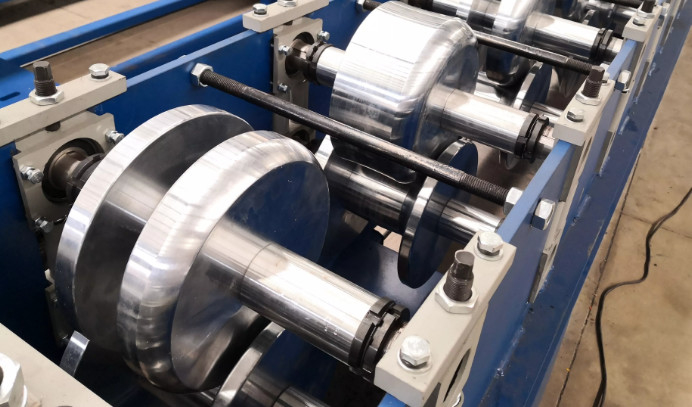

Roll Stations
|
18
|
|
Raw Material
|
Galvanized Sheet
|
|
Steel Thickness
|
0.5mm
|
|
Machine Type
|
YX90-148
|
|
Machine Control System
|
PLC(Touch Screen)
|
Installation
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
Guarantee
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).
Payment terms
40% in advance
60% is paid before shipping
