| Product Name: | Automatic Metal Water Gutter Roll Forming Machine Steel Roofing Metal Water Gutter | Speed: | 45m/min |
|---|---|---|---|
| Cutting Blade Material: | Cr 12 Mov | Rolling Thinckness: | 0.3-0.8mm |
| Feeding Width: | 330mm | Gross Weight Per Unit Product: | 2.5T |
| Voltage: | 380V 50Hz 3phases Or As Your Requirement | Control System: | PCL |
| Key Selling Points: | High-accuracy | ||
| High Light: | Automatic Water Gutter Roll Forming Machine,Metal Water Gutter Roll Forming Machine,5.5KW Siemens Roll Forming Machine |
||

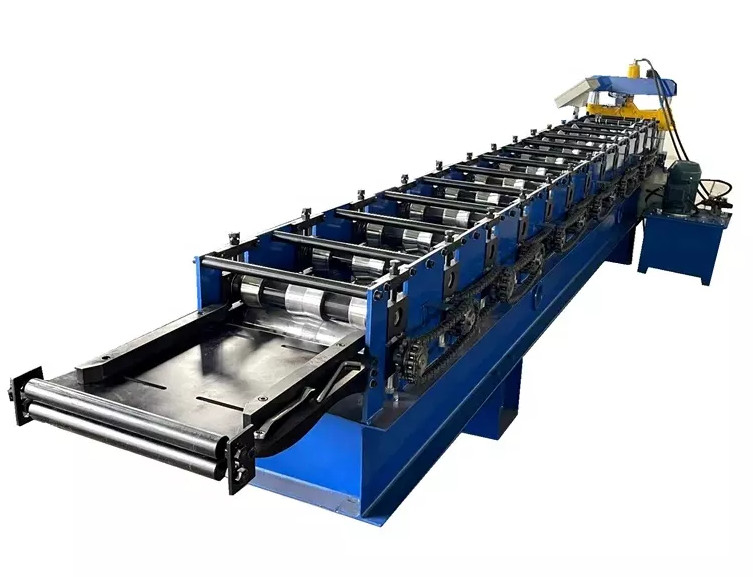

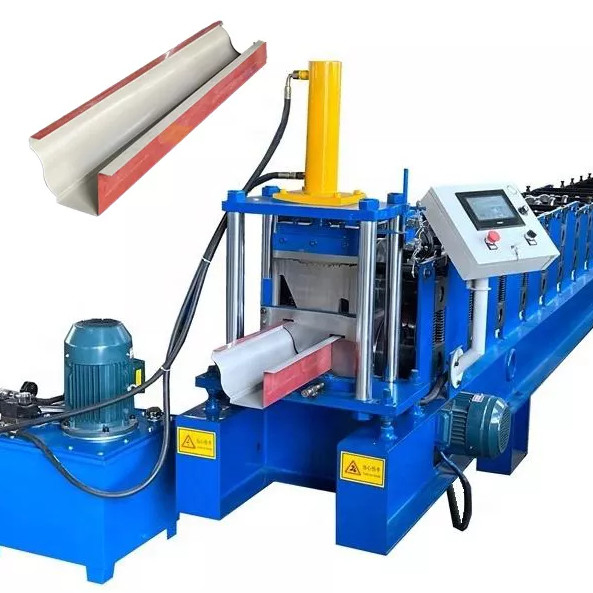

Automatic Metal Water Gutter Roll Forming Machine Steel Roofing Metal Water Gutter
Automatic Metal Water Gutter Roll Forming Machine Steel Roofing Metal Water Gutter can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.
Specification
|
Suitable material
|
PPGI GI AL
|
|
Thickness
|
0.3-0.5mm as custom
|
|
Power
|
380V 50Hz 3Phase as custom
|
|
Main motor
|
5.5KW Siemens
|
|
Hydraulic motor
|
4KW Siemens
|
|
Speed
|
45m/min
|
|
Forming stations
|
12 rows
|
|
Roller material
|
Cr12 steel with vacuum heat treatment HRC57°-60°
|
|
Shaft material
|
45# steel quenched and tempered
|
|
Shaft diameter
|
50mm
|
|
Drive
|
Gear
|
|
Screem HMI
|
Delta , Touch Screen
|
|
PLC
|
Delta , Siemens
|
|
Processing precision
|
Within 1mm
|
|
Size
|
4.6m×1.5m×1.2m
|
|
Weight
|
2.5T
|
Installation
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
Guarantee
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).
Payment terms
40% in advance
60% is paid before shipping
