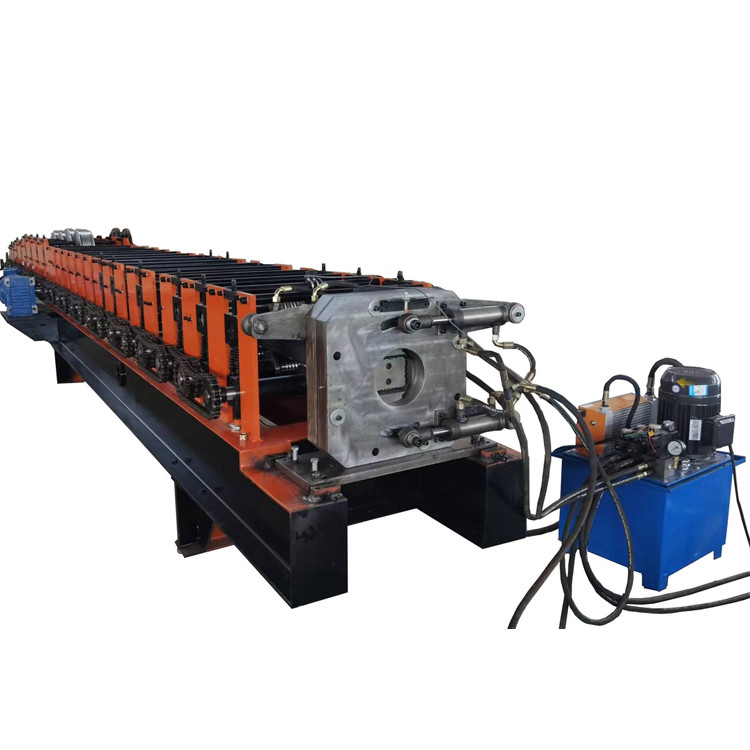

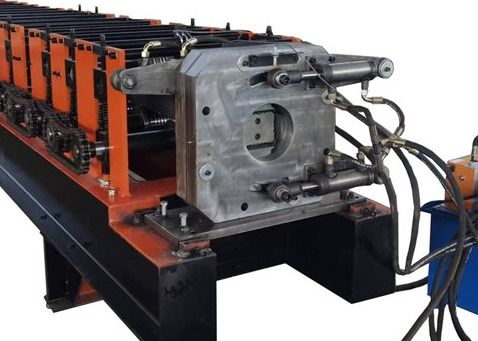

Square Downpipe Roll Forming Machine Hydraulic Cutting

Square Downpipe Roll Forming Machine Hydraulic Cutting

15m/min Square Downpipe Roll Forming Machine

ISO Square Downpipe Roll Forming Machine

Place of Origin:

CHINA

Brand Name:

CANGZHOU FMS

Certification:

ISO CE

Model Number:

Down Pipe Roll Forming Machine

Contact Us
Request A Quote
Product Details
Product Name:
Down Pipe Roll Forming Machine For High Qualitynew Design Square Pipe Making Machine
Production Capacity:
0-15m/min
Cutting Blade Material:
Cr 12 Mov
Rolling Thinckness:
0.3-0.8 Mm
Dimension(L*W*H):
8.5*1.65*1.5m
Feeding Width:
1220mm
Voltage:
380V 50Hz 3phases Or As Your Requirement
Automation:
Full-Automatic
Cutter Type:
Hydraulic Cutting
Highlight:

15m/min Square Downpipe Roll Forming Machine

,

ISO Square Downpipe Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
Product Description

Down Pipe Roll Forming Machine For High Qualitynew Design Square Pipe Making Machine

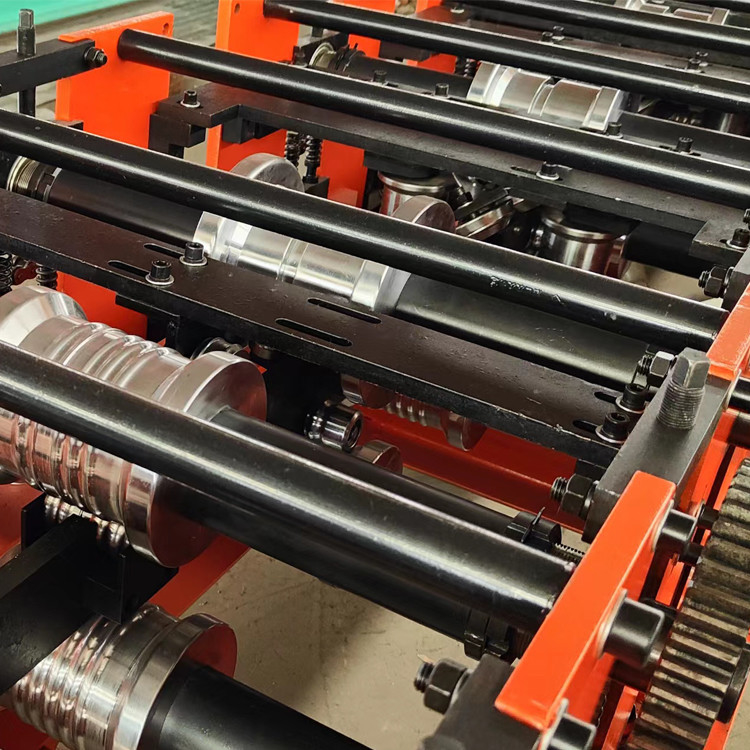

  Cangzhou FMS Roll Forming Machinery Co., Ltd. is a professional manufacturer engaged in research, development, production, sale and service of roll forming machine. Down Pipe Roll Forming Machine For High Qualitynew Design Square Pipe Making Machine downspout roll forming machine/ Water down pipe,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table.



Specification

Name
Down Pipe Roll Forming Machine For High Qualitynew Design Square Pipe Making Machine
Tile Type
Steel
Use
gutter downpipe
Production Capacity
0-15m/min
Dimension(L*W*H)
8.5*1.65*1.5m
Weight
4500kg
Warranty
1 Year
Key Selling Points
Energy saving
Rolling thinckness
0.3-0.8mm
Feeding width
within 600mm
Warranty of core components
1.5 years
Core Components
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Control system
Delta PLC
After-sales Service Provided
Online Support Video Technical Support
Certification
ISO CE
Raw material
GI PPGI
Cutting blade material
Cr 12 Mov
Profiles
Customized
Decoiler
3tons
Need container
40GP
Main motor power
5.5kw



Installation

  During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and  maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.


Guarantee

  The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).


Payment terms

  40% in advance
  60% is paid before shipping
