Product Details:
Payment & Shipping Terms:
|
| Product Name: | Building Material Highway Guardrail Roll Forming Machine 2-4mm Thickness | Raw Material: | Galvanized Steel With 2-4mm Thickness |
|---|---|---|---|
| Cutting Blade Material: | Cr 12 High Grade Steel | Rollers Material: | GCr15,Cr12,SKD11 Quenching Treatment:HRC58-62（optional） |
| Voltage: | 380V.50HZ.3Phase | Specification: | About 15M*1.5M*1.6M |

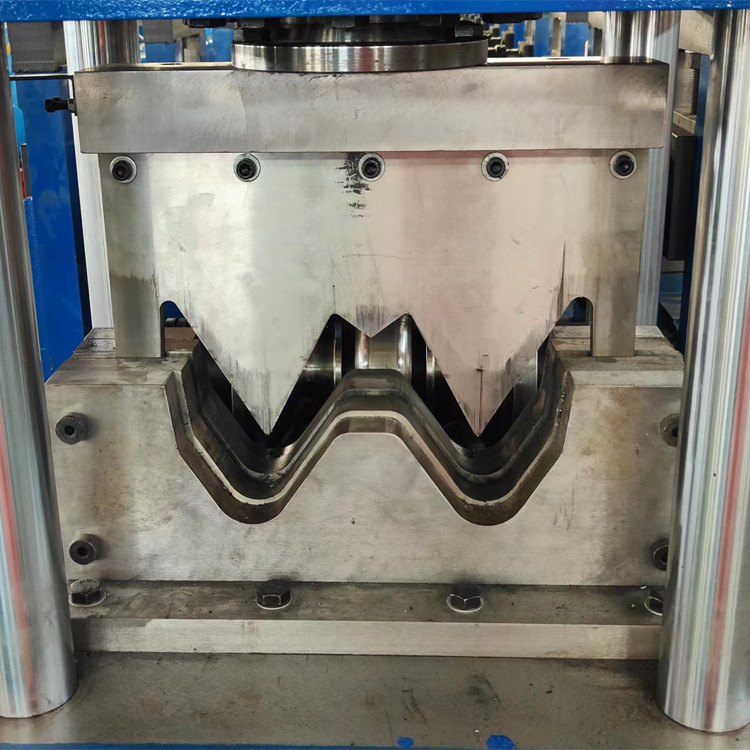

| Shaft Material: | High Grade No.45 Forged | Cutting Type: | Hydraulic Cutting |
| Machine Weight: | 12.5T | Machine Framing: | 400H Steel |
| High Light: | 4mm Highway Guardrail Forming Machine,Galvanized Steel Highway Guardrail Forming Machine,2mm Highway Guardrail Roll Forming Machine |
||

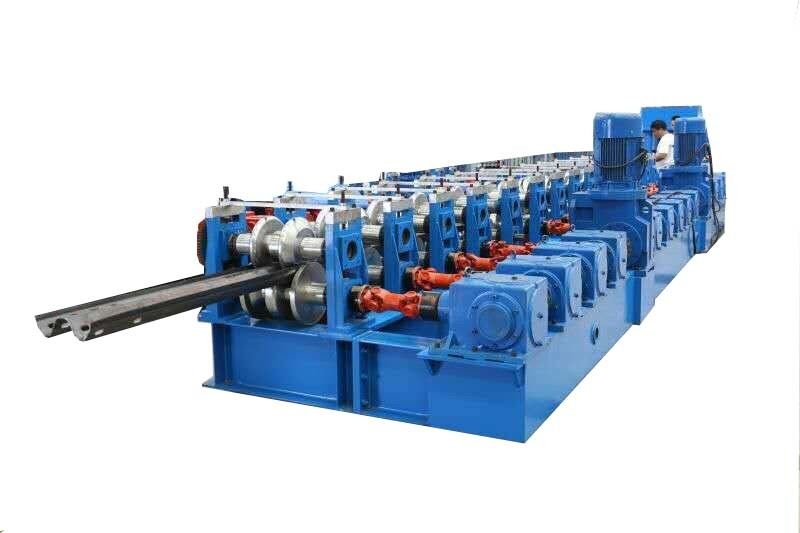

Building Material Highway Guardrail Roll Forming Machine 2-4mm Thickness

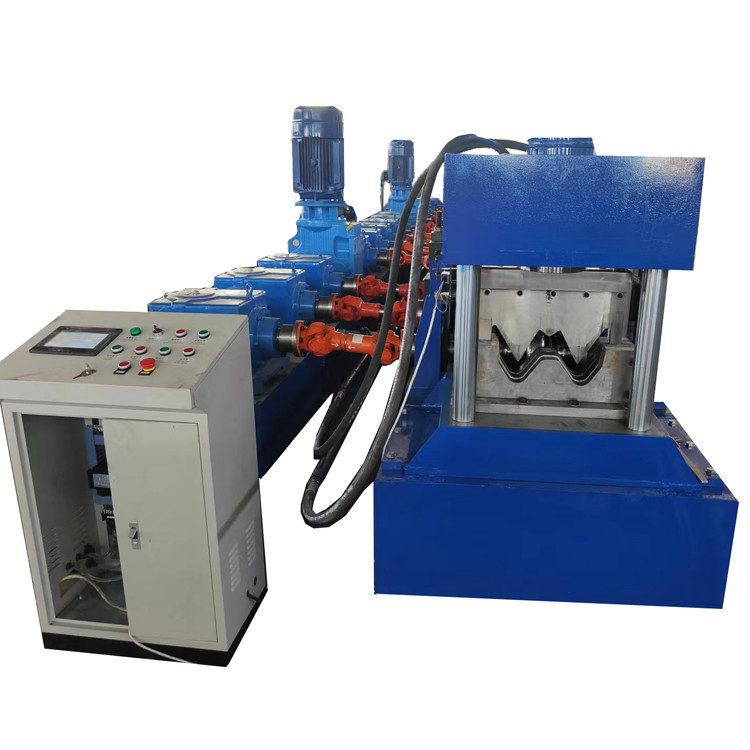

Building Material Highway Guardrail Roll Forming Machine 2-4mm Thickness.Processes: Hydraulic de-coiler-Leveling device--Punching station--Roll forming machine-PLC system-Hydraulic system-Cutter-Output table
Our High Speed Cold Steel Two waves Three Waves Highway Guardrail Roll Forming Machine produce high quality w beam guardrail, one product machine can produce products of a wide rang of specifiations. highway 2 wave and 3 wave guardrail are the most popular.
highway road guardrail W shape bumpls road barrier making machine cold roll forming.Highway Guardrail plate is mainly used in national high-speed railway, highway road reconstruction projects and industrial hardware products and other industries. When subjected to external forces, the deformation of guardrail plate and column can absorb impact force to protect pedestrians and vehicles.Is a common road safety emergency protection facilities.
Specification
| Material: Steel Strips | |
| Equipment operation | Automatically |
| Voltage | AC380/50Hz or at buyer’s requirement. |
| Thickness of sheet(mm) | Within4mm |
| Productivity | 8-9m/min |
| Diameter of shaft | 95mm |
|
Dimension of main structure(mm) Theoretical data for design |
About 15M*1.5M*1.6M |
| Weight | 12.5T |
| Material of rollers | GCR15, quenching and chroming |
| Total power(kw) | 66KW |
| Power of hydraulic system | 22KW |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 60 working days after the down payment is received.
