Product Details:
Payment & Shipping Terms:
|
Product Name: | Solar Panel Frame Strut Bar Roll Forming Machine 41x41mm 41x21mm | Key Selling Points: | Automatic |
---|---|---|---|
Production Capacity: | 8-9m/min | Voltage: | 380V 50Hz 3phases |
Dimension(L*W*H): | About 9500*1000*1200Mm | Hydraulic Station: | 5.5KW |
Weight: | 10000 Kg | Roller Material: | 45# Forged Steel |
Cutting Type: | Hydraulic Cutting | Rolling Thinckness: | 1.5-2.5mm |
Materia Of Cutting: | Cr12Mov | ||
High Light: | Roll Forming Machine 41x41mm,Strut Bar Roll Forming Machine,Roll Forming Machine 41x21mm |

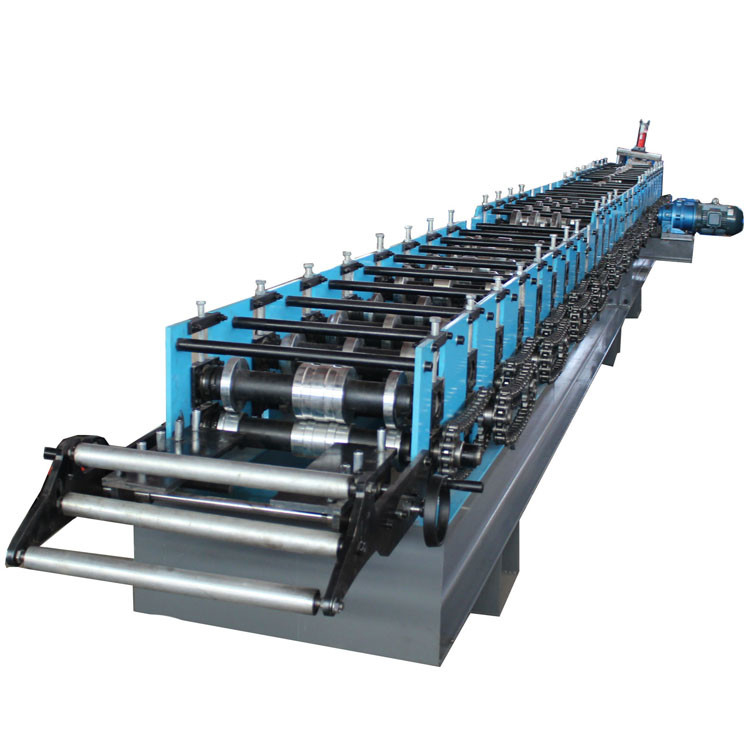

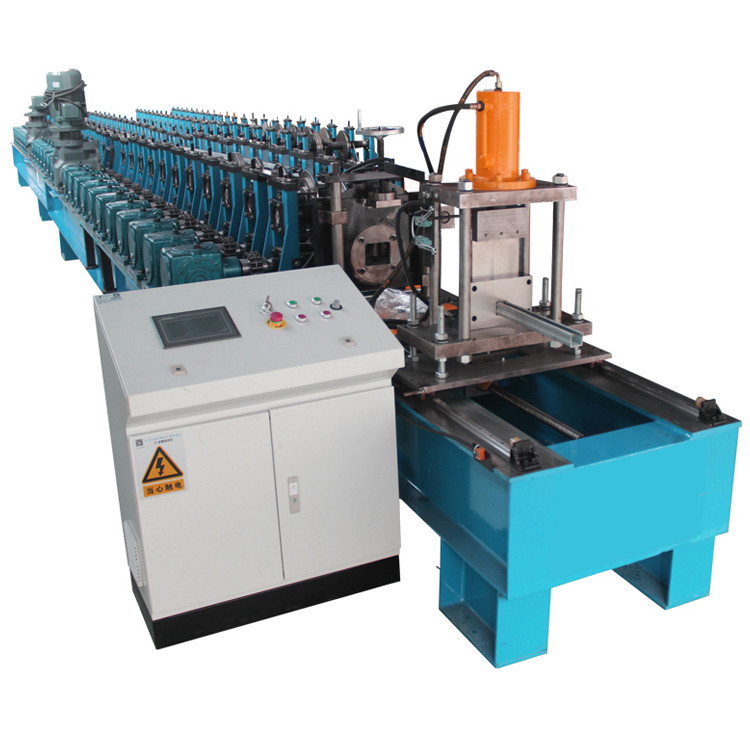

Solar Panel Frame Strut Bar Roll Forming Machine 41x41mm 41x21mm
CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD is a professional manufacturer designing and producing roll forming machines established in June 1995.
Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine,Solar Panel Frame Strut Bar Roll Forming Machine etc.
specifications
Forming stations
|
About 20-22 stations or according to you profile drawings
|
Machine structure
|
Optional 1: wall panel structure
Optional 2: cast iron strcture |
Rollers material
|
GCr15,quenching treatment:HRC58-62; Cr12, SKD11(optional)
|
Way of drive
|
Chain drive or Gearbox drive(optional)
|
Raw material request
|
Cold rolled or hot rolled steel,galvanized steel,SS316L, Mild Steel
|
Whole line working speed
|
0-25m/min
|
Length precision
|
6+-1.0mm
|
Punching system
|
Hydraulic punching or punching press machine(option)
|
Cutting system
|
Non stop cutting or servo Tracking cutting
|
Inverter
|
Siemens,Mitsubishi, panasonic (option Brand)
|
PLC
|
Siemens,Mitsubishi, panasonic (option Brand)
|
Main Power with reducer
|
18.5KW WH Chinese Famous
|
Cutting holder
|
Servo following cutting
|
Motor power of hydraulic station
|
5.5KW
|
Cutting type
|
Hydraulic drive, cut after forming
|
Material of cutting blade
|
Cr12Mov , quenching process
|
2. Repairs will not be performed even during the guarantee period in the follow circumstances
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.Guarantee
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
