|Product Name:||Cr12MOV Quenched Rolling Shutter Strip Making Machine Shutter Door Roll Forming Machine||Raw Material:||Galvalume, Galvanized, PPGI|
|Working Speed:||15-20m/min||Thickness:||0.5-0.8mm Or 0.8-1.5mm|
|Voltage:||380V 50Hz 3phases||Cutting:||Hydraulic|
|Forming Rollers Material:||No.45 Steel Coated With Chromed Treatment||Cutter Material:||CR12|
Quenched Rolling Shutter Strip Making Machine,
Quenched Shutter Door Roll Forming Machine,
20m/min Shutter Door Roll Forming Machine

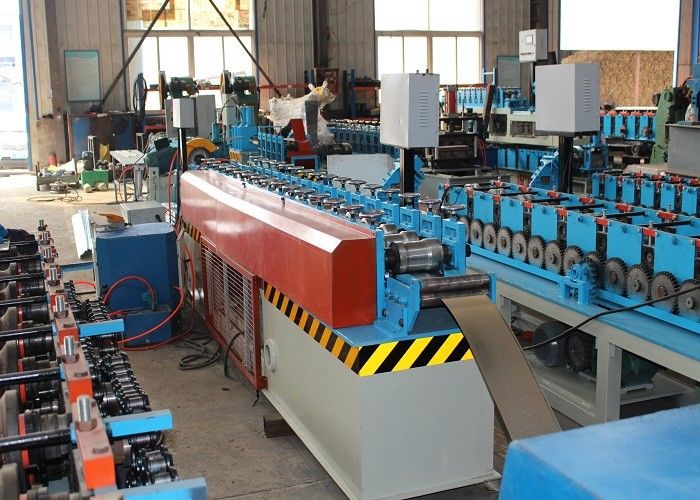

Cr12MOV Quenched Rolling Shutter Strip Making Machine Shutter Door Roll Forming Machine
Cr12MOV Quenched Rolling Shutter Strip Making Machine Shutter Door Roll Forming Machine is the most common roller shutter doors in the market, because it's strong and durable, offering high security at affordable cost.
Consisted of solid interlockig galvanized steel slats, with steel end clips on both sides of curtain to prevent lateral movement, this type of door is designed and widely used for industrial, commercial, residential applications.
Our roller shutter door roll forming machine making this galvanized steel roller shutter door very well, if you want to produce shutter door, please contact me.
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 8 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
Main Roll Forming Machine
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
|Size||About 5.6mx1.2mx1.3m(length x width x height)|
|Color||Main color: blue or as your requirement|
|Warning color: yellow|
|Suitable Raw Material|
|Material||Galvanized Steel Coils|
|Thickness||0.5-0.8mm or 0.8-1.5mm|
|Main Technical Parameters|
|Quantity of forming rollers stations||11-12|
|Diameter of forming rollers shafts||60mm|
|Roll Forming Speed||15-20m/min|
|Forming rollers material||No.45 steel, coated with chromed treatment|
|Cutter material||CR12 mould steel, with quenched treatment|
|Controlling system||PLC and Converter|
|Electric Power requirement||Main motor power: 4kw|
|Hydraulic unit motor power: 3kw|
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
40% in advance as down payment
60% is paid before the shipment is processed
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
