Aluminum Shutter Door Rolling Machine 380V 50Hz High Grade No.45 Forged

Aluminum Shutter Door Rolling Machine 380V 50Hz High Grade No.45 Forged

Aluminum Shutter Door Rolling Machine

Forged Shutter Door Rolling Machine

Shutter Door Rolling Machine 380V 50Hz

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU FMS

Certification:

ISO CE

Model Number:

Shutter Door

Contact Us
Request A Quote
Product Details
Product Name:
Aluminum Shutter Door Rolling Machine 380V 50Hz High Grade No.45 Forged
Raw Material:
Galvalume, Galvanized, PPGI
Weight:
About 3.5tons
Material Thickness:
0.3 Mm - 0.8 Mm
Voltage:
380V 50Hz 3phases
Production Capacity:
15-20 M/min
Shaft Material:
High Grade No.45 Forged
Cutter Material::
CR12 Mould Steel With Quenched Treatment
Highlight:

Aluminum Shutter Door Rolling Machine

,

Forged Shutter Door Rolling Machine

,

Shutter Door Rolling Machine 380V 50Hz

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
Product Description

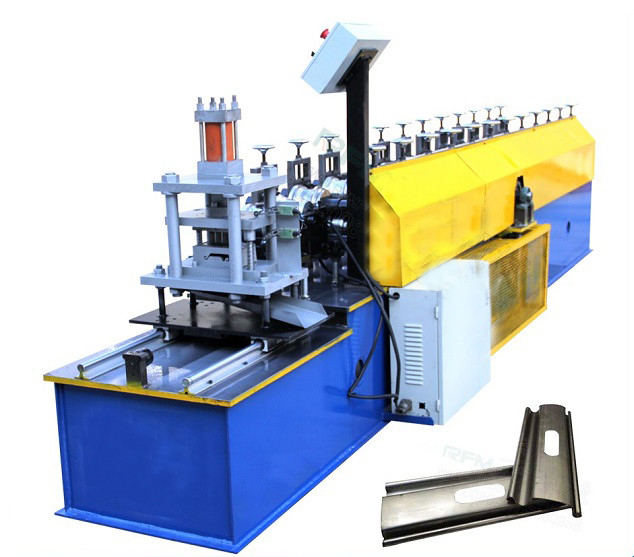

Aluminum Shutter Door Rolling Machine 380V 50Hz High Grade No.45 Forged



  1. This shutter door roll forming machine is widely used for garage door /commercial door / industrial door and so on .
  2. A whole shutter door main inculde three parts , shutter door salt and sliding U guide rail with bottom strip . These three part work together to      give us a safity environment .
  3. it can embossing different patterns according to customer's requirements. Meanwhile, it has manual and automatic two operate model, in this    way, client can easy operat this machine.
  As to the shutter door can protect the shop or garage well , it is very popular in the world and has a large market .



Specification

Machine Specifications
Size About 5.6mx1.2mx1.3m(length x width x height)
Color Main color: blue or as your requirement
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.5-0.8mm or 0.8-1.5mm
Yield Strength 235Mpa
Main Technical Parameters

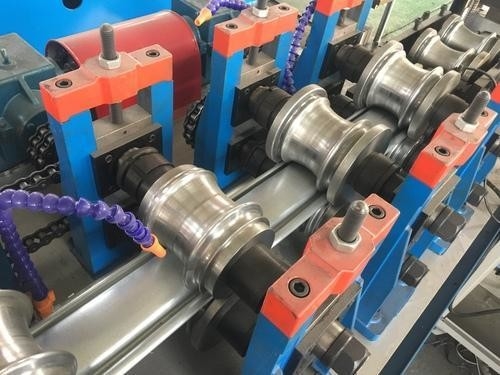

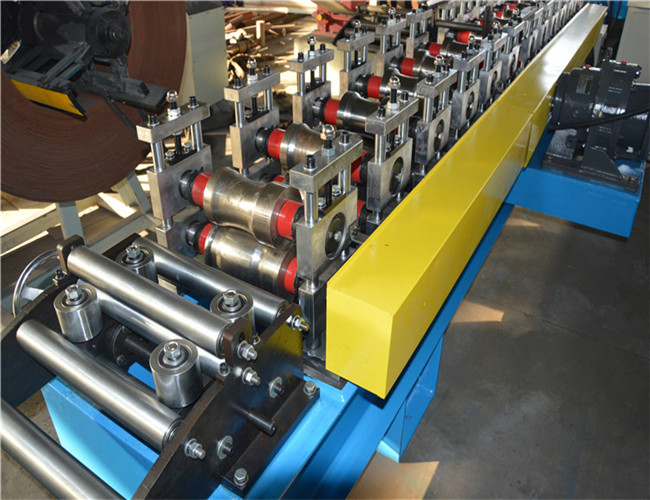

Quantity of forming rollers stations 11-12
Diameter of forming rollers shafts 60mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 4kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer’s requirement

Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
  2. Repairs will not be performed even during the guarantee period in the follow circumstances


- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
