45# Forged Steel Cable Tray Roll Forming Machine High Productivity

45# Forged Steel Cable Tray Roll Forming Machine High Productivity
45# Forged Steel Cable Tray Roll Forming Machine High Productivity 45# Forged Steel Cable Tray Roll Forming Machine High Productivity

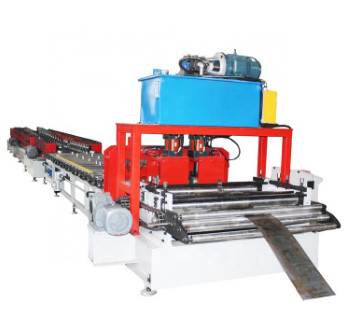

Large Image :  45# Forged Steel Cable Tray Roll Forming Machine High Productivity

Product Details:
Place of Origin: China
Brand Name: FMS
Certification: CE
Model Number: Cable Tray
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: China Factory Cable Tray Roll Forming Machine Cold Forming Machine Production Line Production Capacity: 8-15 M/min
Profile Height: 914-1450mm Voltage: 380V 50Hz 3PH As Per Requested
Main Motor: 7.5 Kw Rolling Thinckness: 0.8-2mm
Automation: Automatic Roller Material: 45# Forged Steel
Dimension(L*W*H): 36*1.5*1.8m
High Light:

15m/min Cable Tray Roll Forming Machine

,

7.5kw Cable Tray Roll Forming Machine

China Factory Cable Tray Roll Forming Machine Cold Forming Machine Production Line



   China Factory Cable Tray Roll Forming Machine Cold Forming Machine Production Line adopt coil production material to form CT100-600 cable ladder Profiles through 5 Ton hydraulic decoiler, Leveling, Servo feeding, Hydraulic Pre-Punching Machine, Main cable ladder roll forming part, Post hydraulic cutting, hydraulic station, PLC control system and Non-power type support table.The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.Working Speed: about 0-15 m/min ( excluding punching & cutting time);

    Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.

specifications



item
value
Applicable Industries
Hotels, Building Material Shops, Restaurant, Home Use
Production Capacity
8-15 m/min
Voltage
380v
Dimension(L*W*H)
36*1.5*1.8m
Weight
1500kg
Warranty
1 Year
Key Selling Points
High Productivity
Rolling thinckness
0.8-2mm
Feeding width
914-1450mm
Core Components
Motor, Other, Pump, PLC

Payment terms and Delivery



  40% in advance as down payment
  60% is paid before the shipment is processed
FOB: Tianjin Xingang Port
  The Delivery Time: 30 days after the down payment is received.
