Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial 7/8'' Corrugated Sheet Roll Forming Machine Metal Roof Making Machine | Dimension(l*w*h): | 5500*1500*1400mm |
|---|---|---|---|
| Voltage: | 380V 50Hz 3phases | Production Capacity: | 15-22m/min |
| Material Width: | 1000mm | Effictive Width:: | 850mm |
| Raw Material Thickness: | 0.3-0.8mm | Weight: | 3000KG |
| High Light: | 8'' Corrugated Sheet Roll Forming Machine,7'' Corrugated Sheet Roll Forming Machine,8'' Corrugated Roof Sheet Making Machine |
||

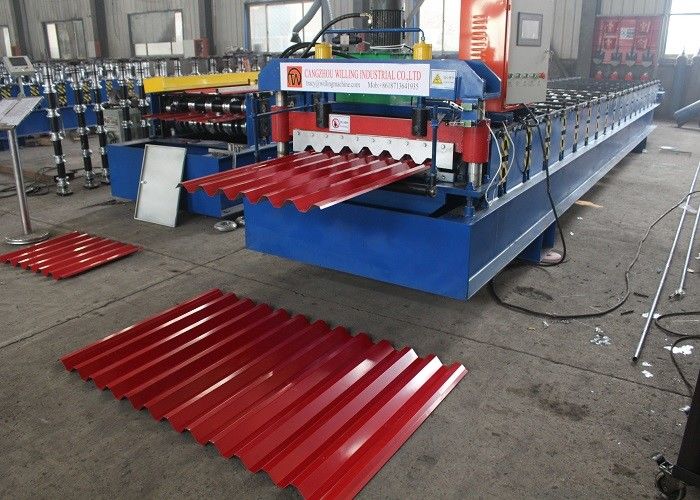

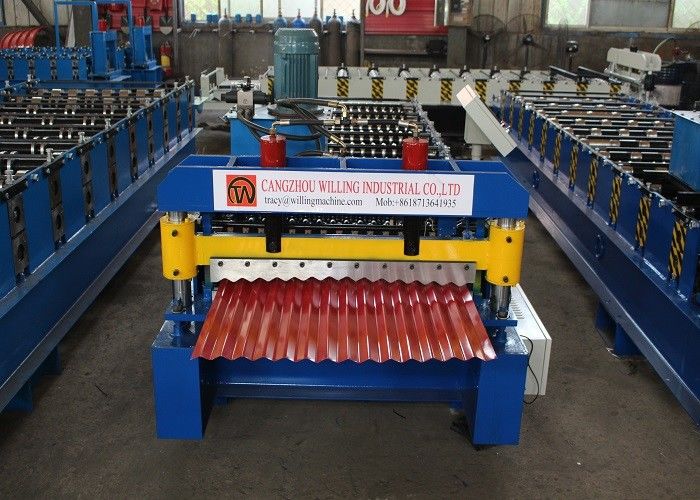

Industrial 7/8'' Corrugated Sheet Roll Forming Machine Metal Roof Making Machine
On the basis of traditional roll forming machines, we also develop new computer fully automatic roll forming machines, roof and
wall panel forming machines, glazed tile forming machines, floor bearing plate forming machines, high-speed barrier devices,
double color steel tile molding machines, C and Z steel machines, arch appliances, sandwich composite plate machines, shearing
machines, bending machines, and heat insulation sandwich composite machines. Our products have reached the advanced level in the
same industry. As beautiful appearance, reasonable structure, and tile-based standards of our products, they are popular among new
and old customers. Our products are exported to more than 40 countries and regions.
Competitive Advantage
1. Pretty appearance
2. Various special model
3. mature foreign trade team
4. professional designing team
5. Lifetime maintenance
Equipment Detailed Parameters:
|
name of products
|
Industrial 7/8'' Corrugated Sheet Roll Forming Machine Metal Roof Making Machine
|
|
|
1
|
Suitable to process
|
Color steel plate, galvanized sheet, aluminum coils and etc.
|
|
2
|
Width of the feeding material
|
1000mm or make as customer need
|
|
3
|
Roller station
|
9-11 rows
|
|
4
|
Thickness of feeding material
|
0.3-0.8mm
|
|
5
|
Productivity
|
10-18m/min
|
|
6
|
Rollers' material
|
45# steel
|
|
7
|
Diameter of shaft
|
70mm
|
|
8
|
Voltage
|
380V 50Hz 3phases
|
|
9
|
Wall thickness of main forming machine
|
14mm steel plate
|
|
10
|
Main forming machine body
|
350 mm H steel
|
|
11
|
Motor power
|
3+3kw
|
|
12
|
Size
|
5500*1500*1400mm
|
|
13
|
Weight
|
About 3000kg
|
1. Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.
2. Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.
3. Q: How does your factory do regarding quality control?
A: Quality is priority.To all willing people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.
4. Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.
5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
