Product Details:
Payment & Shipping Terms:
|
| Raw Material: | PPGI/AL | Weight: | 1300kg |
|---|---|---|---|
| Dimension(l*w*h): | 10.5*1.5*1.4m | Product Name: | Roofing Sheet Making Machine Roll Forming With 18 Stations Simple Structure |
| Production Capacity: | 15 M/min | Material Width: | 1220mm/1450mm |
| Roller Material: | 380V 3 Phase 50Hz | PLC Control System: | Automatic |
| Thickness: | 0.3-0.8mm | Power: | 15kw+5.5KW |
| High Light: | 15m/min Roofing Sheet Making Machine,18 Stations Roofing Sheet Making Machine,PPGI Roofing Sheet Making Machine |
||

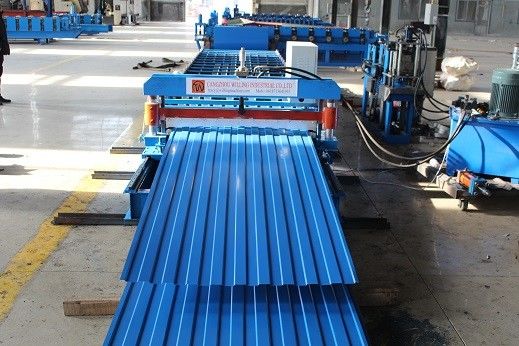

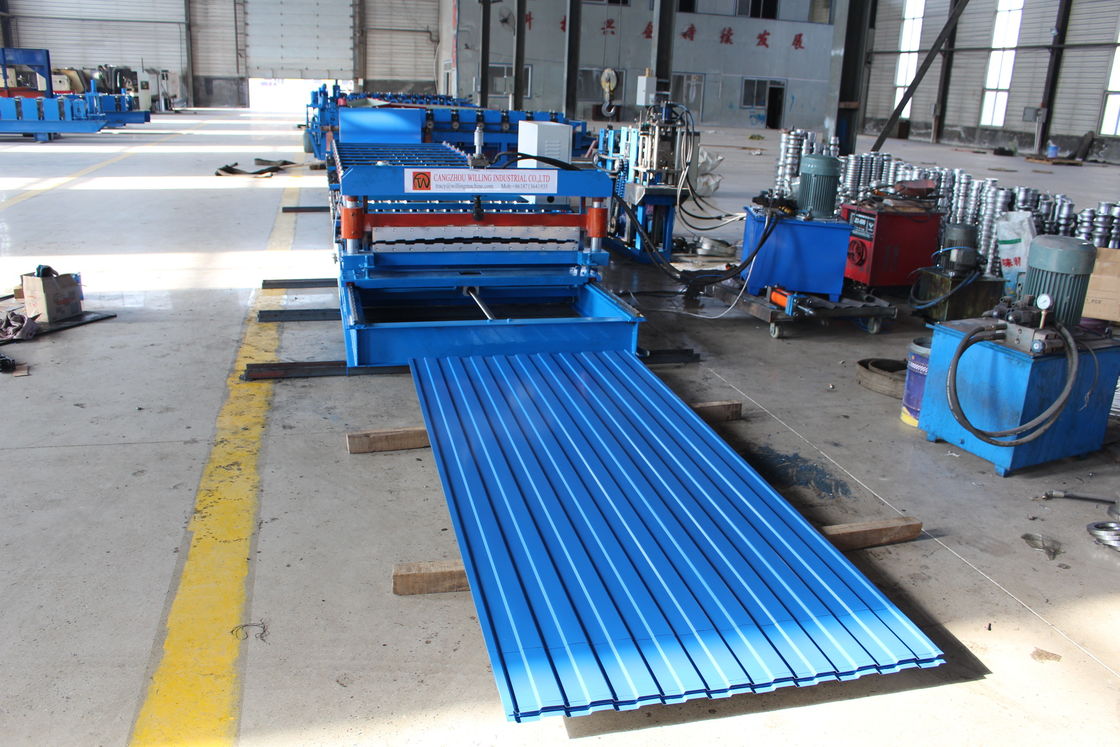

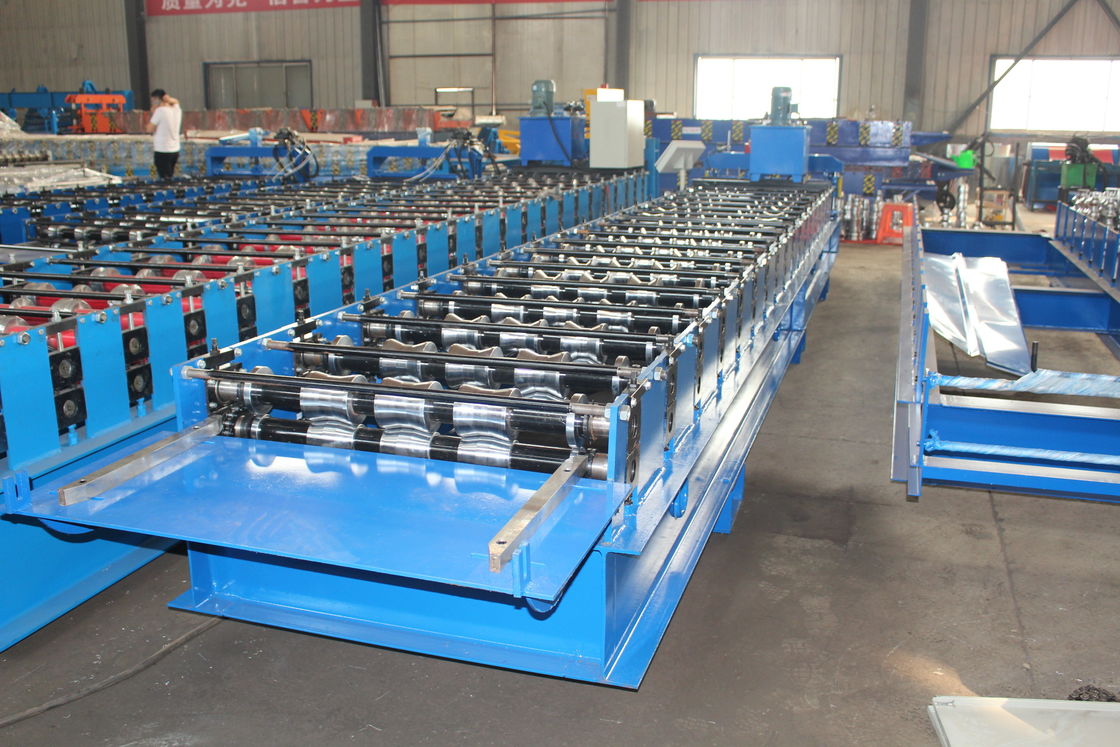

Roofing Sheet Making Machine Roll Forming With 18 Stations Simple Structure
This machine mainly producing steel roof/ wall sheet .The final product trapezoidal sheet.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 914/1000/1220/1250 mm coil sheet |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 13 stations |
| 4 | Shaft Diameter | 75 mm |
| 5 | Productivity | 8-15 m/min |
| 6 | Rollers' material | 45# steel with 0.05 mm chrome |
| 7 | Shaft material | 45# steel with 0.05 mm chrome |
| 8 | Weight | 6.5 tons |
| 9 | length | 5.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5 tons |
| 13 | Motor | 5.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1 inch |
| 16 | Cutting system | Hydraulic cutter |
