Full Automatic 7 Ribs High Capacity roll Forming Machine 900 Long Span

7 Ribs Roof Roll Forming Machine

7 Ribs Roll Forming Machine

900 Long Span Roll Forming Machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Model Number:

900

Request A Quote

Product Details

Raw Material:

PPGI/AL

Weight:

1300kg

Dimension(l*w*h):

8200mm(L)*1550mm(W)*1150mm(H)

Product Name:

Full Automatic 7 Ribs High Capacityroll Formg Machine 900 Long Span

Forming Speed:

20-30m/min

Material Width:

1220mm/1450mm

Roller Material:

380V 3 Phase 50Hz

Customized:

Customized

Thickness:

0.3-0.8mm

Power:

15kw+5.5KW

Highlight:

7 Ribs Roof Roll Forming Machine

7 Ribs Roll Forming Machine

900 Long Span Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

30 sets per month

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Get Best Price

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Get Best Price

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Get Best Price

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Get Best Price

86-317-2016816

Contact Now

Product Description

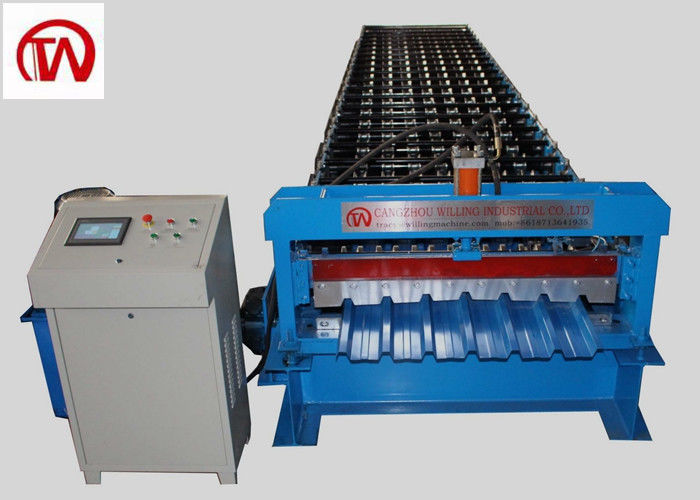

Full Automatic 7 Ribs High Capacityroll Formg Machine 900 Long Span

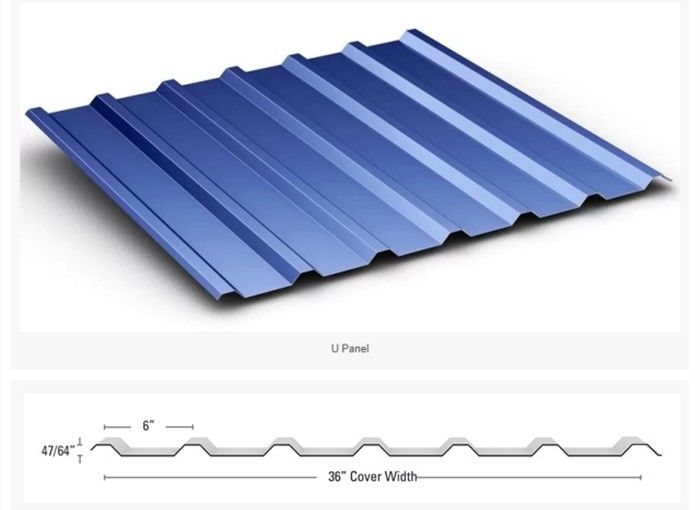

7 ribs Trapezoidal sheet machine roof sheet roll forming machine,market is mainly producing steel roof/ wall sheet .The final products have two types,corrugated sheet and trapezoidal sheet.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.

No.	Full Automatic 7 Ribs High Capacityroll Formg Machine 900 Long Span
1	Suitable to process	Al,Colored Steel plate
2	Width of the plate	1220mm/1450mm
3	Rollers	22 station
4	Dimension(lwh)	8200mm(L)1550mm(W)1150mm(H)
5	Power	7.5kw
6	Thickness of the plate	0.2-0.8mm
7	Productivity	8~15m/min
8	Diameter of the roller	￠70mm
9	Voltage	380V 50Hz 3phases

Full Automatic 7 Ribs High Capacity roll Forming Machine 900 Long Span 0
