Product Details:
Payment & Shipping Terms:
|
| Tile Type: | IBR Type | Product Name: | Automatic Running IBR Roof Roll Forming Machine With Tiles Effective Width 840mm |
|---|---|---|---|
| Raw Material: | PPGI/Galvanized Sheet | Thickness: | 0.2-0.6MM |
| Shaft Material: | Material Is 45# Forge Steel | Dimension(l*w*h): | 8500*1200*1200mm |
| High Light: | Automatic Running Roof Roll Forming Machine,IBR Roof Roll Forming Machine,Width 840mm Roof Roll Forming Machine |
||

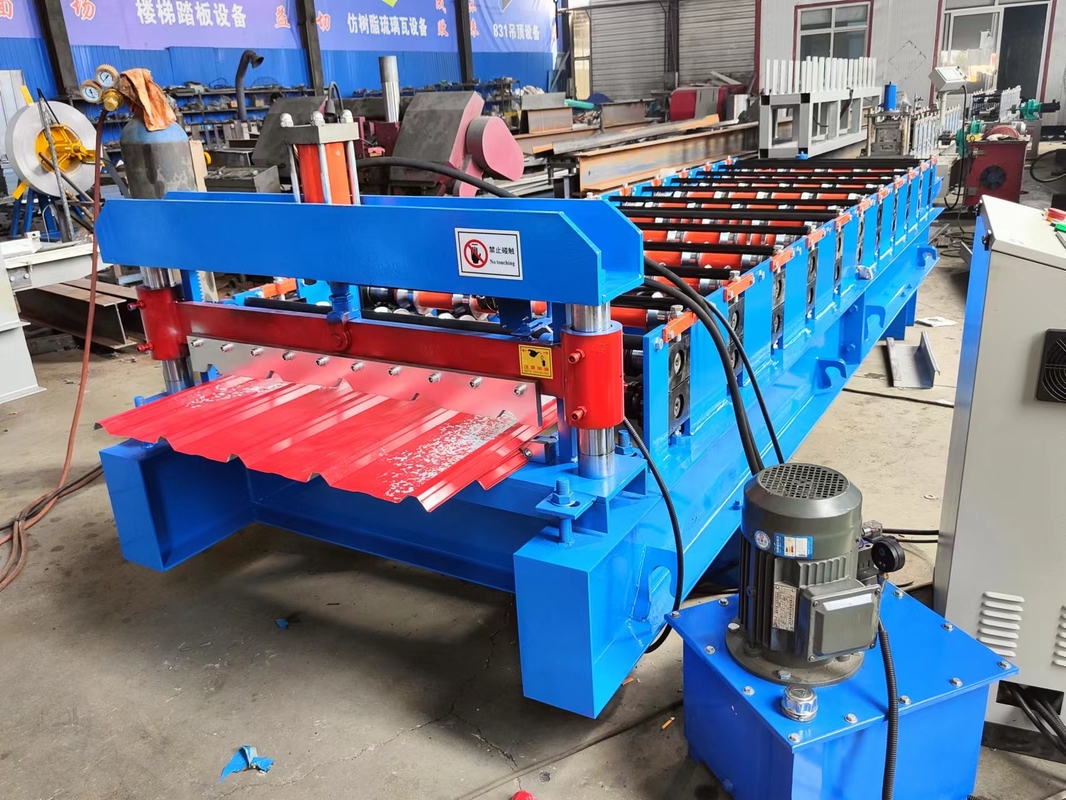

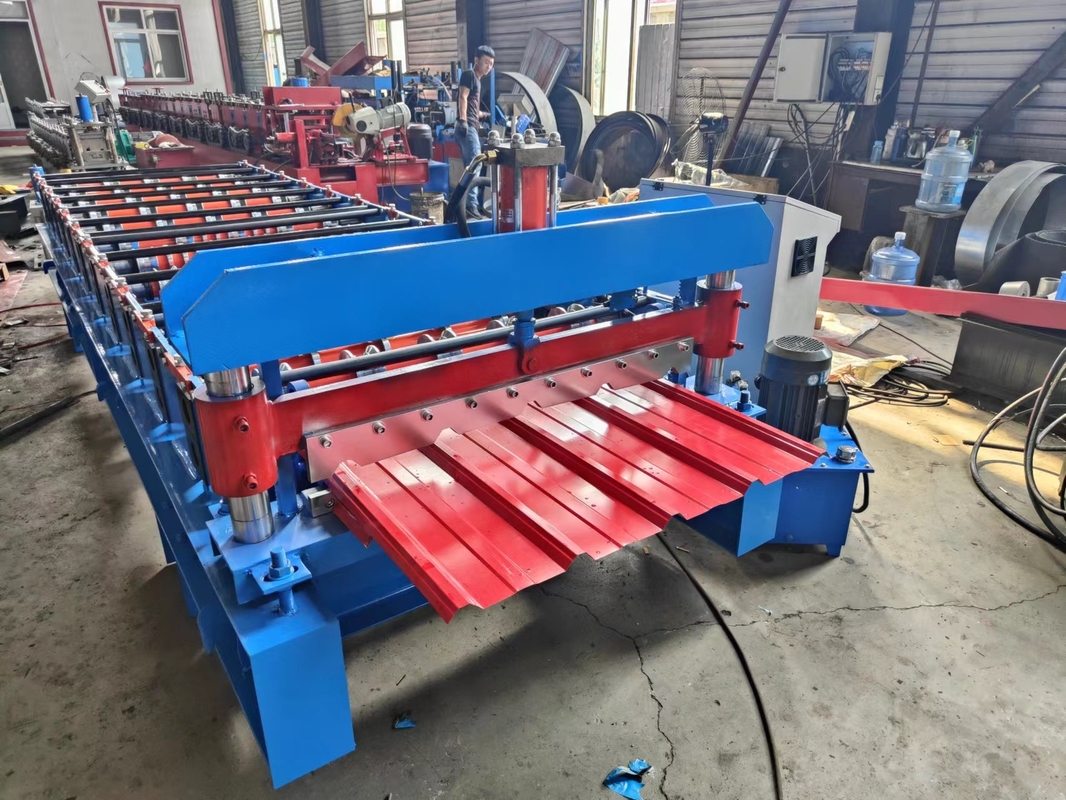

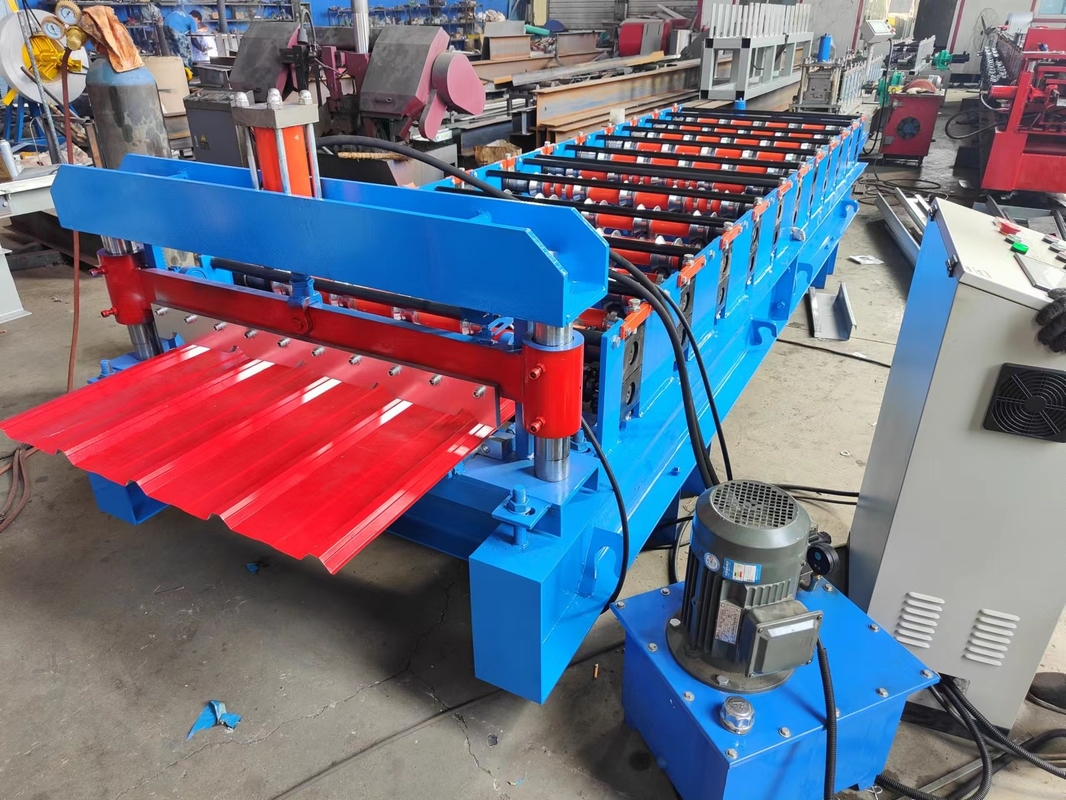

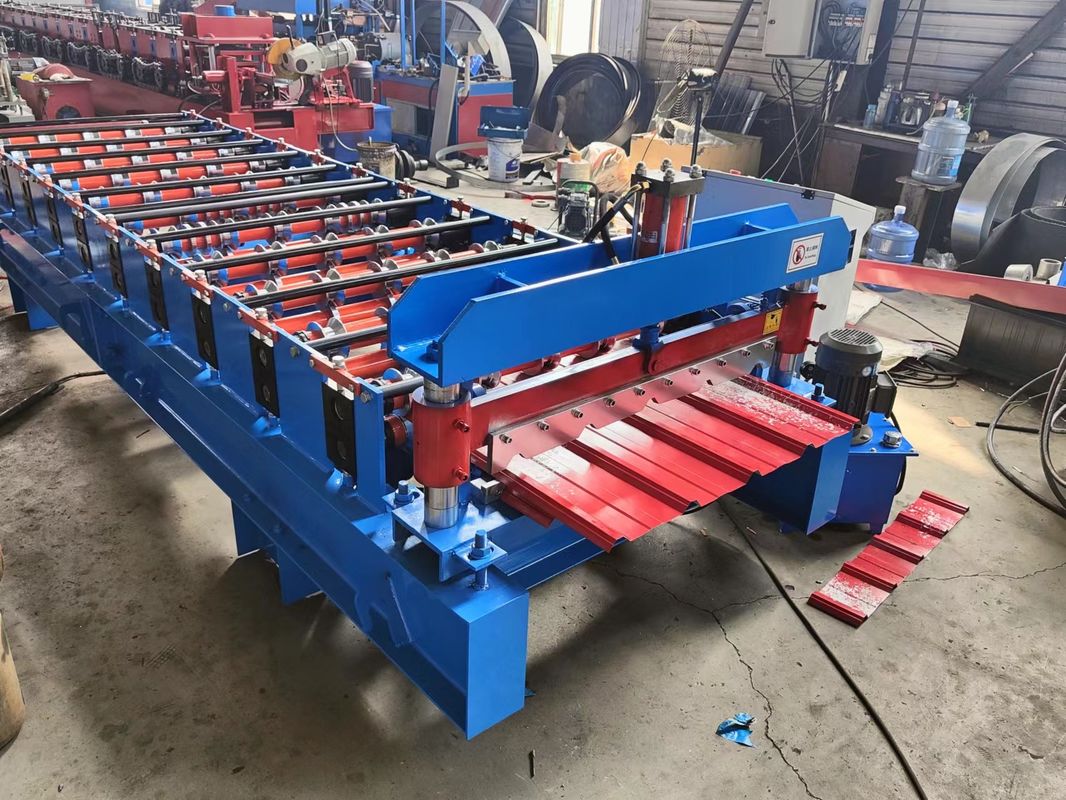

Automatic Running IBR Roof Roll Forming Machine With Tiles Effective Width 840mm
1) Linear structure, easy to install and maintain.
2) High-quality material for the roller and shaft.
A double guide pillar type cutting system with two hydro-cylinders
4) Adopting advanced world-famous brand components for pneumatics, electrics, and operation components.
5)Running in a highly automated and intellectualized environment
Equipment Detailed Parameters:
|
No |
||
|
1 |
Suitable Material | PPGI (235Mpa) |
|
2 |
Width of the raw material | 925mm |
| 3 | Rows of rollers | 18 rows |
| 4 | Appearance size | 8500*1200*1200mm |
| 5 |
Total power |
Main motor 3kw |
| 6 | Thickness of raw material | 0.3-0.6mm |
| 7 | Speed | 8-15m/min |
| 8 | Diameter of shaft | ￠70mm |
|
9 |
Voltage | 380V 50Hz 3phases |
| 10 | Big frame | 350H steel |
| 11 | Middle plate | 16mm |
Application
It is suitable for industrial and civilian buildings, warehouses, special buildings, large-span steel structured roofs, wall surfaces, and interior and exterior wall decorations. As a result of its light quality, high strength, rich color, convenient construction, earthquake resistance, fire prevention, rainproof, and life span, the attributes of long, exempt maintenance have been widely promoted and applied.
