Name: Hydrulic Driving C Purlin Roll Forming Machine With Cr12Mov Cutter
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: C Purlin
Price: 32,500.00 USD
Availability: InStock

Home > products > CZ Purlin Roll Forming Machine >

Hydrulic Driving C Purlin Roll Forming Machine With Cr12Mov Cutter

Hydraulic C Purlin Roll Forming Machine

Cr12Mov Cutter C Purlin Roll Former

Cr12Mov Cutter C Purlin Forming Machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Model Number:

C Purlin

Request A Quote

Product Details

Product Name:

Hydrulic Driving C Purlin Roll Forming Machine With Cr12Mov Cutter

Form Speed:

15-20m/min

Voltage:

380 V Or As Per Drawing

Hydraulic Motor:

7.5kw

Automation:

Automatic

Cutting Blade Material:

Cr 12 Mov

Weight:

8 T

Hydraulic Pressure Range:

0-16Mpa

Highlight:

Hydraulic C Purlin Roll Forming Machine

Cr12Mov Cutter C Purlin Roll Former

Cr12Mov Cutter C Purlin Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union, L/C

Supply Ability

20 sets per month

16 Raws Eave CZ Purlin Roll Forming Machine 3 Phase 360V 60HZ Energy Saving

Get Best Price

Video

Light Weight Panel Roll Forming Machine Sigma Section Purlin Roll Former

Get Best Price

Video

Building Channel CZ Purlin Roll Forming Machine High Strength Steel Framing

Get Best Price

Video

Automatic Panel Roll Forming Machine Interchangeable Purlin Roll Former

Get Best Price

86-317-2016816

Contact Now

Product Description

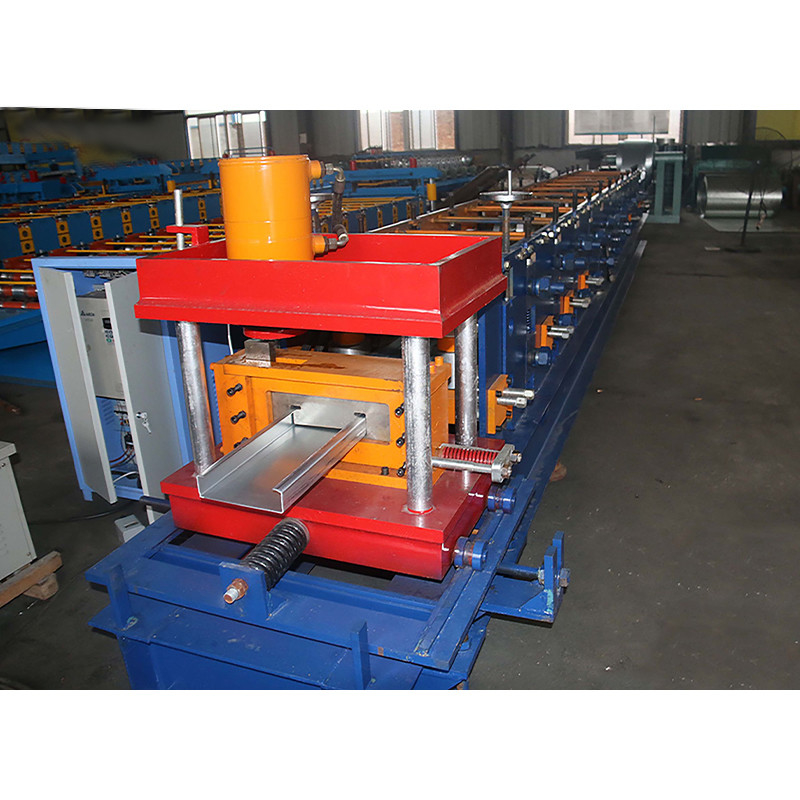

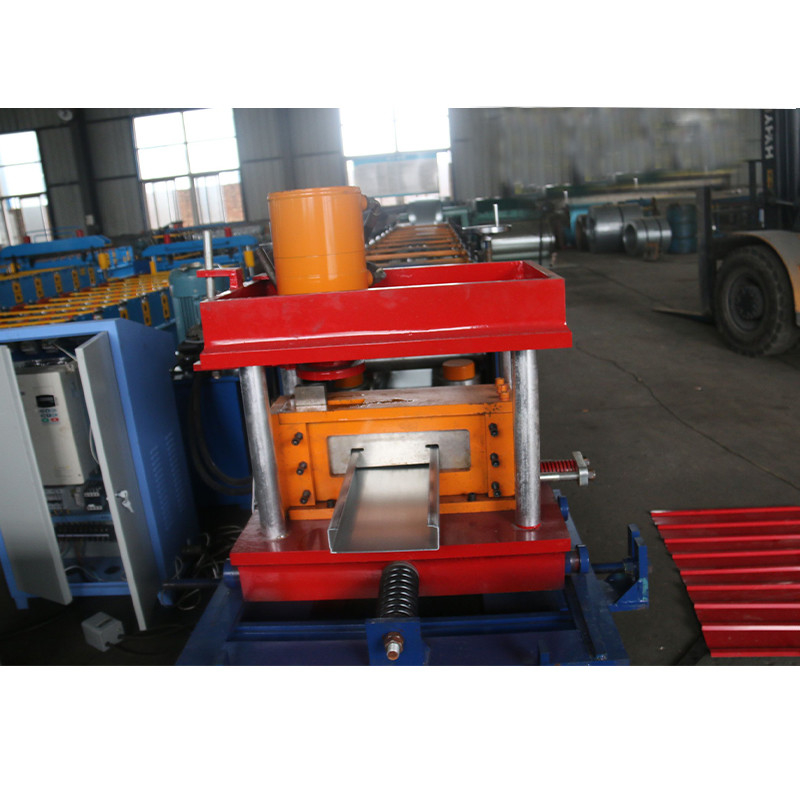

Hydrulic Driving C Purlin Roll Forming Machine with Cr12Mov cutter

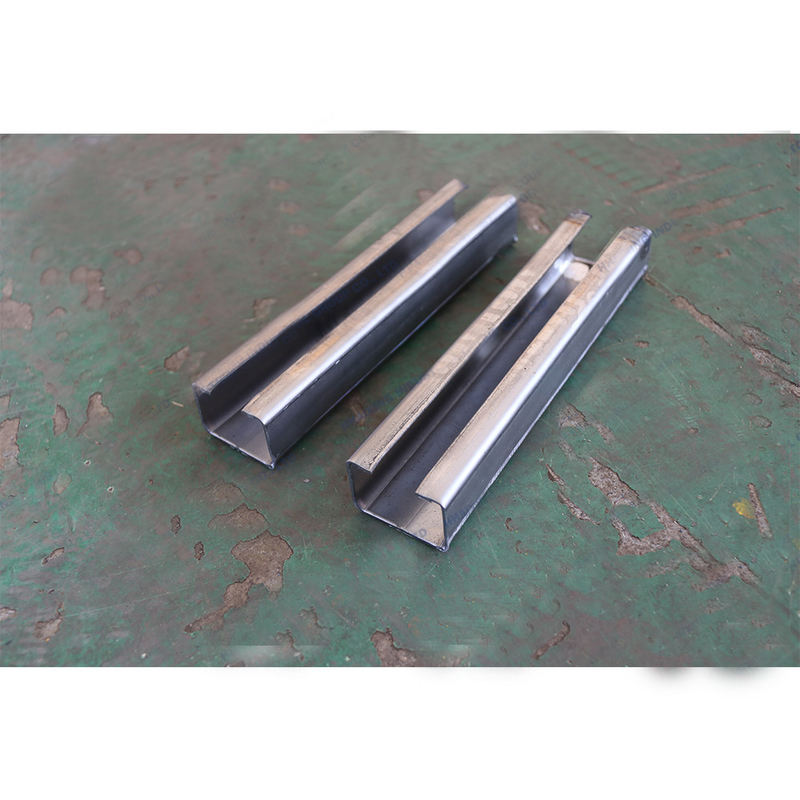

Type C galvanized bars use galvanized steel plates. The roller is cooled bending. You can automatically complete the molding process according to the given sizes. It is suitable for industrial and civilian buildings, warehouses, special buildings, large -span steel structured roofs, wall surfaces, and internal and external wall decorations. It has light quality, high -strength, rich color, convenient construction, earthquake resistance, fire prevention, rainproof, life span The characteristics of long, exempt maintenance, have been widely promoted and applied to the color steel encirclement building system

specifications

Raw material	Steel Coil gi ppgi
Control system	PLC(imported Brand)
Punching	Roller Station
main motor	15kw
Weight	8 t
main shaft diameter	80mm
material thickness	1.2-2.5mm
Warranty of core components	1.5 years

Advantage

1 It produces different purlin machines that automatically change rollers or spacers.
2. No need to change cutters for different sizes
3. Low maintenance costs, easy to operate.
Infinite sizing (any size within the machine range), helps save materials
A punch hole can be made at any position on the web side and flange side of the purlin.
