840/850 0.6mm Double Layer Roll Forming Machine For Roof Sheet Floor Deck Sheet

840/850 0.6mm Double Layer Roll Forming Machine For Roof Sheet Floor Deck Sheet

0.6mm double layer roll forming machine

840 double layer roll forming machine

roof sheet double layer forming machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Model Number:

840-850

Contact Us
Request A Quote
840/850 0.6mm Double Layer Roll Forming Machine For Roof Sheet Floor Deck Sheet
840/850 0.6mm Double Layer Roll Forming Machine For Roof Sheet Floor Deck Sheet 840/850 0.6mm Double Layer Roll Forming Machine For Roof Sheet Floor Deck Sheet 840/850 0.6mm Double Layer Roll Forming Machine For Roof Sheet Floor Deck Sheet 840/850 0.6mm Double Layer Roll Forming Machine For Roof Sheet Floor Deck Sheet
Product Details
Product Description:
Double Layer Color Steel Roll Forming Machine Glazed Tile And Corrugated
Thickness:
0.25-0.6mm
Shaft Material:
Material Is 45# Forge Steel
Dimension(l*w*h):
6500*1550*1500mm
Control System:
PLC
Speed:
8-15M/Min
Voltage:
380V 50HZ 3PH
Weight:
6.5T
Highlight:

0.6mm double layer roll forming machine

,

840 double layer roll forming machine

,

roof sheet double layer forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Main machine is nude,the computer control box is packed by plastic.
Delivery Time
30days
Payment Terms
T/T, Western Union
Supply Ability
35 sets per month
RELATED PRODUCTS
Good price IBR and Corrugated Double Layer Roof sheet Roll Forming Machine For Ppgi Panel Roof online Video

IBR and Corrugated Double Layer Roof sheet Roll Forming Machine For Ppgi Panel Roof

Get Best Price
Good price IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price Double Layer Roll Forming Machine PLC Control online Video

Double Layer Roll Forming Machine PLC Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

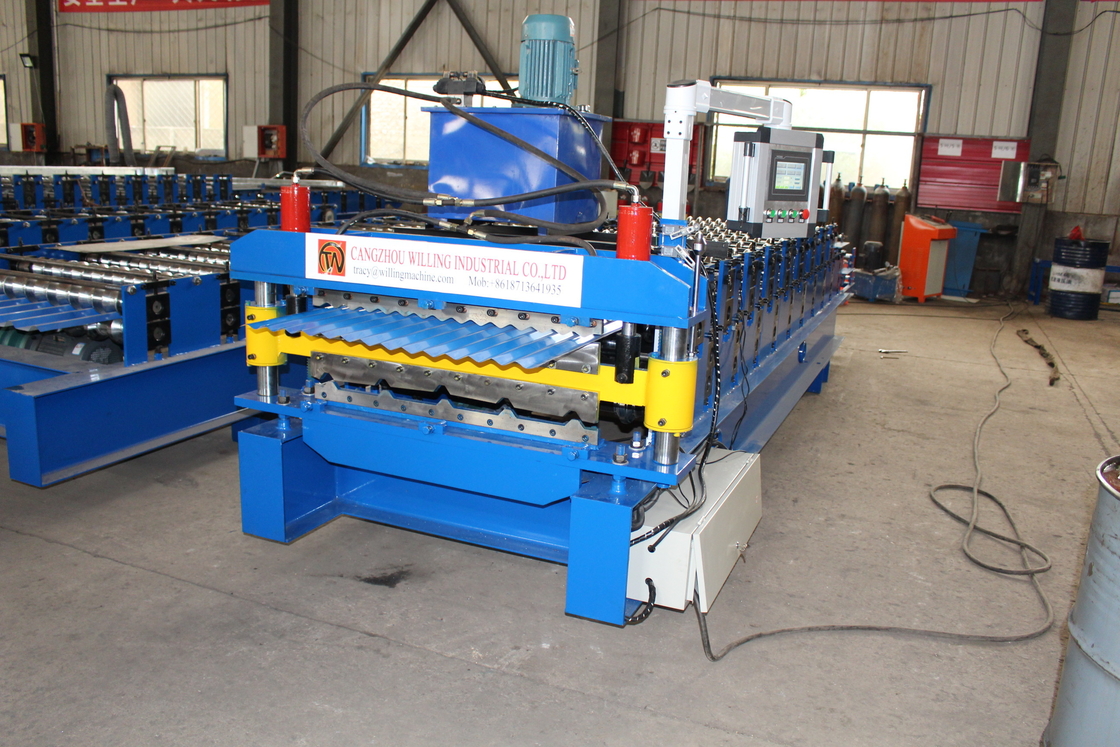

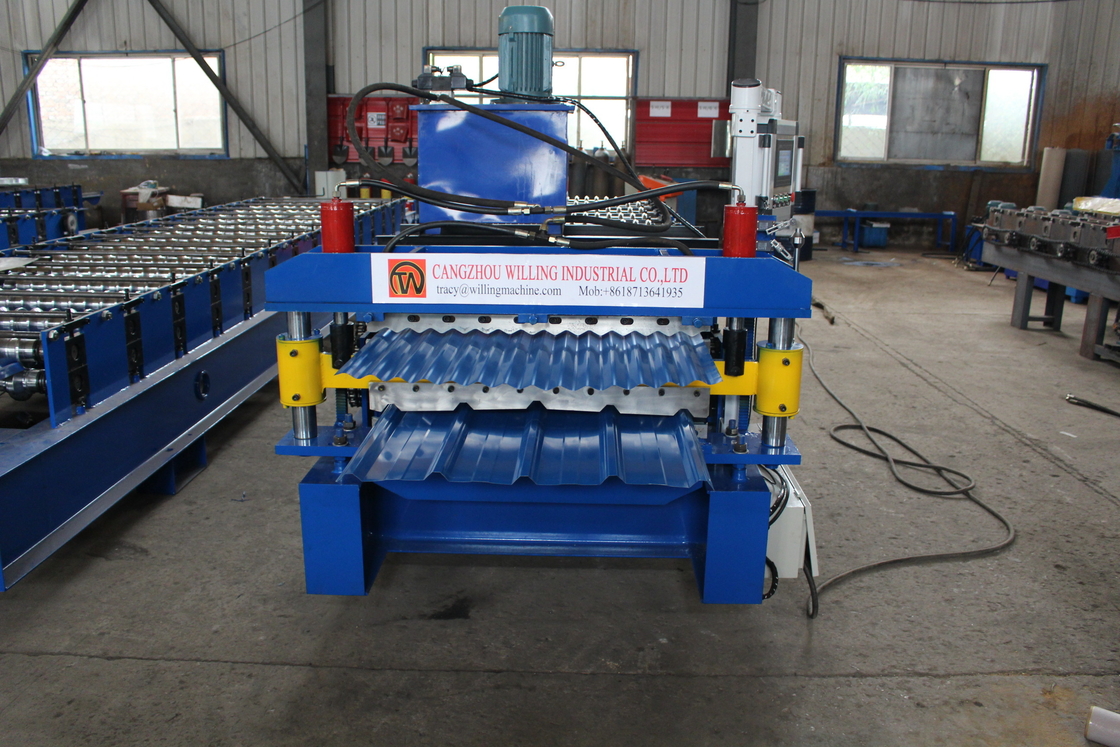

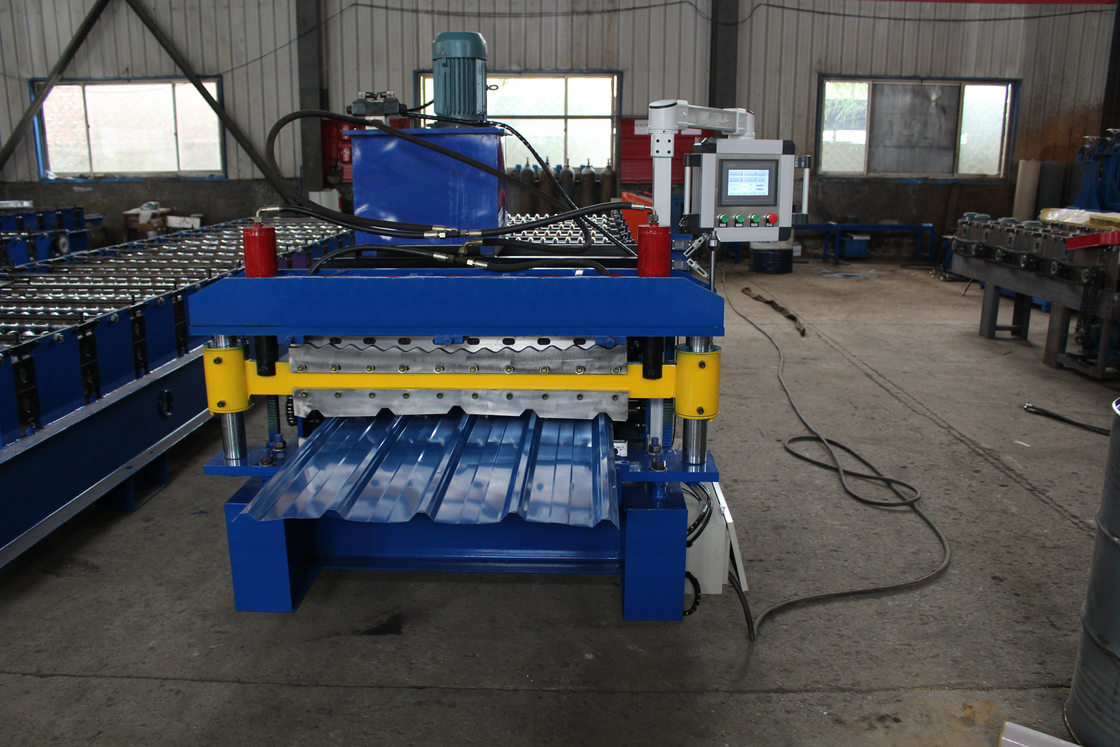

840/850 double layer roll forming machine for roof sheet, floor deck sheet



The double layer tile machine equipment uses PLC and uses the electrical control system displayed by a text screen. It is easy to operate, easy to use the double layer tile machine equipment to use high -level automatic control software. To achieve production information management, the entire unit automation control system adopts high integration networks. Make the automation system's performance better. The color steel tile equipment also has the advantages of operation, maintenance, maintenance, and mechanical debugging, and easy mold replacement.




Equipment Detailed Parameters:



1

 Suitable Material PPGI (235Mpa)

2

 Width of the raw material 1000mm
3 Rows of rollers 9 rows & 11 rows
4 Dimension 6500*1550*1200mm
5

Main servo

7.5kw
6 Hydraulic station power 11kw
7 Thickness of raw material 0.25-0.8mm

8

Productivity

 8-15m/min
9 Diameter of shaft ￠75mm

10

 Voltage 380V 50Hz 3phases
11 Frame 350H steel
112 Middle plate 16mm



Application



Color steel tile all -steel structure factories, wooden driving beam factories, villa -style color steel plates connected to colorful steel plate ceiling, top floors, large span plants, and light steel structure sheds.



Advantage



The color steel plate equipment adopts high -level automatic control software to achieve production information management.
reason. (The entire unit automation control system adopts high -integrated networks to make the performance of the automation system better. The color steel tile equipment also has the advantages of operation, maintenance, maintenance, and mechanical debugging, and easy mold replacement.
