Ppgl Hydraulic Crimping Arch Roofing Forming Machine Metal Curve

Ppgl Hydraulic Crimping Arch Roofing Forming Machine Metal Curve

ppgl roofing forming machine

hydraulic crimping roofing forming machine

hydraulic crimping roof roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU WILLING

Certification:

ISO CE

Model Number:

Hydraulic Crimping

Contact Us
Request A Quote
Ppgl Hydraulic Crimping Arch Roofing Forming Machine Metal Curve
Ppgl Hydraulic Crimping Arch Roofing Forming Machine Metal Curve Ppgl Hydraulic Crimping Arch Roofing Forming Machine Metal Curve Ppgl Hydraulic Crimping Arch Roofing Forming Machine Metal Curve
Product Details
Product Name:
Hydraulic Crimping Arch Metal Curve Roofing Forming Machine
Raw Material:
PPGL,GL，PPGI,GI，
Dimension(L*W*H):
2050*1500*1300
Rolling Thinckness:
0.3-0.7mm
Shaft Material:
45# Steel Outer Diameter: 70mm
Main Frame:
350H Steel
Control System:
PLC
Voltage:
220V/380V/440V
Highlight:

ppgl roofing forming machine

,

hydraulic crimping roofing forming machine

,

hydraulic crimping roof roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
40 Sets Per Month
RELATED PRODUCTS
Good price crimping bending Roofing Sheets Roll Forming Machine Hydraulic online Video

crimping bending Roofing Sheets Roll Forming Machine Hydraulic

Get Best Price
Good price IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation online Video

IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation

Get Best Price
Good price high speed Roofing Sheets crimping bending Roll Forming Machine online Video

high speed Roofing Sheets crimping bending Roll Forming Machine

Get Best Price
Good price 1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control online Video

1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

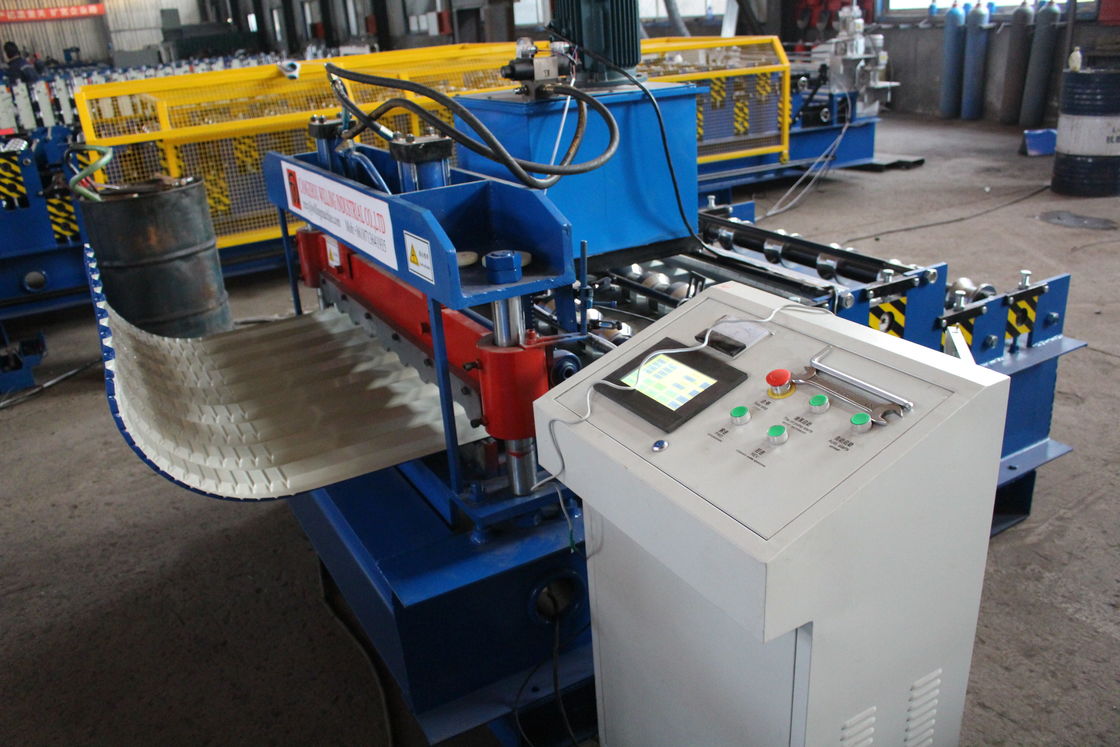

Hydraulic Crimping Arch Metal Curve Roofing Forming Machine



The vertical seam roof bending machine is used to bend the vertical seam roof truss into concave and convex shape, roll forming in three steps, and select gear transmission. It can bend both aluminum plates and metal plates. This vertical roof can be used to build more beautiful steel houses and large sports halls. With such a small design, you can take this machine anywhere in your steel construction project.



Specification

Product name
Color Steel Roof Curving Machine
Size
1500*850*2000mm
Weight
1200KGS
Voltage
380V/50HZ/3PH
Motor Power
4KW
Hydraulic Power
3KW
Motor for changing models Power
0.37KW
Curved Thickness for Aluminum
0.8-1.2mm
Curved Thickness for Steel
0.7-1.0mm
Width of straight roofing to curve
300mm to 600mm
Min.Width of Tapered Roofing to Curved
250mm
Max.Width of Tapered Roofing to Curved
500mm
Working Speed
10-16m/min



Application

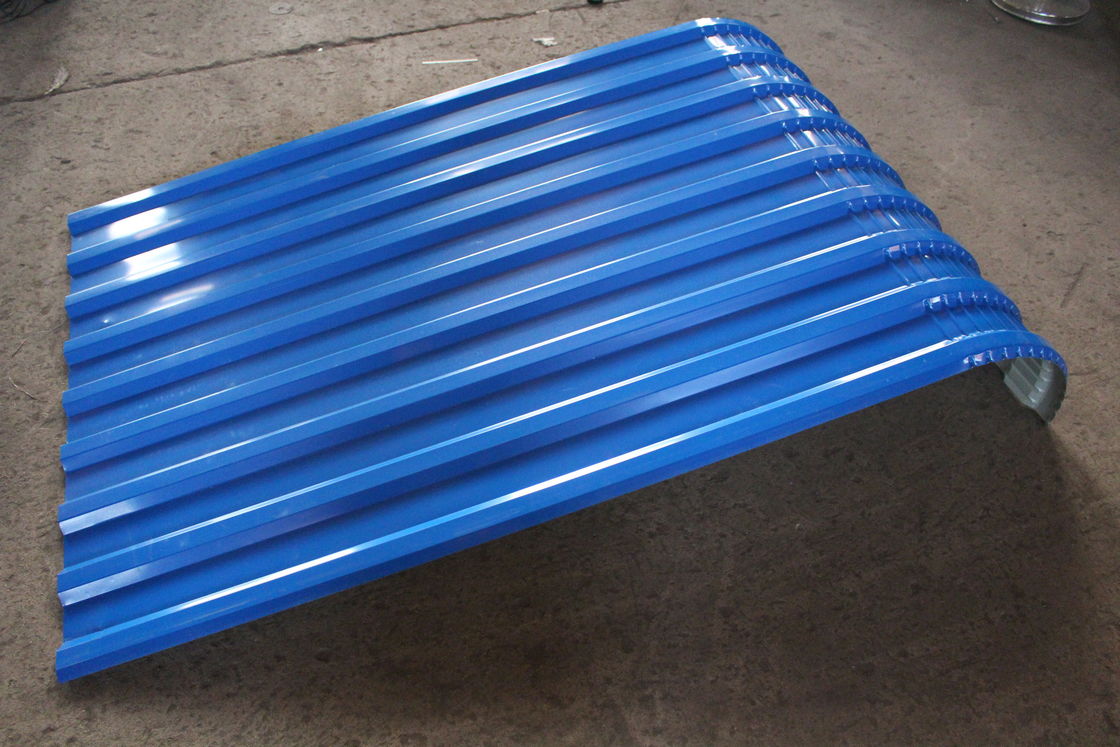

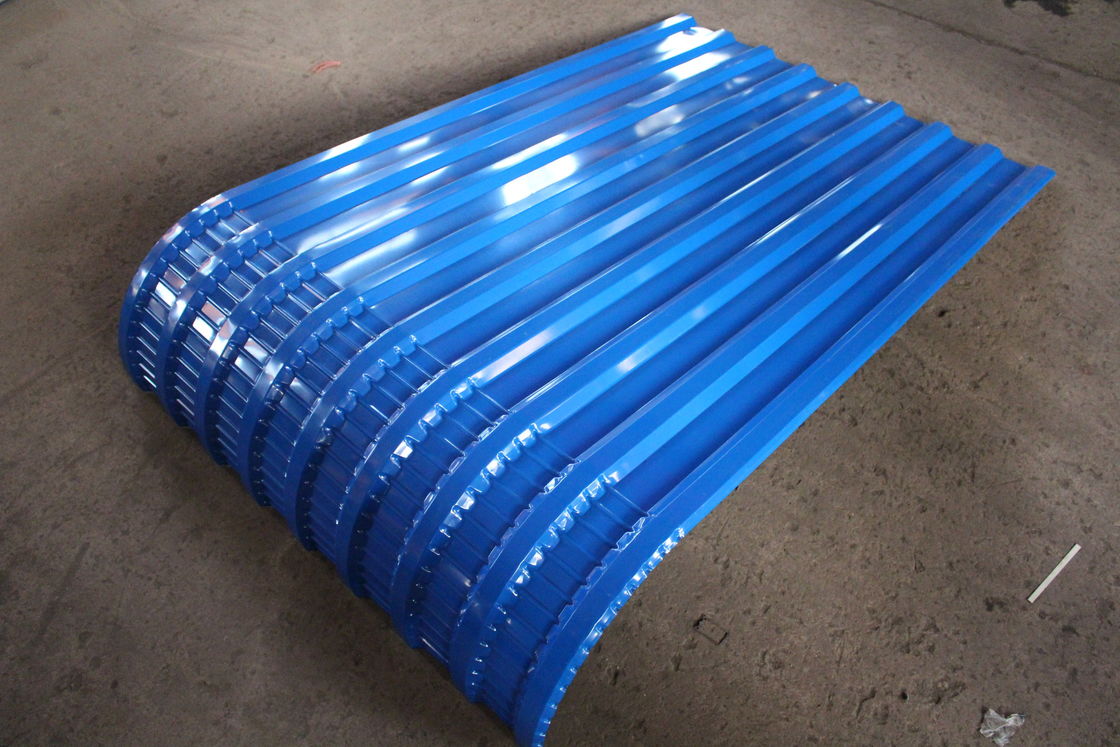

This Curved roofing arch sheet building machine hydraulic crimping machine will be very smooth and beautiful without any scratch on surface.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.Fully Automatic Control System with PLC.Easy operation: Key in the length and quantity on the control panel.



Payment terms



40% in advance.

60% before the shipment is processed.



Delivery



FOB Tianjin Xingang Port or CNF Designated port

The Delivery Time: 30 days after the down payment is received

Ppgl Hydraulic Crimping Arch Roofing Forming Machine Metal Curve 0
