Fully Automatic Rain Gutter Roll Forming Machine Drainage System Production Line

Fully Automatic Rain Gutter Roll Forming Machine Drainage System Production Line

galvalume rain gutter roll forming machine

drainage rain gutter roll forming machine

fully automatic rain gutter making machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU WILLING

Certification:

ISO CE

Model Number:

Rain- Gutter

Contact Us
Request A Quote
Fully Automatic Rain Gutter Roll Forming Machine Drainage System Production Line
Fully Automatic Rain Gutter Roll Forming Machine Drainage System Production Line Fully Automatic Rain Gutter Roll Forming Machine Drainage System Production Line
Product Details
Product Name:
Fully Automatic Rain Gutter Roll Forming Machine Drainage System Production Line
Raw Material:
Galvalume, Galvanized
Voltage:
380V 50Hz 3phases
Speed:
8-15m/min
Control System:
PLC
Usage:
Water Gutter For Roof
Highlight:

galvalume rain gutter roll forming machine

,

drainage rain gutter roll forming machine

,

fully automatic rain gutter making machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price Waterproof Steel Downspout Roll Forming Machine Hydraulic Motor High Speed online Video

Waterproof Steel Downspout Roll Forming Machine Hydraulic Motor High Speed

Get Best Price
Good price Corrugated Downpipe Roll Forming Machine High Strength Long Working Life online Video

Corrugated Downpipe Roll Forming Machine High Strength Long Working Life

Get Best Price
Good price Rectangular Downspout Elbow Machine 0.4 - 0.8mm Thickness 5.5 KW Energy Saving online Video

Rectangular Downspout Elbow Machine 0.4 - 0.8mm Thickness 5.5 KW Energy Saving

Get Best Price
Good price Commercial Building Downspout Roll Forming Machine High Cutting Accuracy online Video

Commercial Building Downspout Roll Forming Machine High Cutting Accuracy

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

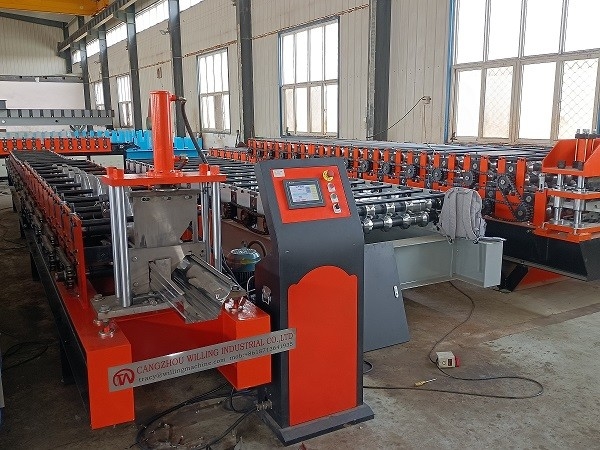

Fully Automatic Rain Gutter Roll Forming Machine Drainage System Production Line



Water gutter roll forming machine popular sell in many countries, size can be coustomized according to your request, common thickness between 0.7-1.5 mm, Common speed 10-20 m/min. we sell lots of such machine to Iraq, Egypt, India, Chile, Zambia, etc.
Rain Gutter Roll Forming Machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.


Specification



No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.7 mm - 1.5 mm
3 Working Speed 10-20 m/min
4 Roller Station 18 Stations
5

Dimension (L*W*H)

 8000 mm*800 mm*1200 mm
6 Machine Weight 7000 KG
7

Electrical Control System

PLC (can be customized)
8

Drive Motor Power

 4.5 KW
9

Hydraulic Station Power

 4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

± 2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

50 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Advantage



For about 10 years, we have been exporting high-standard roll forming machines.
We have a mature foreign trade team, senior engineers, and experienced workers to meet your needs.
We have machines in more than 90 countries and regions, and we maintain good business relationships.
For the life of any machine, we offer a one-year free warranty and free service.





Application



Our Rain Gutter Sheet Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
