Product Details:
Payment & Shipping Terms:
|
| Product Name: | Square And Round Down Spout Roll Forming Machine Aluminium Rain For Building | Raw Material: | PPGI |
|---|---|---|---|
| Voltage: | As Per Requested | Thickness: | 0.3-0.8 Mm |
| Control System: | PLC | Usage: | Roofing |
| High Light: | round downspout roll forming machine,building downspout roll forming machine,aluminium square downspout machine |
||

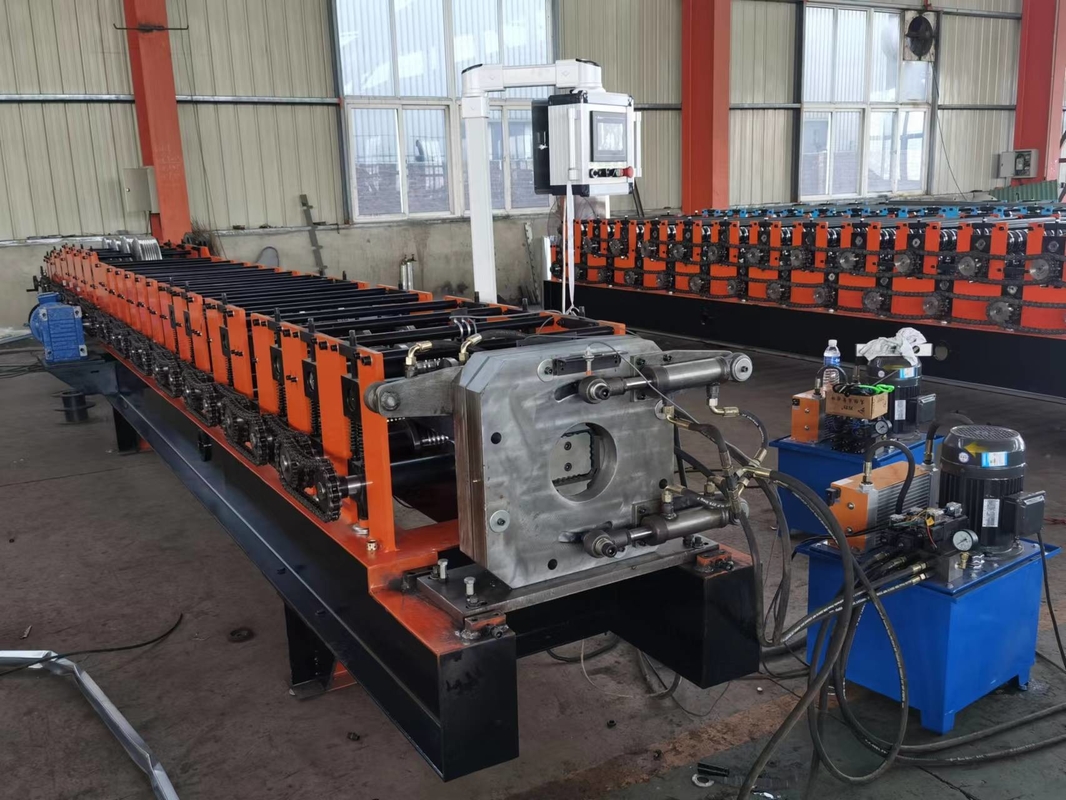

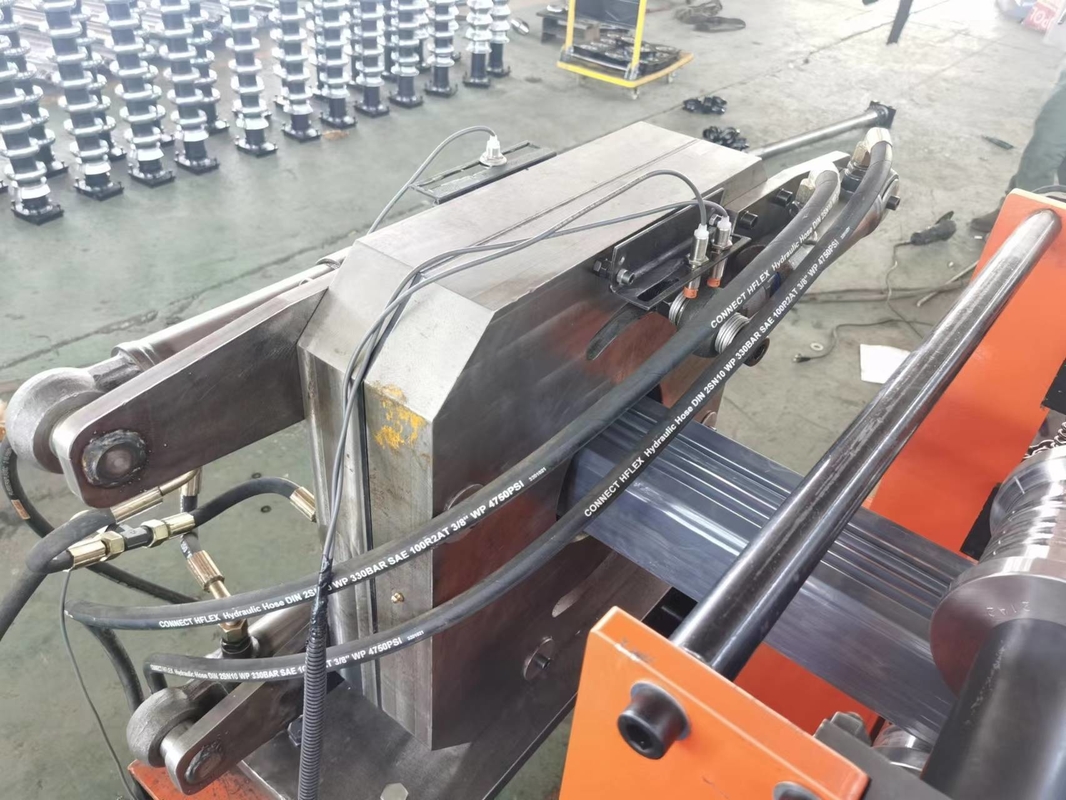

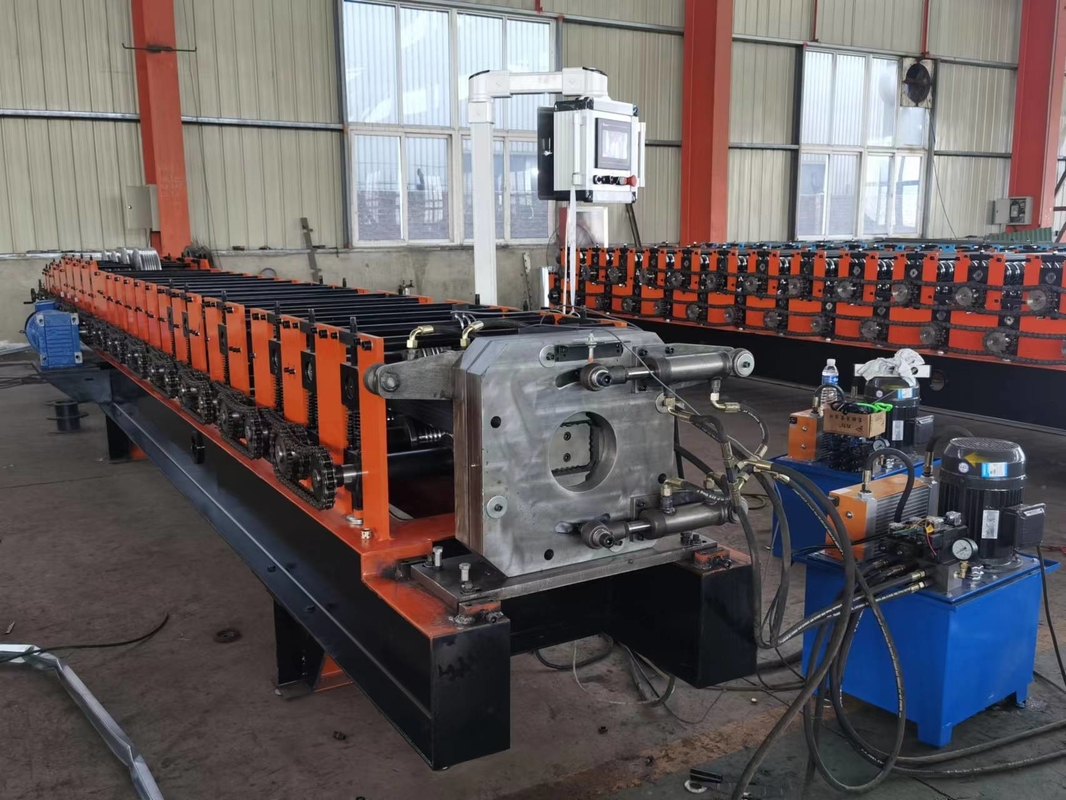

Square And Round Down Spout Roll Forming Machine Aluminium Rain For Building
This downpipe roll forming machine is for steel sheet or aluminum sheet cold-form industries. It can roll-forming the steel sheet according to the customer’s requirement continuously, automatically cut to length.
The equipment adopts PLC control, AC frequency, and adjusting the speed technology, and it realizes the continuous automatic production, therefore, it is really a new type of energy-saving and high-effective producing equipment for the metal downpipe.
Our downpipe roll forming machine has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance, and so on.
Specification
| No. | Item | Description |
| 1 | Coil | PPGI |
| 2 | Raw Material Thickness | 0.3 mm - 0.6 mm |
| 3 | Working Speed | 7-15 m/min |
| 4 | Roller Station | 26 Stations |
| 5 |
Dimension (L*W*H) |
8000 mm*800 mm*1200 mm |
| 6 | Machine Weight | 6000 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
4 KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining |
Installation
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
Guarantee
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).
Payment terms
40% in advance
60% is paid before shipping
