Rain Pipe Downspout Roll Forming Machine Hydraulic Cutting System

Rain Pipe Downspout Roll Forming Machine Hydraulic Cutting System
Rain Pipe Downspout Roll Forming Machine Hydraulic Cutting System Rain Pipe Downspout Roll Forming Machine Hydraulic Cutting System Rain Pipe Downspout Roll Forming Machine Hydraulic Cutting System

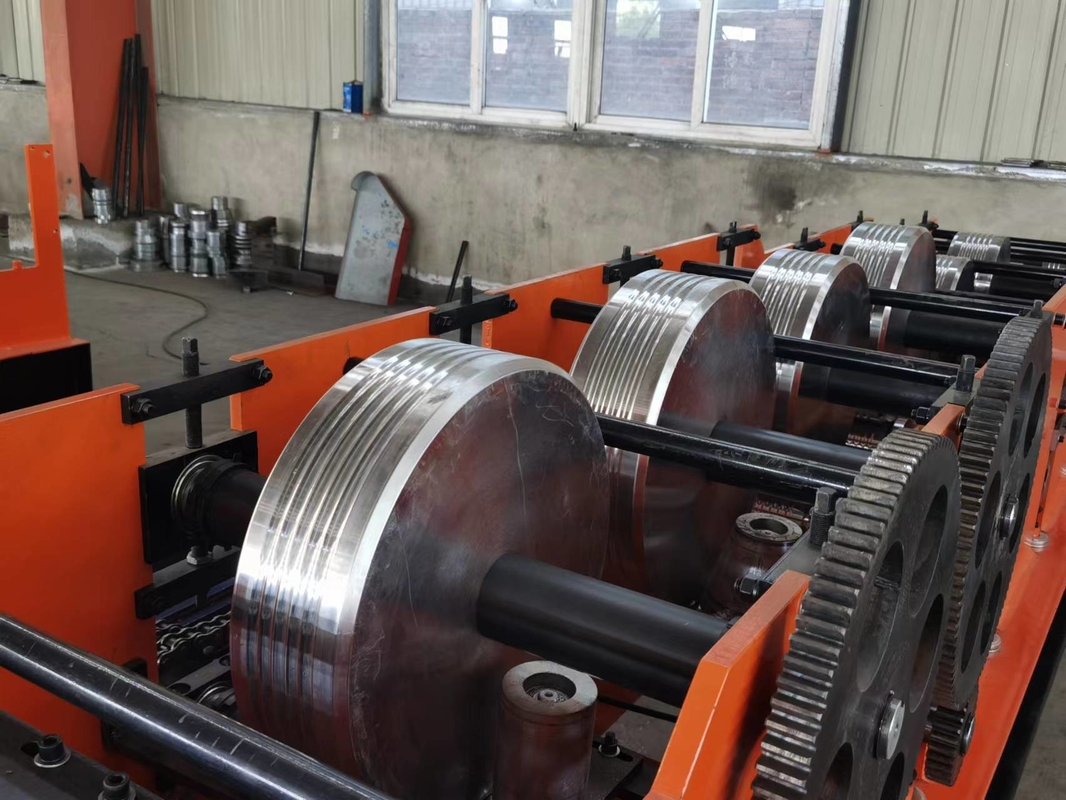

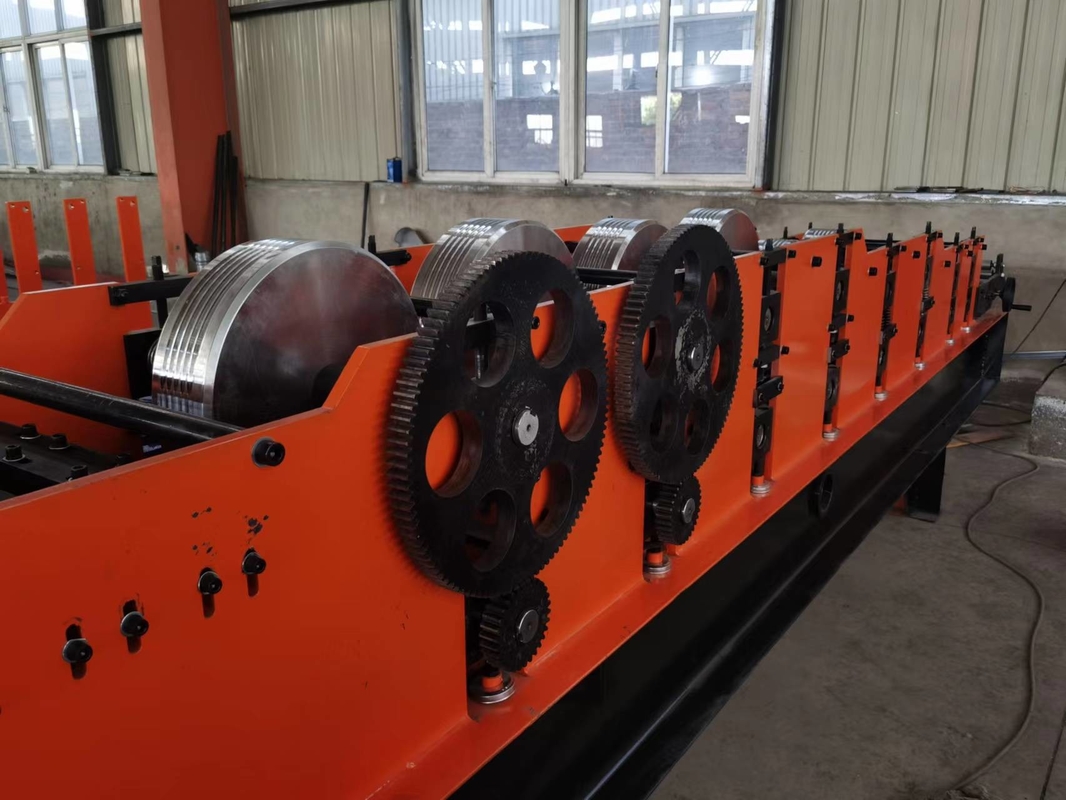

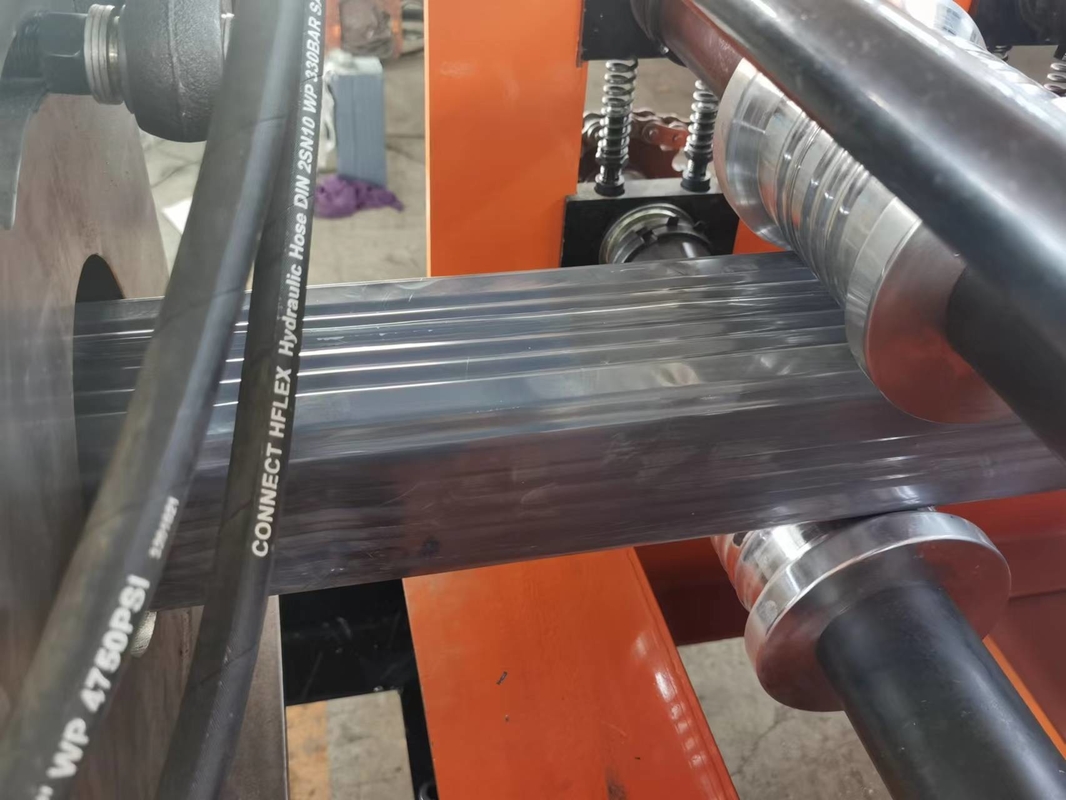

Large Image :  Rain Pipe Downspout Roll Forming Machine Hydraulic Cutting System

Product Details:
Place of Origin: CHINA
Brand Name: CANGZHOU WILLING
Certification: ISO CE
Model Number: Downspout
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Rain Pipe Down Spout Roll Forming Machine Hydraulic Cutting System Raw Material: PPGI
Voltage: As Per Requested Condition: New
Control System: PLC Usage: Roofing
High Light:

ppgi pipe downspout roll forming machine

,

hydraulic cutting downspout roll forming machine

,

hydraulic cutting system downspout machine

Rain Pipe Down Spout Roll Forming Machine Hydraulic Cutting System



Metal downspout is made by using the color steel or GGPI coils roll-pressing and end-closing, then use the special equipment hit-to-bend and necking. Metal drainage system has the excellent weather fastness. It has the advantages such as simple design, easy installation, safe and durable, elegant. It is widely used in the modern villas and multiple raises buildings. LBM is producing the high quality downspout roll forming machines and export to US India, Bangladesh, Vietnam, Turkey, etc.



Specification



No. Item Description
1 Coil PPGI
2 Raw Material Thickness 0.3 mm - 0.8 mm
3 Working Speed 8-15 m/min
4 Roller Station 24 Stations
5

Dimension (L*W*H)

7500 mm*800 mm*1200 mm
6 Machine Weight 6000 KG
7

Electrical Control System

PLC

8

Drive Motor Power

5 KW
9

Hydraulic Station Power

4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

± 2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

60 mm 45#steel forged

14 Material of Roller

45# Steel Finish Machining



Advantage



1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable



Guarantee



Maintenance and replacement of spare parts are free for customers during the warranty period (except for damage caused by human factors or natural disasters.) And technical support is provided for life.
We can design and manufacture the machine according to the client's specifications! CE-certified machines, guaranteed quality. Send us the profile drawing with your inquiry.



Payment terms



40% in advance

60% is paid before shipping











Rain Pipe Downspout Roll Forming Machine Hydraulic Cutting System 0
