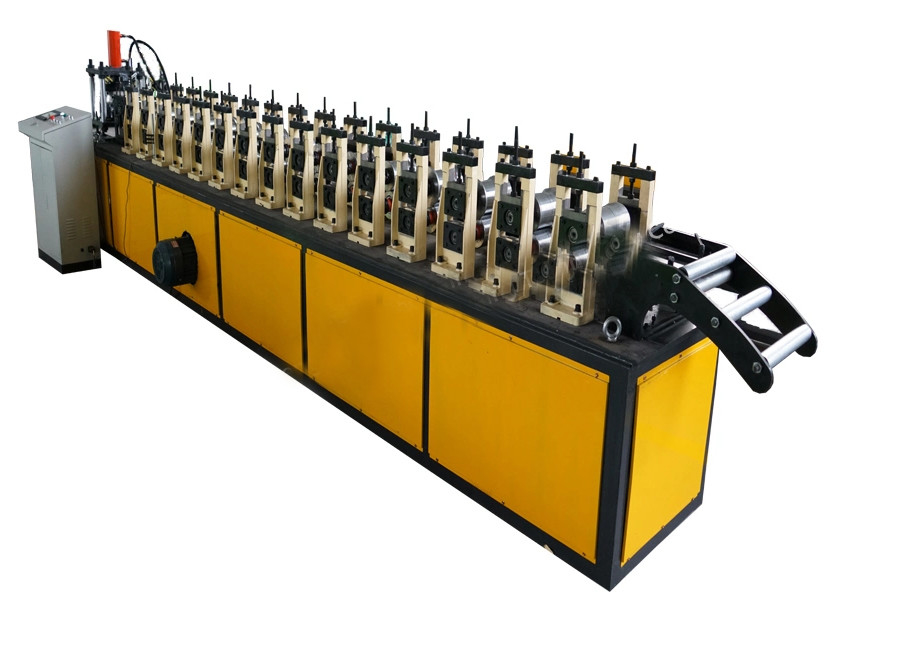

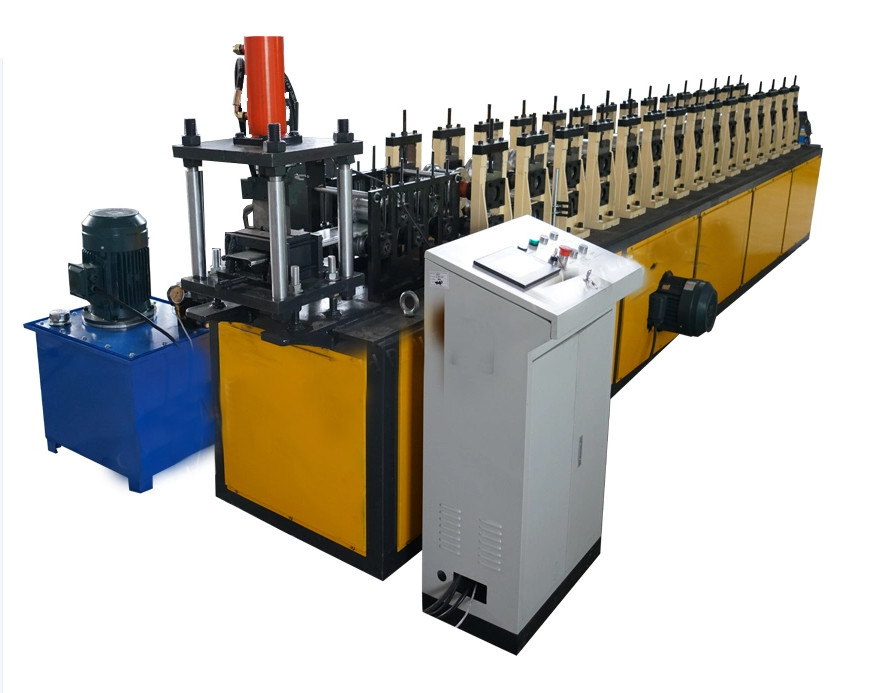

Ondulado Shutter Door Roll Forming Machine For Zinc Aluminium 0.12-0.4mm Thickness

Ondulado Shutter Door Roll Forming Machine For Zinc Aluminium 0.12-0.4mm Thickness
Ondulado Shutter Door Roll Forming Machine For Zinc Aluminium 0.12-0.4mm Thickness Ondulado Shutter Door Roll Forming Machine For Zinc Aluminium 0.12-0.4mm Thickness

Large Image :  Ondulado Shutter Door Roll Forming Machine For Zinc Aluminium 0.12-0.4mm Thickness

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Model Number: Door Frame
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Ondulado Shutter Door Roll Forming Machine For Zinc Aluminium 0.12-0.4MM Thickness Voltage: 380V 50Hz 3phases
Dimension(L*W*H): 5000*1600*1500 Mm Production Capacity: 10-15m/min
Rolling Thinckness: 0.3-01.2 Mm Roller Material: 45#steel
Roller Station: 14 Station Weight: 3500 Kg
Core Components: PLC, Engine, Bearing, Motor, Gear
High Light:

zinc shutter door roll forming machine

,

0.12mm shutter door roll forming machine

,

0.4mm thickness shutter roll forming machine

Ondulado Shutter Door Roll Forming Machine For Zinc Aluminium 0.12-0.4MM Thickness

   Ondulado Shutter Door Roll Forming Machine For Zinc Aluminium 0.12-0.4MM Thickness.

   CANGZHOU FAMOUS INTERNATIONAL TRADING CO, LTD is a large enterprise specialized in galvanized/galvalume/color steel coil,hot/cold steel coil,all kinds of roofing sheet ,roofing machine and so on products .In order to meet thr requirements of customers ,there are four main sectors in our company ,which are purchase ,sales,storage and transportations .With highly effective operations ,reasonable prices and timely delievery ,our company have established a well-known brand in the steel industry and have won high praise of customers and colleagues .



Specification

NO.



1.



Raw material

Type GI&PPGI
Thickness 0.3-0.8mm
Yield strength 235Mpa TO 350Mpa



2.



Decoiler

Operation Manual/Hydraulic for option
Weight apacity 5tons







3.







Main body

Roller station 12 stations
Diameter of shaft 70mm
Material of rollers 45# steel with chrome 0.05mm
Material of shaft 45# steel with chrome 0.05mm
Frame 350mm H-Beam
Chain 1inch



4.



Cutter

Operate Automatic hydraulic type
Blade Material Cr12MOV



5.



Power

Pump motor for cutter 4kw
Main motor 5.5kw
Voltage 380V 50HZ



6.



Control system

Electric Box PLC control system, Inverter, encoder
Language English
7. Speed 8-12m/min



Guarantee



   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



   40% in advance as down payment

   60% is paid before the shipment is processed



Delivery



   FOB: Tianjin Xingang Port

   The Delivery Time: 30 days after the down payment is received.

Ondulado Shutter Door Roll Forming Machine For Zinc Aluminium 0.12-0.4mm Thickness 0
