Fully Automatic Cz Purlin Roll Forming Machine For Size Adjustment 80-300mm

80mm cz purlin roll forming machine

fullyautomatic cz purlin roll forming machine

size adjustment cz purlin machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Request A Quote

Product Details

Product Name:

Fully Automatic CZ Purlin Roll Forming Machine For Size Adjustment 80-300mm

Core Components:

PLC(imported Brand)

Work Pressure:

16 MPA

Voltage:

380V Or 415V

Dimension(L*W*H):

10.5m*1.35m*1.75m

Automation:

Automatic

Cutting Blade Material:

Cr 12 Mov

Highlight:

80mm cz purlin roll forming machine

fullyautomatic cz purlin roll forming machine

size adjustment cz purlin machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union, L/C

Supply Ability

20 sets per month

16 Raws Eave CZ Purlin Roll Forming Machine 3 Phase 360V 60HZ Energy Saving

Get Best Price

Video

Light Weight Panel Roll Forming Machine Sigma Section Purlin Roll Former

Get Best Price

Video

Building Channel CZ Purlin Roll Forming Machine High Strength Steel Framing

Get Best Price

Video

Automatic Panel Roll Forming Machine Interchangeable Purlin Roll Former

Get Best Price

86-317-2016816

Contact Now

Product Description

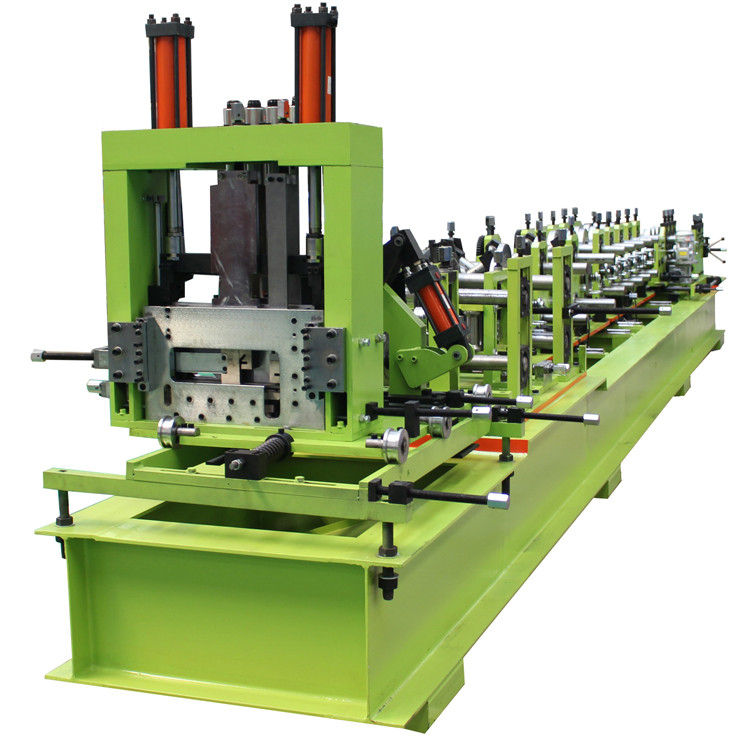

Fully Automatic CZ Purlin Roll Forming Machine For Size Adjustment 80-300mm

Fully Automatic CZ Purlin Roll Forming Machine For Size Adjustment 80-300mm.Standard Shape Profile ( Also can be customized)
C Purlin: A=80-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm

Other detailes of interchange cz cold rolled purlins machine
Suitable for material with thickness 1-3mm,Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined,

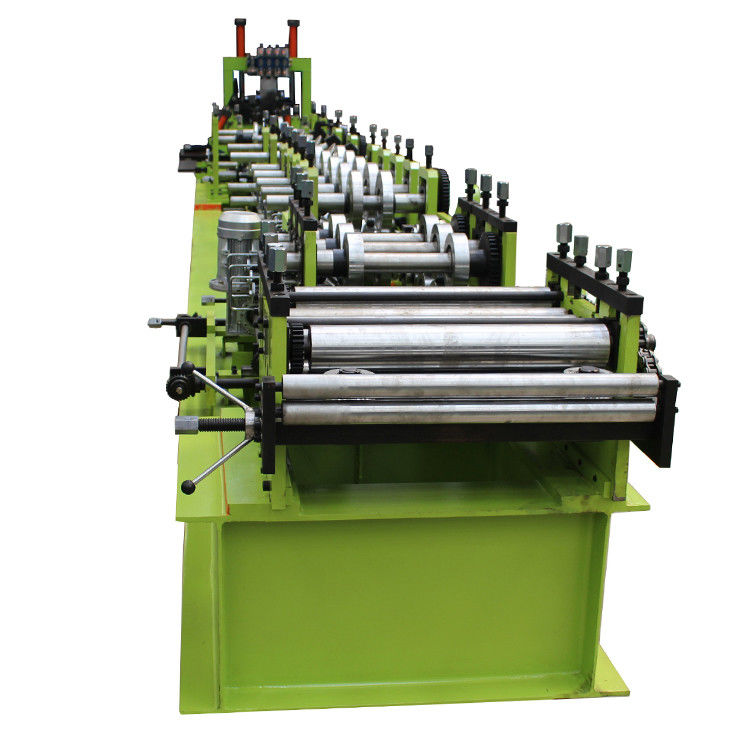

Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling,Main motor=22KW , Frequency speed control. Forming speed approx.18m/minPLC Control System Omron (Touch screen: WUXI xinjie),Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON),It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters,Combined with: PLC, Inverter, TouchScreen, Encoder, etc.

specifications

Raw material	Steel Coil gi ppgi
Control system	PLC(imported Brand)
Punching	Roller Station
Roller Station	18 Stations Roll Forming Machine
Weight	11000 kg
Power	22KW
Production Capacity	20m/min
Warranty of core components	1.5 years

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
