3.0mm Automatic Cz Purlin Roll Forming Machine Quick Change

cz purlin roll forming machine automatic

3.0mm cz purlin roll forming machine

quick change cz purlin machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Request A Quote

Product Details

Product Name:

Automatic Cz Purlin Roll Forming Machine Quick Change

Core Components:

PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, G

Work Pressure:

16 MPA

Voltage:

380V 50Hz 3phases

Dimension(L*W*H):

6000*1200*1300mm

Weight:

Automation:

Automatic

Production Capacity:

16-20m/min

Material Thickness:

1.5-3.0mm

Highlight:

cz purlin roll forming machine automatic

3.0mm cz purlin roll forming machine

quick change cz purlin machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union, L/C

Supply Ability

20 sets per month

16 Raws Eave CZ Purlin Roll Forming Machine 3 Phase 360V 60HZ Energy Saving

Get Best Price

Video

Light Weight Panel Roll Forming Machine Sigma Section Purlin Roll Former

Get Best Price

Video

Building Channel CZ Purlin Roll Forming Machine High Strength Steel Framing

Get Best Price

Video

Automatic Panel Roll Forming Machine Interchangeable Purlin Roll Former

Get Best Price

86-317-2016816

Contact Now

Product Description

Automatic Cz Purlin Roll Forming Machine Quick Change

Automatic Cz Purlin Roll Forming Machine Quick Change,

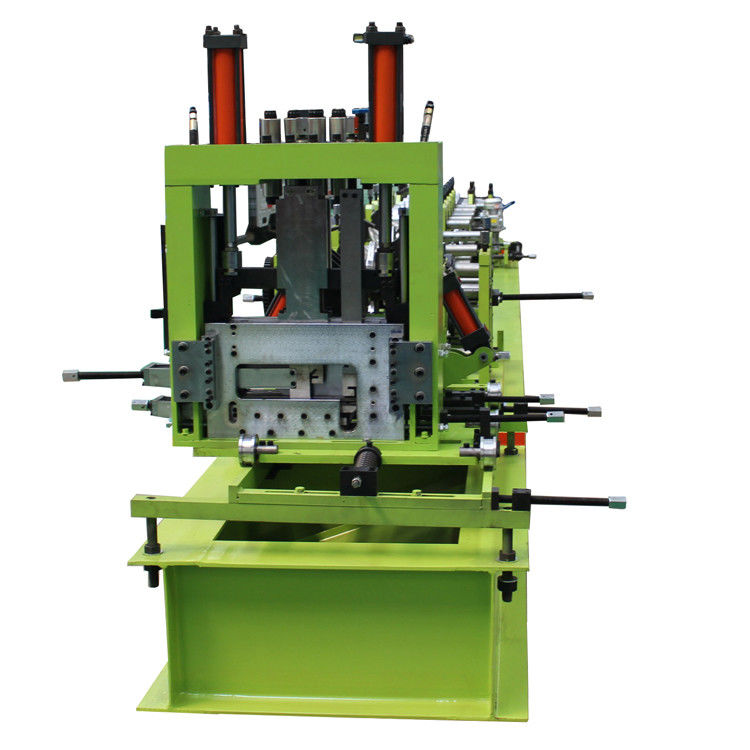

Cutting Way:Hydraulic Cutting.

Meterial of the cutting:Cr12Mov with quenched treatment. It can decide cut panel dimension acoording to the hydraulic drive and Plc computer control system.

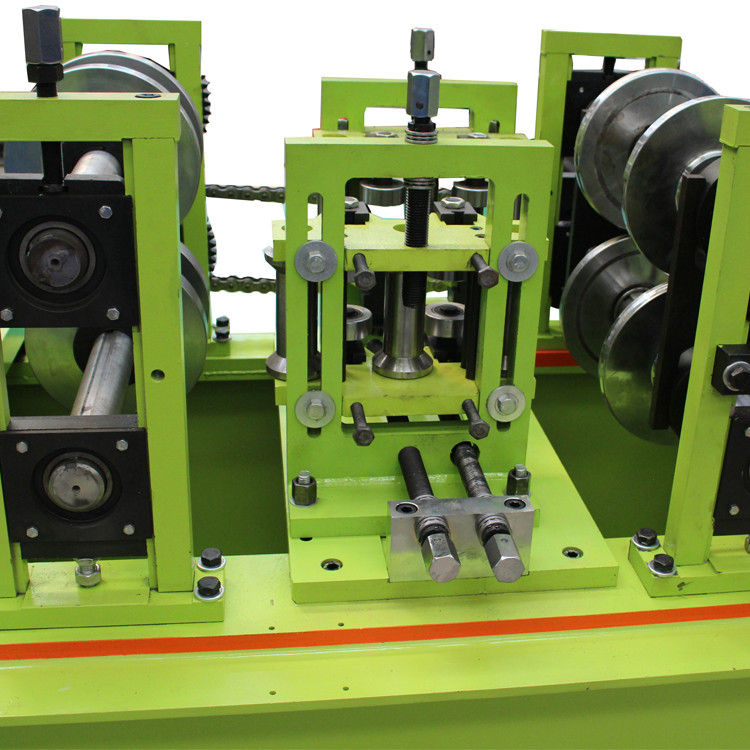

Roller System:Meterial of the roller:Gcr15 steel. Roller station:16 rows Thickness of feeding meaterial:1.2-3.0mm.

PLC Control Cabinet:Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working.

specifications

Raw material	Steel Coil gi ppgi
Control system	PLC(imported Brand)
Shafter material	40Cr
Cutting type	Automatic Hydraulic Cutting
Cutting blade material	cr12 with quenched treatment
Color of Machine	Blue or Customer request
Roller Station	14 Stations
Forming Speed	16-20m/min

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
