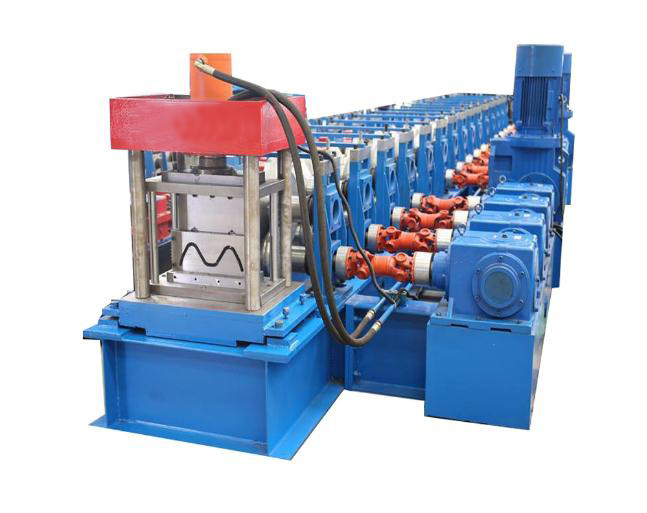

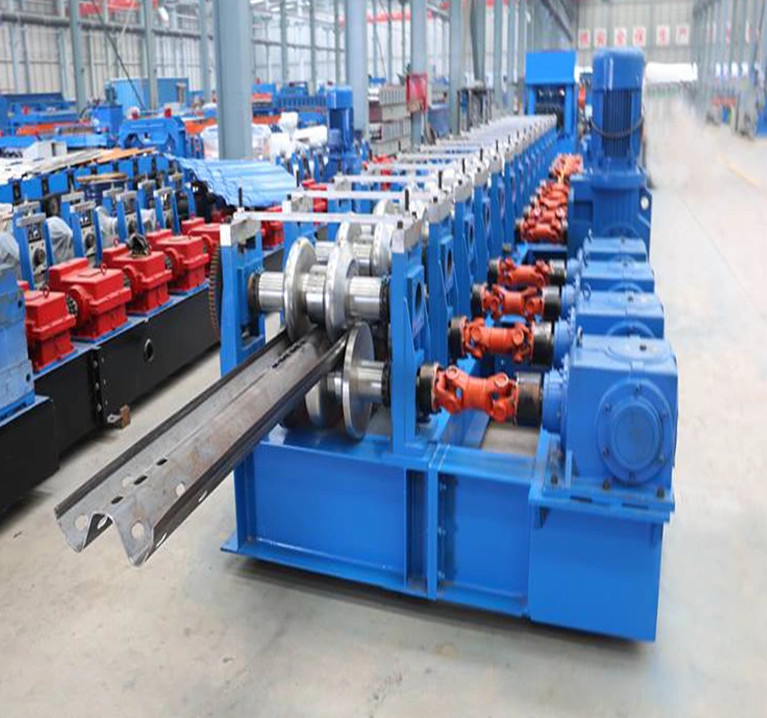

Custom W Beam 2 Wave Highway Guardrail Roll Forming Machine High Performance

Custom W Beam 2 Wave Highway Guardrail Roll Forming Machine High Performance
Custom W Beam 2 Wave Highway Guardrail Roll Forming Machine High Performance Custom W Beam 2 Wave Highway Guardrail Roll Forming Machine High Performance

Large Image :  Custom W Beam 2 Wave Highway Guardrail Roll Forming Machine High Performance

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 50 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Custom W Beam 2 Wave Highway Guardrail Roll Forming Machine High Performance Roller Material: 45# Forged Steel
Cutting Blade Material: Cr 12 High Grade Steel Rollers Material: GCr15,Cr12,SKD11 Quenching Treatment:HRC58-62(optional)
Voltage: 380V.50HZ.3Phase Specification: 5800x1400x1600mm(L*W*H)
Shaft Material: High Grade No.45 Forged Cutting Type: Hydraulic Cutting
High Light:

custom w beam guardrail forming machine

,

2 wave guardrail forming machine

,

high performance highway guardrail forming machine

Custom W Beam 2 Wave Highway Guardrail Roll Forming Machine High Performance



    Custom W Beam 2 Wave Highway Guardrail Roll Forming Machine High Performance.Processes: Hydraulic de-coiler-Leveling device--Punching station--Roll forming machine-PLC system-Hydraulic system-Cutter-Output table



    highway road guardrail W shape bumpls road barrier making machine cold roll forming.Highway Guardrail plate is mainly used in national high-speed railway, highway road reconstruction projects and industrial hardware products and other industries. When subjected to external forces, the deformation of guardrail plate and column can absorb impact force to protect pedestrians and vehicles.Is a common road safety emergency protection facilities.



Specification



High performance Custom Steel Crash Barrier W Beam 2 Wave Highway Guardrail Roll Forming Machine
Material thickness 0.3-0.8mm
Diameter of shaft(solid shaft) 70mm
Material of shaft (solid shaft) (high grade) 45# Steel, quenching and tempering treatment
Material of roller 45# steel polished and coated with chrome HRC55-60°
Reducer 8# cycloid reducer (high grade)
Cutting hydraulic cutting after roll forming
Control system PLC Frequency Control System with touch screen





Guarantee



  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery



  FOB: Tianjin Xingang Port

  The Delivery Time: 60 working days after the down payment is received.
