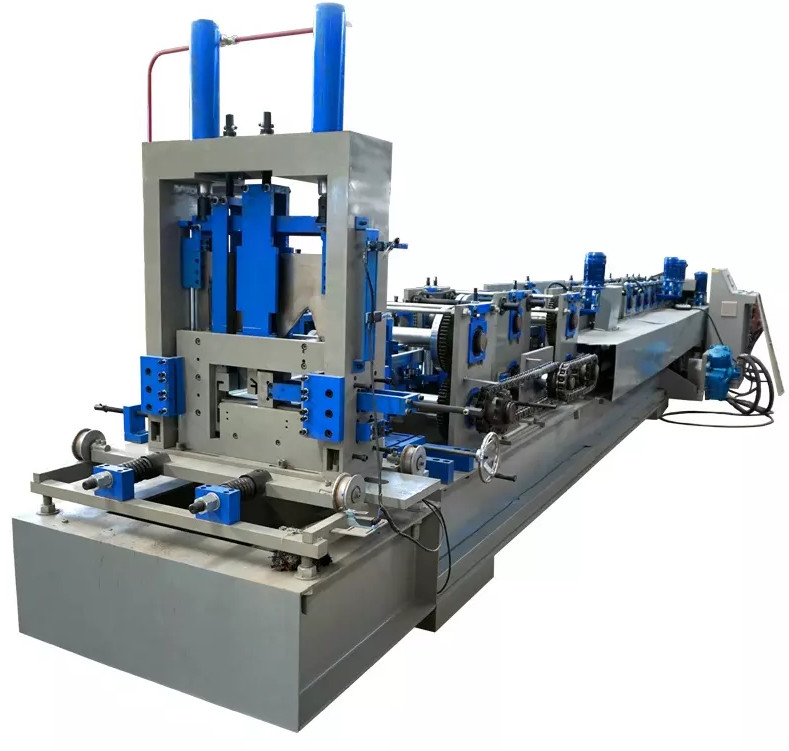

Automatic Cz Purlin Machine Size Change Type

Automatic Cz Purlin Machine Size Change Type
Automatic Cz Purlin Machine Size Change Type Automatic Cz Purlin Machine Size Change Type

Large Image :  Automatic Cz Purlin Machine Size Change Type

Product Details:
Place of Origin: China
Brand Name: FMS
Certification: CE,ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Automatic CZ Purlin Machine Automatic Size-Change Type Hydraulic Pump Station: 22kw
Voltage: 380V 50Hz 3phases Roller Material: High Grade 45# Steel
Weight: 7500KG Control System: PLC Computer
Electric Motor: 5.5kw Middle Plate: 20mm
High Light:

plc cz purlin machine

,

size change type cz purlin machine

,

plc cz purlin roll forming machine

Automatic CZ Purlin Machine Automatic Size-Change Type
     Automatic CZ Purlin Machine Automatic Size-Change Type.

Main features of automatic cz purlin roll forming machine:

   1.Produce different purlin size without changing rollers or spacers.

   2.No need changing cutter for different size.

   3.Easy operation, low maintenance cost

   4.Infinite sizing(any size within machine range),help to save material

   5.Optional Punch hole at any position of purlin web side and flange side


specifications



NO. Item Specification
Servo motor Hydraulic motor

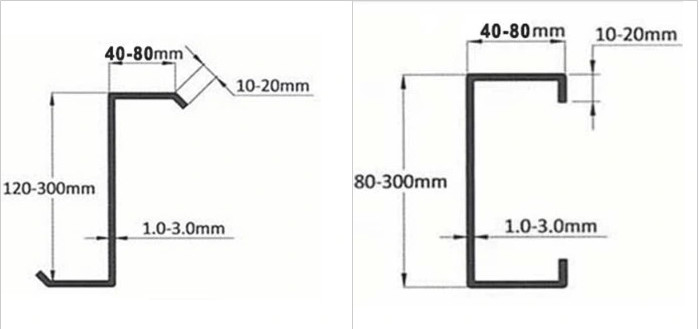

1 Thickness of material 1.0~3.0mm galvanized steel
2 Main motor power 22kw
3 Hydraulic pressure 16Mpa
4 Control system PLC panel control
5 Shaft material 40Cr(φ80mm)
6 Roller material GCr15
7 Forming speed 25~35m/min 16~20m/min
8 Hole punch & cutting Hydraulic 7.5kw
9 Decoiler Manual
10 Cutting blade material Cr12Mov
11 Roller station 22stations
12 Dimension of machine(L*W*H) 10m*1.35m*1.75m



Guarantee


   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



   40% in advance as down payment

   60% is paid before the shipment is processed



Delivery



   FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
