Product Details:
Payment & Shipping Terms:
|
| Product Name: | 0.6-1.5mm Steel Ribbed Panel Floor Decking Cold Roll Forming Machine Equipment | Forming Speed: | 10-12m/min |
|---|---|---|---|
| Roller Stations: | 28 Stations | Way Of Drive: | 1.2 Inch Single Chain |
| Main Motor Power: | 22Kw | Cutting System: | Automatic Hydyaulic Cutting |
| Voltage: | 380V 60 HZ Or Customized | Color: | Client's Request |
| High Light: | 0.6mm floor deck roll forming machine,ribbed floor deck roll forming machine,1.5mm deck floor roll forming machine |
||
0.6-1.5mm Steel Ribbed Panel Floor Decking Cold Roll Forming Machine Equipment
0.6-1.5mm Steel Ribbed Panel Floor Decking Cold Roll Forming Machine Equipment .Steel floor deck sheet is rolled by steel floor decking roll forming machine,the finished product are of many features,such as simple shape,large wave height,high intensity and good adhesiveness when pouring the concrete together with the welded steel wire net on-site,in the high story building,it not only can save steel mould board,but also reduce the bearing of the floor: on basis of equal capacity,it reduces the steel amount of engineering useage,so that it saves cost of investment.

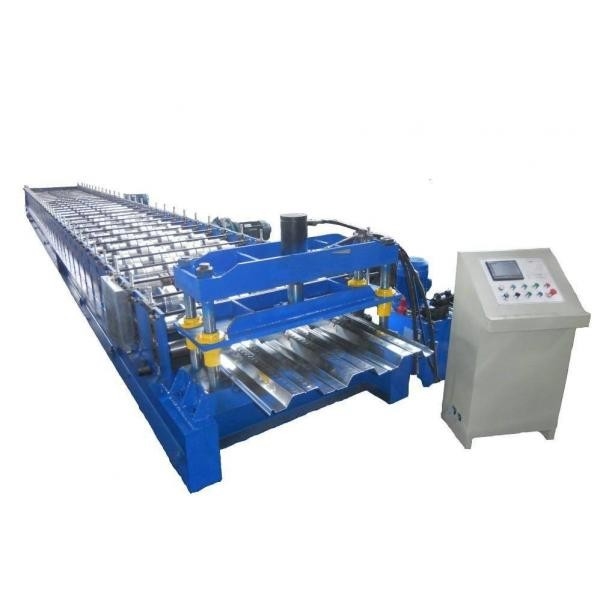

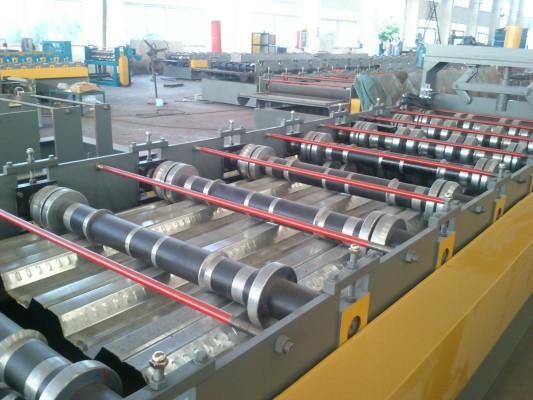

The steel floor deck roll foming machine consists of uncoiler and its base,infeed guides,fixed position driven forming stations,cutting device,hydraulic station,PLC control console and so on. We can design different kinds of profile and fitting for steel deck machine,as per customers’ requirements.
Specification
| Item NO | Name | Description |
| 1 | Total power |
Motor power-22kw with cycloidal reducer Hydraulic power-7.5kw |
| 2 | Rows of rollers | 28 rows |
| 3 | Productivity | 10-12m/min |
| 4 | Diameter of shaft | 95mm |
| 5 | Voltage | 380V 50Hz 3Phases |
| 6 | Machine body | H-model Steel |
| 7 | Shafts | 45# steel quenching treatment |
| 8 | Rollers | Gcr15 forge steel, coated with chrome |
| 9 |
Width of the raw material/ feeding width |
1000mm |
| 10 | Effective width | 688mm |
| 11 | Electrical Control System | Panasonic Japan |
| 12 | Cutting accuracy | 1.5mm |
| 13 | Hydraulic Station Pressure | 12Mpa |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
