Name: Metal Steel 380v60hz Galvanized Floor Deck Roll Forming Machine Hydraulic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Floor Deck
Price: 26,500.00 USD
Availability: InStock

Home > products > Floor Deck Roll Forming Machine >

Metal Steel 380v60hz Galvanized Floor Deck Roll Forming Machine Hydraulic Cutting

380v60hz floor deck roll forming machine

galvanized floor deck roll forming machine

hydraulic cutting deck roll former

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Model Number:

Floor Deck

Request A Quote

Product Details

Product Name:

Metal Floor Deck Steel Roll Forming Machine Hydraulic Cutting

Production Capacity:

8-15meter/min

Weight:

Dimension(L*W*H):

8m*13m*1.25m

Power:

3KW

Cutting System:

Automatic Hydyaulic Cutting

Voltage:

380V 60 HZ Or Customized

Color:

Client's Request

Highlight:

380v60hz floor deck roll forming machine

galvanized floor deck roll forming machine

hydraulic cutting deck roll former

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

40' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Get Best Price

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Get Best Price

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Get Best Price

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Get Best Price

86-317-2016816

Contact Now

Product Description

Metal Floor Deck Steel Roll Forming Machine Hydraulic Cutting

Metal Floor Deck Steel Roll Forming Machine Hydraulic Cutting.The floor deck panel produced by high tensile floor decking steel roll forming machine is widely used on the construction building because of its high pitches and strong strength .It includes manual decoiler , main roll forming machine (safety guard optional) , Hydraulic cutting system ,PLC control system , output table .

Specification

Type		specification
1	Row Material	Type	Color steel plate, galvanized plate, aluminum plate
		Feeding width	1220mm
		Thickness	0.8-1 mm
		Effiect width	1000mm
2	Main body	Forming roller station	26 Stations
		Diameter of shaft	90mm
		Shaft material	40Cr, Numerical Control Machining To HRC28-32, Then Polishing and Hard Plating
		Roller material	GCr15# Steel , Heat Treatment to HRC58-60,Then Polishing and Hard Plating
		frame	400mm H Steel
		Frame thickenss	20mm
		Working speed	8-12 m/min
		Size (LWH)	About 1520018501510mm
		Weight	About 16.5 tons
3	Power	Motor power	11KW+11KW
		Hydraulic power	5.5KW
		Voltage	380V 50Hz 3phases or Customerization
		Drving Way	By Chain
4	PLC Contro System	Language	English and Chinese
		Brand Of PLC	Delta brand (Touch Screen )
		Operation	Manual and Automatic (Two Type)
		Transducer	Delta brand
5	Cutting Device	Cutting Type	Hydraulic Cutting
		Blade of Cutting	Cr12 , quenching treatment
		Cutting Tolerance	+ -1mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

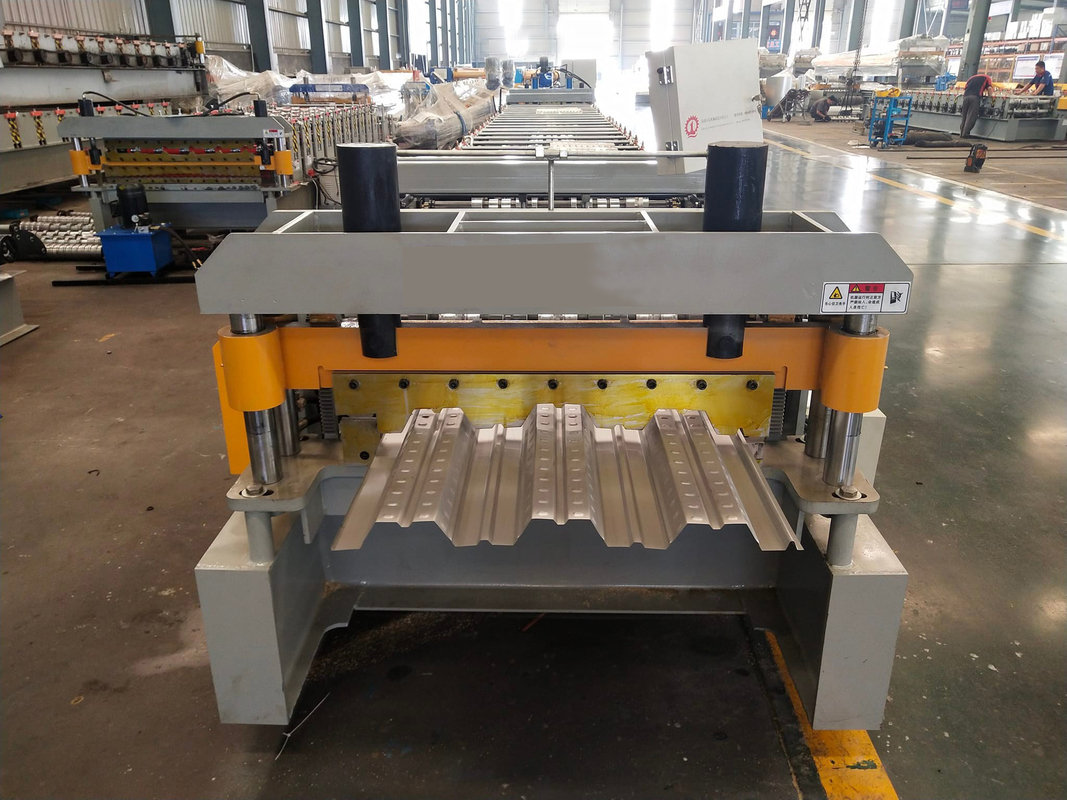

Metal Steel 380v60hz Galvanized Floor Deck Roll Forming Machine Hydraulic Cutting 0
