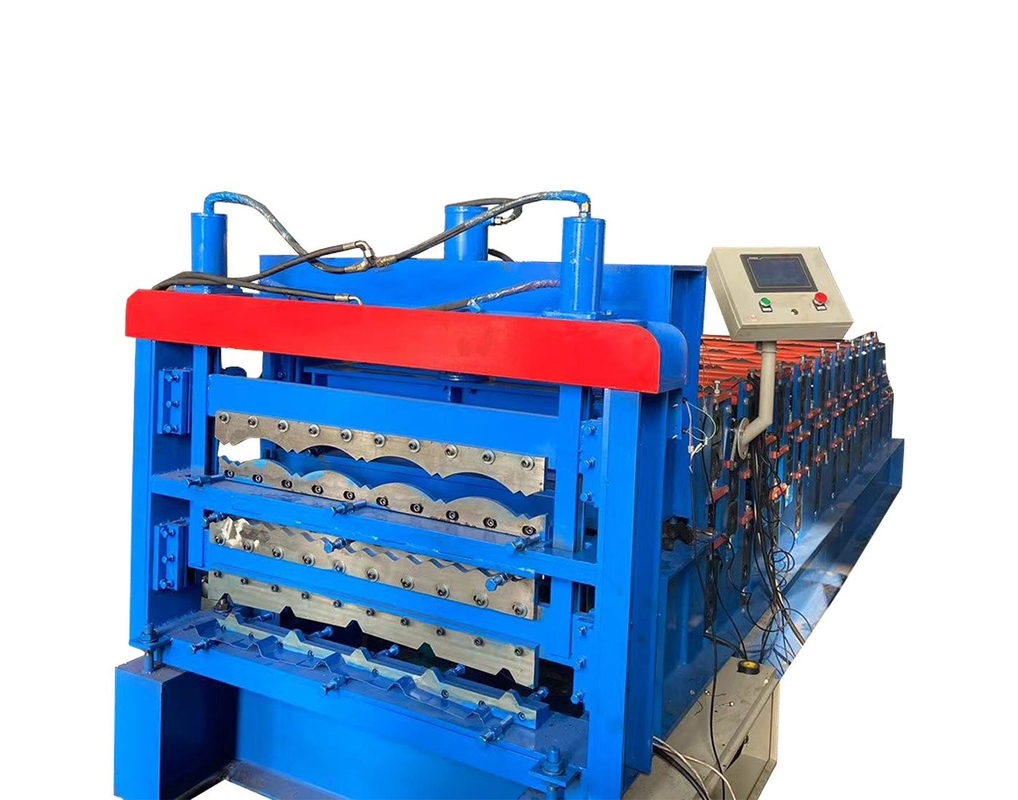

0.8mm Three Layer Roll Forming Machine Ibr Corrugated And Glazed Tile

0.8mm Three Layer Roll Forming Machine Ibr Corrugated And Glazed Tile
0.8mm Three Layer Roll Forming Machine Ibr Corrugated And Glazed Tile 0.8mm Three Layer Roll Forming Machine Ibr Corrugated And Glazed Tile

Large Image :  0.8mm Three Layer Roll Forming Machine Ibr Corrugated And Glazed Tile

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Model Number: Met Tile / Glazed Tile
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 35 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Three Layer Roll Forming Machine Ibr Corrugated And Glazed Tile Tile Type: Colored Steel
Voltage: 380V 50HZ 3 Phase Or Other Core Components: Motor, Pump, PLC
Machine Power: 5.5kw+3kw Working Speed: 10m--15m/Min(Exclude Cutting Time)
Cutting System: Hydraulic Cutting System After Forming Key Selling Points: Long Service Life
Rolling Thinckness: 0.3-0.8mm
High Light:

0.8mm three layer roll forming machine

,

corrugated three layer roll forming machine

,

3layer glazed tile roll forming machine

Three Layer Roll Forming Machine Ibr Corrugated And Glazed Tile

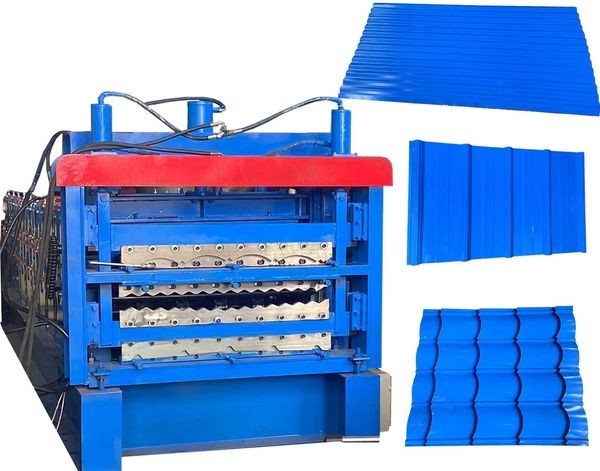

   Three Layer Roll Forming Machine Ibr Corrugated And Glazed Tile is mainly producing steel roof/ wall sheet .The final products have three types, corrugated sheet and trapezoidal sheet and glazed tiles.IBR Roofing Sheet Iron Steel Corrugated Roof Sheeting Metal Double Layer Tile Roll Forming Machine is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 1000mm, thickness range is from 0.3mm to 0.8mm. We adopt 16mm side wall panel type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.

Processing flow diagram of machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table



Specification


Product Name Three Layer Roll Forming Machine Ibr Corrugated And Glazed Tile
Main motor power 5.5 kw
Drive 1'' single chain
Type: Wall board
Main shaft dia ¢70mm
material 45# forge steel and quenched
Roller material 45# high grade forge steel ,chrome coated 0.05mm
Raw material 0.3-0.8mm
Coil width 1000mm
Working speed 10m--15m/min(Exclude cutting time)
Length Tolerance ±1.5mm
Weight of machine About 6 ton
Size of machine About 6500×1800×1500mm L x W x H
Color of machine Yellow and Blue
Control PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel touching screen
Cutting Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power 3KW
Blade material Cr12mov,quenched 58°-62°
Working pressure 16mpa
Cutting tolerance +/- 1.0mm




   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.Guarantee



   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery



  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
