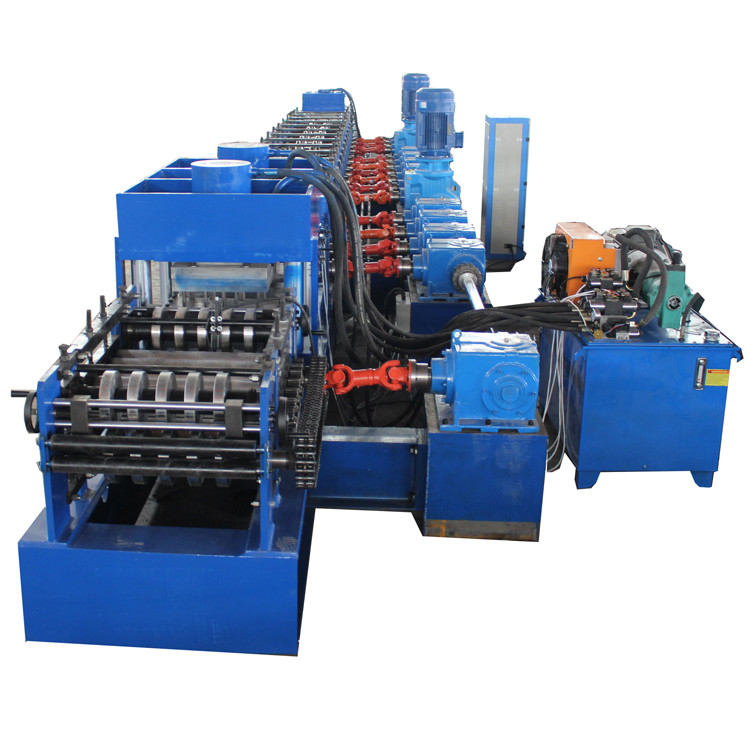

Highway Beam Roll Guardrail Forming Machine W Beam Crash Barrier Chain Drive

Highway Beam Roll Guardrail Forming Machine W Beam Crash Barrier Chain Drive
Highway Beam Roll Guardrail Forming Machine W Beam Crash Barrier Chain Drive Highway Beam Roll Guardrail Forming Machine W Beam Crash Barrier Chain Drive

Large Image :  Highway Beam Roll Guardrail Forming Machine W Beam Crash Barrier Chain Drive

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 50 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Highway Beam Guardrail Roll Forming Machine W Beam Crash Barrier Specification: 13.0*1.6*1.2m
Forming Stations: According To You Profile Drawings Rollers Material: GCr15,Cr12,SKD11 Quenching Treatment:HRC58-62(optional)
Voltage: 380V.50HZ.3Phase Control: PLC
Way Of Drive: Chain Drive,Gearbox Drive(optional) Raw Material Request: Cold Rolled Or Hot Rolled Steel,galvanized Steel,SS316L/Mild Steel
High Light:

highway beam roll guardrail forming machine

,

chain drive guardrail forming machine

,

chain drive guardrail roll forming machine

Highway Beam Guardrail Roll Forming Machine W Beam Crash Barrier



    Highway Beam Guardrail Roll Forming Machine W Beam Crash Barrier

Processes: Hydraulic de-coiler-Leveling device--Punching station--Roll forming machine-PLC system-Hydraulic system-Cutter-Output table



    highway road guardrail W shape bumpls road barrier making machine cold roll forming.Highway Guardrail plate is mainly used in national high-speed railway, highway road reconstruction projects and industrial hardware products and other industries. When subjected to external forces, the deformation of guardrail plate and column can absorb impact force to protect pedestrians and vehicles.Is a common road safety emergency protection facilities.



Specification



Highway Beam Guardrail Roll Forming Machine W Beam Crash Barrier
1 Raw material request cold rolled or hot rolled steel,galvanized steel,SS316L/Mild Steel
2 Effective width 310mm
3 Roller station 17 rows forming
7 roller leveling
4 Thickness of feeding material 2.0-2.5 mm
5 Productivity 8-12m/min
6 Rollers' material 45# forging steel
7 Diameter of shaft 100mm
8 Cutting tool material: GCr12 with quenched treatment 60-62°C
9 Weight About 6.9T
10 Size 13.5*1.85*1.6mm
11 Voltage 380V 50Hz 3phases
12 Wall thickness of main forming machine 14mm steel plate
13 Main forming machine body 300 mm H steel
14 Total power 22+11 kw
15 Leveling power 2.2 kw





Guarantee



  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery



  FOB: Tianjin Xingang Port

  The Delivery Time: 60 working days after the down payment is received.
